Controls, Connectors, and Indicators
®
Word
Connects the 17 -Bit Word Recognizer Probe to the
Recognizer instrument, only with the available
WR
(Option 09), or
Probe
supplies conditioned dc voltages to active probes, only
Connector or
with Option 11.
Probe Power
Connector
@
WORD Provides a LSTTL-compatible, positive-going pulse
RECOG OUT when the Word Recognizer detects the selected word,
Connector or only with the available
WR
(Option 09), or supplies
Probe Power conditioned dc voltages to active probes, only with
Connector
Option 11.
®
GPIB
Provides the IEEE Std 488-1978 compatible electrical
Connector
and mechanical connection to the GPIB.
6014-08

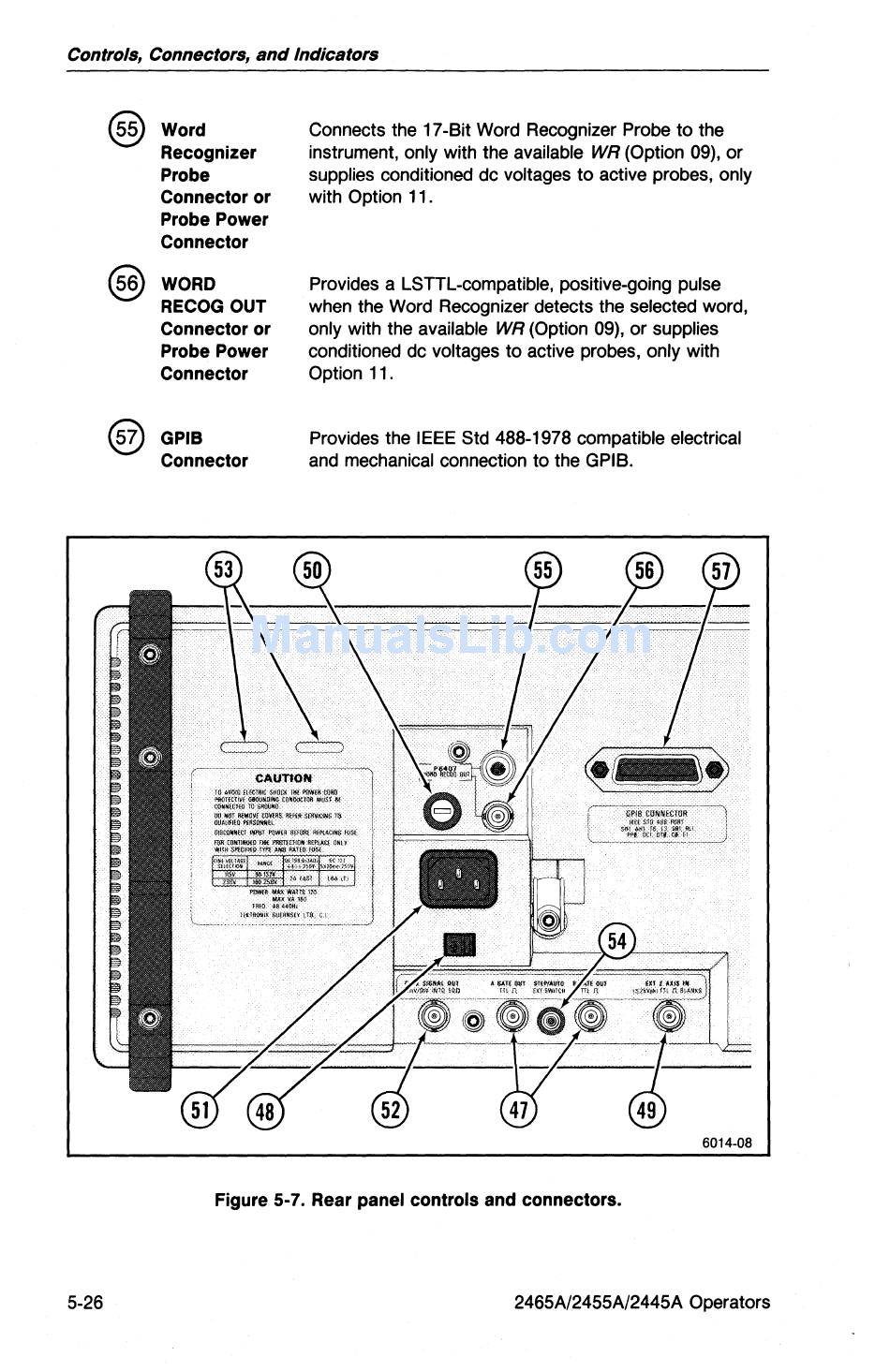

Figure
5-7_
Rear panel controls and connectors.
5-26 2465A/2455A/2445A Operators
