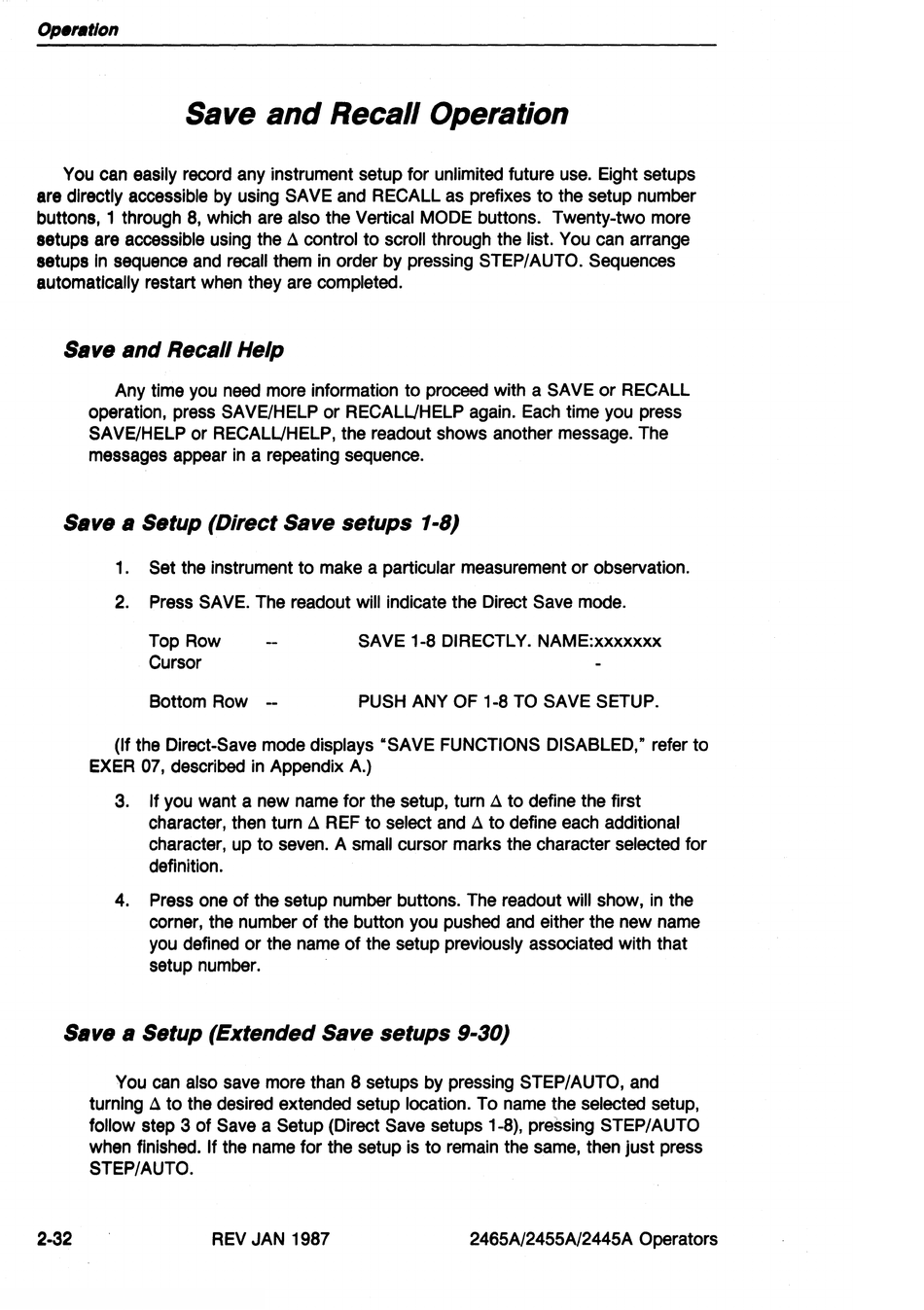

Save and Recall Operation
You can easily record any instrument setup for unlimited future use. Eight setups
are directly accessible by using SAVE and RECALL as prefixes to the setup number
buttons, 1 through 8, which are also the Vertical MODE buttons. Twenty-two more
setups are accessible using the
~
control to scroll through the list. You can arrange
setups In sequence and recall them in order by pressing STEP/AUTO. Sequences
automatically restart when they are completed.
Save and Recall Help
Any time you need more information to proceed with a SAVE or RECALL
operation, press SAVE/HELP or RECALl/HELP again. Each time you press
SAVE/HELP or RECALl/HELP, the readout shows another message. The
messages appear in a repeating sequence.
Save
a
Setup (Direct Save setups 1-8)
1. Set the instrument to make a particular measurement or observation.
2. Press SAVE. The readout will indicate the Direct Save mode.
Top Row
Cursor
Bottom Row --
SAVE 1-8 DIRECTLY. NAME:xxxxxxx
PUSH ANY OF 1-8 TO SAVE SETUP.
(If the Direct-Save mode displays ·SAVE FUNCTIONS DISABLED," refer to
EXER 07, described in Appendix A)
3. If you want a new name for the setup, turn
~
to define the first
character, then turn
~
REF to select and
~
to define each additional
character, up to seven. A small cursor marks the character selected for
definition.
4. Press one of the setup number buttons. The readout will show, in the
corner, the number of the button you pushed and either the new name
you defined or the name of the setup previously associated with that
setup number.
Save
a
Setup (Extended Save setups 9-30)
2-32
You can also save more than 8 setups by pressing STEP/AUTO, and
turning
~
to the desired extended setup location. To name the selected setup,
follow step 3 of Save a Setup (Direct Save setups 1-8), pressing STEP/AUTO
when finished. If the name for the setup is to remain the same, then just press
STEP/AUTO.
