Performance Characteristics

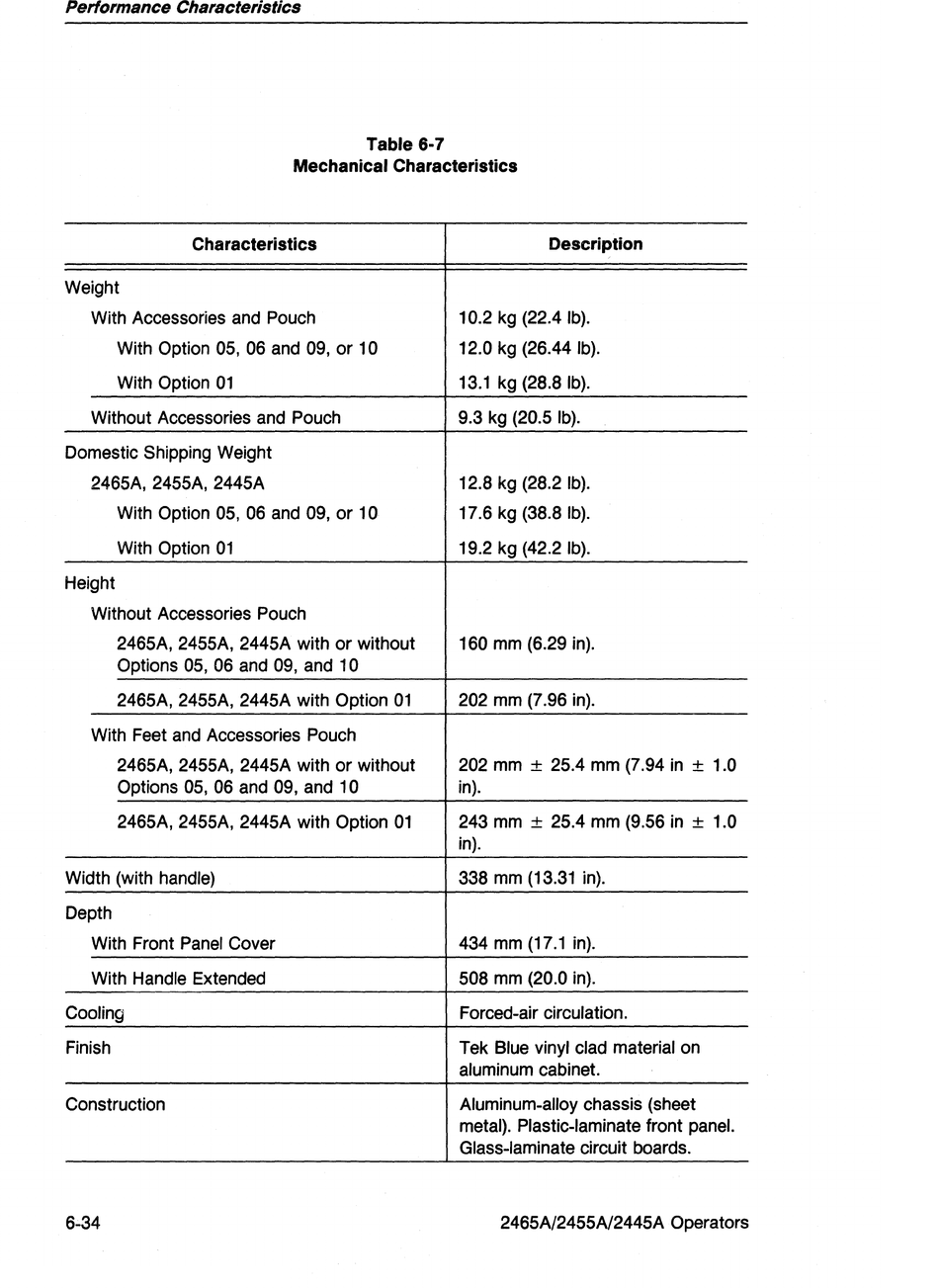

Table 6-7
Mechanical Characteristics
Characteristics
Description
Weight
With Accessories and Pouch 10.2 kg (22.4 Ib).
With Option 05, 06 and 09, or 10 12.0 kg (26.44 Ib).
With Option 01 13.1 kg (28.8 Ib).
Without Accessories and Pouch
9.3 kg (20.5 Ib).
Domestic Shipping Weight
2465A,2455A,2445A 12.8 kg (28.2 Ib).
With Option 05, 06 and 09, or 10 17.6 kg (38.8 Ib).
With Option 01 19.2 kg (42.2 Ib).
Height
Without Accessories Pouch
2465A, 2455A, 2445A with or without 160 mm (6.29 in).
Options 05, 06 and 09, and 10
2465A, 2455A, 2445A with Option 01
202 mm (7.96 in).
With Feet and Accessories Pouch
2465A, 2455A, 2445A with or without
202 mm
±
25.4 mm (7.94 in
±
1.0
Options 05, 06 and 09, and 10 in).
2465A, 2455A, 2445A with Option 01 243 mm
±
25.4 mm (9.56 in
±
1.0
in).
Width (with handle) 338 mm (13.31 in).
Depth
With Front Panel Cover 434 mm (17.1 in).
With Handle Extended
508 mm (20.0 in).
Cooling
Forced-air circulation.
Finish
Tek Blue vinyl clad material on
aluminum cabinet.
Construction
Aluminum-alloy chassis (sheet
metal). Plastic-laminate front panel.
Glass-laminate circuit boards.
6~34
2465A/2455A/2445A Operators
