Performance Characteristics

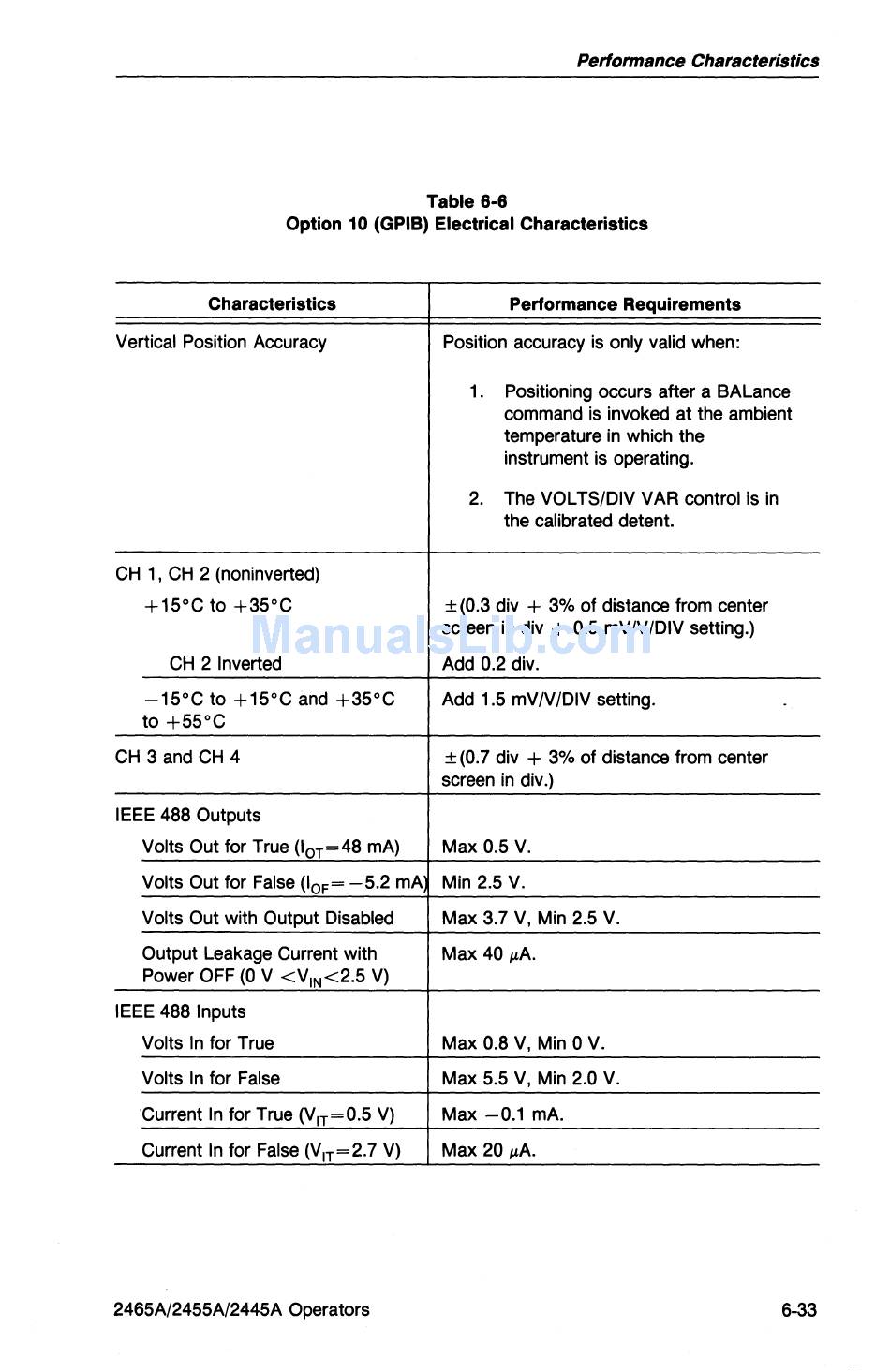

Table 6-6
Option 10 (GPIB) Electrical Characteristics
Characteristics Performance Requirements
Vertical Position Accuracy Position accuracy is only valid when:
1. Positioning occurs after a BALance
command is invoked at the ambient
temperature in which the
instrument is operating.
2. The VOL TS/DIV VAR control is in
the calibrated detent.
CH 1, CH 2 (noninverted)
+15°C to +35°C
± (0.3 div + 3% of distance from center
screen in div + 0.5 mV/V/DIV setting.)
CH 2 Inverted Add 0.2 div.
-15°C to +15°C and +35°C Add 1.5 mV/V/DIV setting.
to +55°C
CH 3 and CH 4
±(0.7 div + 3% of distance from center
screen in div.)
IEEE 488 Outputs
Volts Out for True (loT=48 mAl Max 0.5 V.
Volts Out for False (loF= -5.2 mA Min 2.5 V.
Volts Out with Output Disabled Max 3.7 V, Min 2.5 V.
Output Leakage Current with Max 40 pA
Power OFF (0 V <VIN<2.5 V)
IEEE 488 Inputs
Volts In for True
Max 0.8 V, Min 0 V.
Volts In for False Max 5.5 V, Min 2.0 V.
Current In for True (V 1T =0.5 V)
Max -0.1 mA.
Current In for False (VIT=2.7 V) Max 20 /lA.
2465A/2455A/2445A Operators
6-33
