Project 153

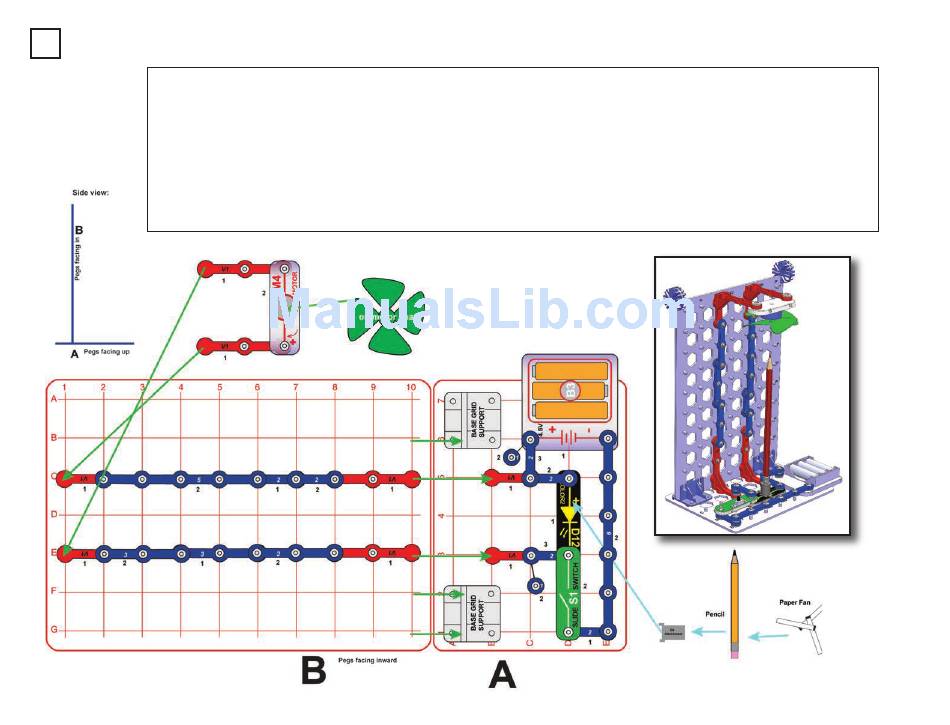

Assembly :
1. Place base grid supports on base grid A.
2. Place parts on grids B, then install grid B on base grid
supports on grid A. The pegs must be pointed inward.
3. Install grid C onto grid B using 2 stabilizers, connecting the 2
vertical snap wires (V1) as you do it.
4. Place the remaining parts on grids A & C. Place the mounting
base on the color2 LED (D12) base but not around the actual,
LED as shown.
-85-

Downdraft

4. Assemble the pencil fan per the instructions on the following
page.
5. Install a pencil into the mounting base, then place type A fan
on the pencil tip.
Turn on the slide switch (S1); as the green fan blows, the paper
fan should start to spin clockwise. You may need to adjust the
pencil slightly. If the paper strips hit the wall when spinning then
cut them shorter.
