Quiet Chandelier Circuit - Elenco Electronics SC3DMEG Instruction Manual

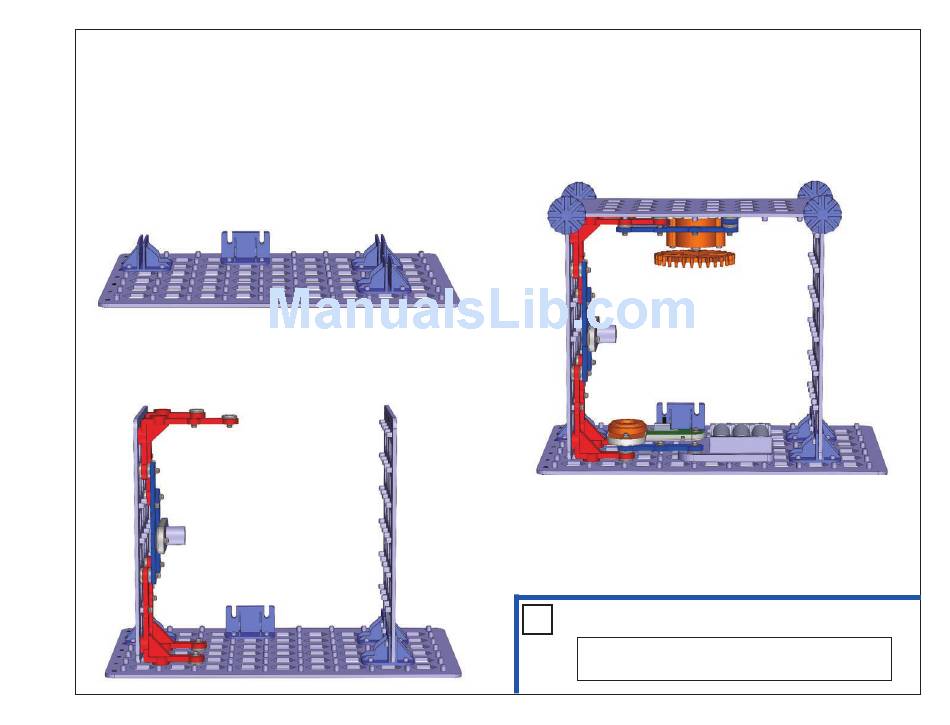

Assembly:
1. Place base grid supports on base grid A.
2. Place parts base grid B, then install grids B & D into base grid
supports on grid A. The pegs on grid B must be pointed inward. Any
of the mini grids can be the two-sided grid.
3. Attach the large gear to the gear insert, place it on the orange motor
(M9) and secure it with the screw.
4. Place the orange motor on grid C, then mount grid C on top of grids
B & D using 4 stabilizers.
5. Place the remaining parts on grids A & C.
Turn on the slide switch (S1) to spin the large gear, light the lamp (L4),
and play a melody.
Project 55
Use the preceding circuit, but remove the melody IC (U32),
or replace it with one of the LEDs (D9, D11, or D12).

Quiet Chandelier Circuit
