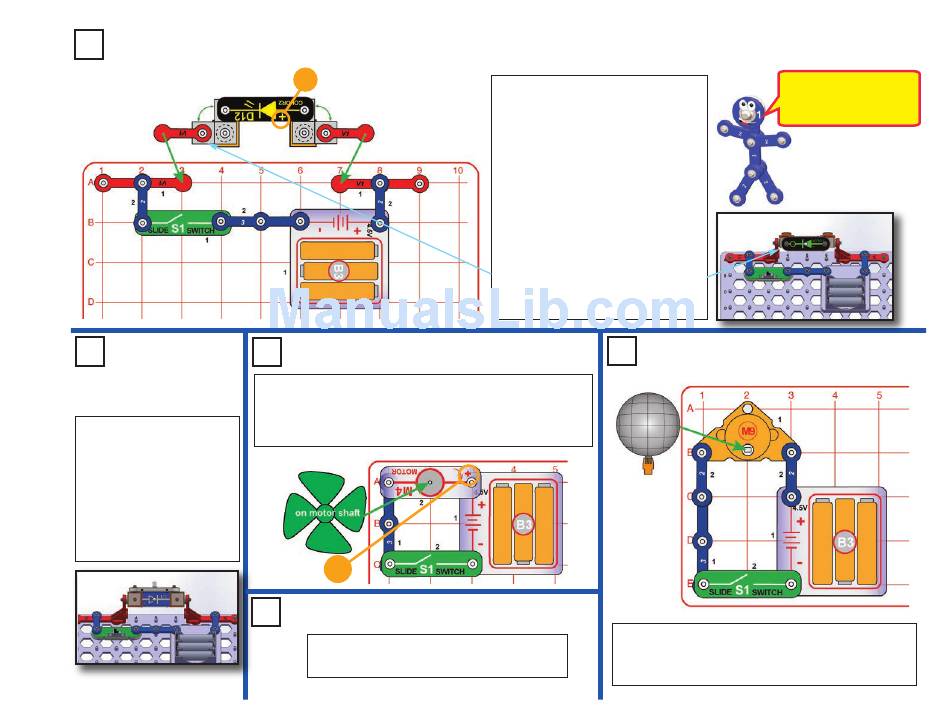

Project 7
Project 8
Rotation
Lights
Build the circuit and place the wind fan on the clear motor
(M4). Turn on the slide switch (S1) to spin the fan. Place
your hand near the fan without touching it, and you can feel
Use the preceding circuit
air being blown up towards you.
but add a second light
(blue LED (D9), blink red
LED (D11), or lamp (L4)) to
the female snaps on the
3D snaps, as shown. The
"+" side of the LEDs should
be oriented to the right.
+
Project 9
+
Project 10

Suction Fan

Use the preceding circuit but reverse the clear
motor (M4). Now the fan sucks air downward.

Rotation Light

Build the circuit as shown; it has
two 3D snaps mounted on two 90
degree vertical snap wires (V1),
and then the color2 LED (D12) is
mounted on the 3D snaps.
Turn on the circuit and the color2
LED lights. Rotate the LED to any
position.
You can replace the color2 LED
with the blue LED (D9), blink red
LED (D11), or lamp (L4).
Note: if the LED assembly fit seems
loose, add a 1-snap wire between
one of the 3D snaps and a V1.
Project 11
Fan
Build the circuit and place the mirror ball on the
orange motor (M9). Turn on the slide switch (S1) to
spin the mirror ball.
The 3D snaps enable
you to rotate a light to
any position.

Mirror Ball

-16-
