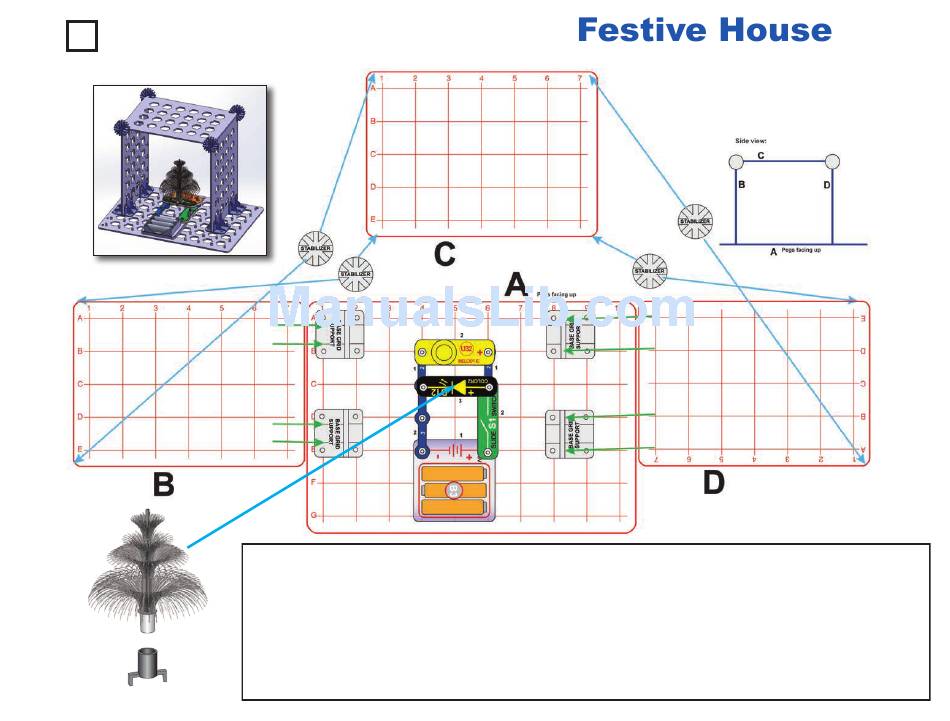

Project 20
Assembly:
1. Place base grid supports on base grid A.
2. Install grids B & D into base grid supports on grid A. The pegs can be pointed in either direction.
3. Mount grid C on top of grids B & D using 4 stabilizers.
4. Place the remaining parts on grid A. Place the fiber optic festive tree on the color2 LED (D12) using the mounting base.
Turn on the slide switch (S1) to light the color2 LED and play a tune on the melody if (U32). This circuit looks best in a dark
room. The melody IC may be removed if desired.
-22-
