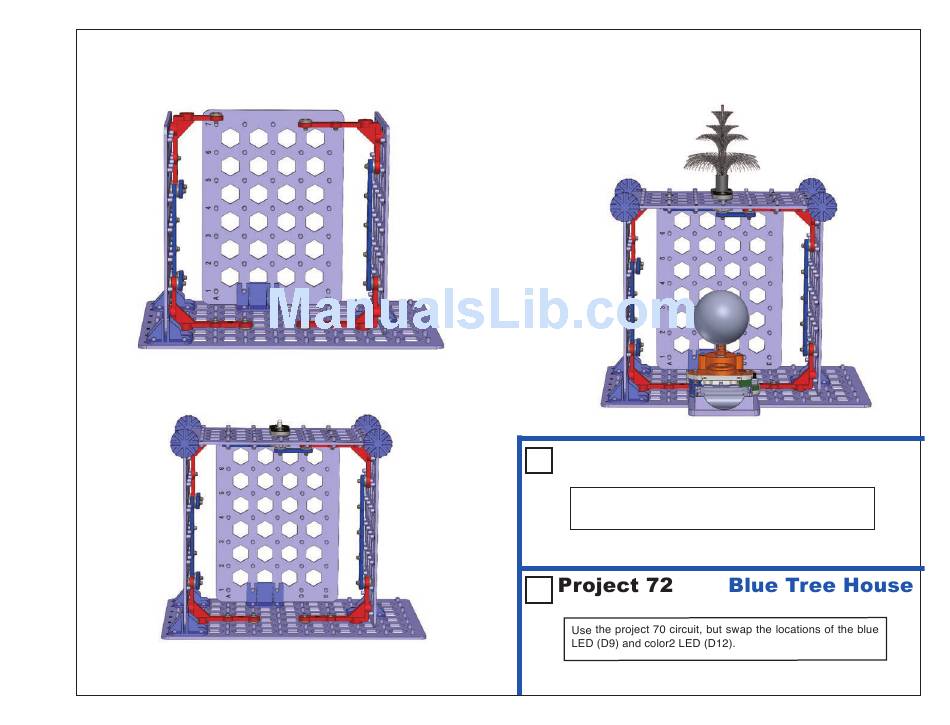

Assembly (adult supervision recommended):
1. Place base grid supports on base grid A.
2. Place parts base grids B & D, then install grids B, C, & D into base grid supports
on grid A. The pegs must be pointed inward. Do not use the two-sided grid.
3. Place the blue & color2 LEDs (D9 & D12) on grid E, then mount grid E on top
of grids B & D using 4 stabilizers, attaching the two 90 degree vertical snap
wires (V1) as you do it. Grid E must be the two-sided grid. Place the remaining
parts on grid E.
4. Place the remaining parts on grid A .Mount the mirror ball on the orange motor (M9),
and mount the fiber optic festive tree on the color2 LED using the mounting base.
Turn on the slide switch (S1). The blue LED shines on the spinning mirror ball,
the color2 LED lights up the festive tree, and the melody IC (U32) plays music.
For best effects place the circuit in a dark room.
Project 71

Brighter Tree House

Use the preceding circuit, but replace the blue LED (D9)
with the lamp (L4).
