Project 33
Note: If the LED
assembly fit seems tight,
remove this 1-snap wire.

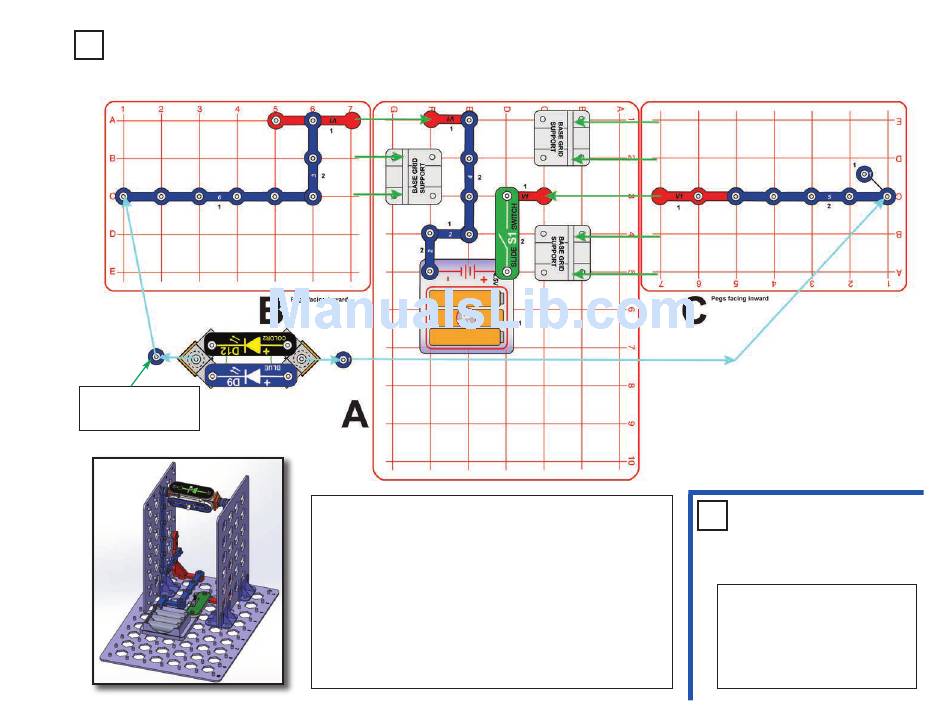

Assembly (adult supervision recommended):
1. Place base grid supports on base grid A.
2. Mount parts on grids B & C, and install in base grid supports in
grid A. The pegs should be facing inward.
3. Place remaining parts on grid A.
4. Mount the blue & color2 LEDs (D9 & D12) to the 3D snaps,
connect 1-snap wires on both sides, and attach to the parts on grids
B & C, as shown. The "+" side of the LEDs should be towards grid C.
Turn on the slide switch (S1). The color2 and blue LEDs light; rotate
them to any position. The circuit looks best in a dimly lit room.

Any Angle LEDs

Project 34
Any Angle LEDs
Use the preceding circuit but
replace the blue or color2 LEDs
with the blink red LED (D11),
lamp (L4), or melody IC (U32"+"
on right). You may also remove
one of the lights.
Variants
-26-
