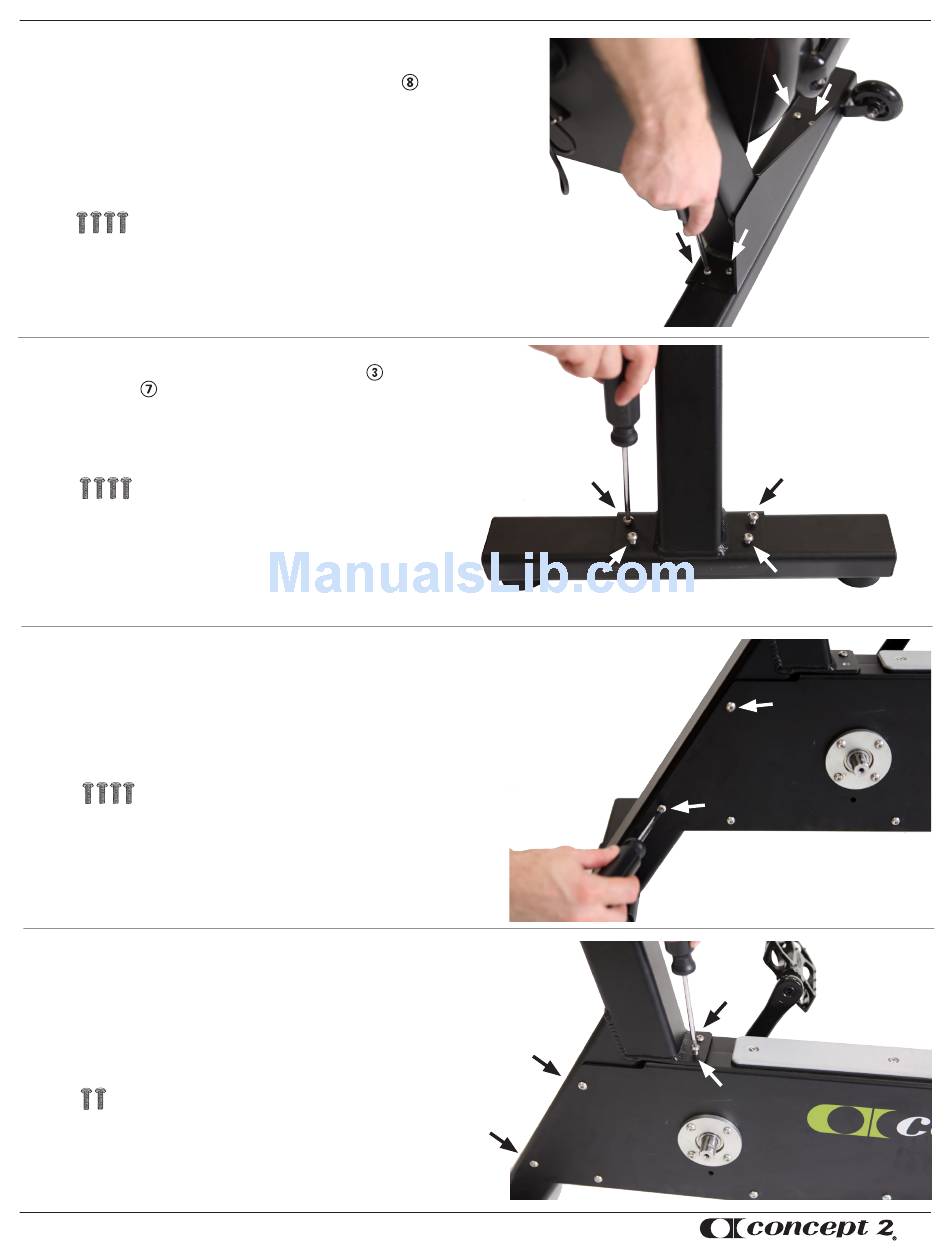

Concept2 BikeERG Assembly Instructions page 3

3
Orient the box frame assembly with the front leg in its
upright position. Attach the front foot with casters
put the Box Frame Assembly with front leg in its upright
position using four fasteners. Finger tighten each before
tightening fully.
(4) 3/4" (1.9 cm)
PN 1201
4
Attach the rear leg with seat post and saddle
rear foot using four fasteners. Finger tighten each
before tightening fully.
(4) 3/4" (1.9 cm)
PN 1201
5
Attach the rear leg with foot assembly to the box frame using
four fasteners (two fasteners per side). Finger tighten only. These
fasteners will be tightened fully in step 6.
(4) 3/4" (1.9 cm)
PN 1201
6
Insert two fasteners on the top tab of the rear leg and tighten fully.
Fully tighten fasteners attaching the rear leg with foot assembly to
the box frame inserted in step 5.
(2) 3/4" (1.9 cm)
PN 1201
