Tighten Both Adjustment Knobs. - Concept2 BikeERG Assembly Instructions

10

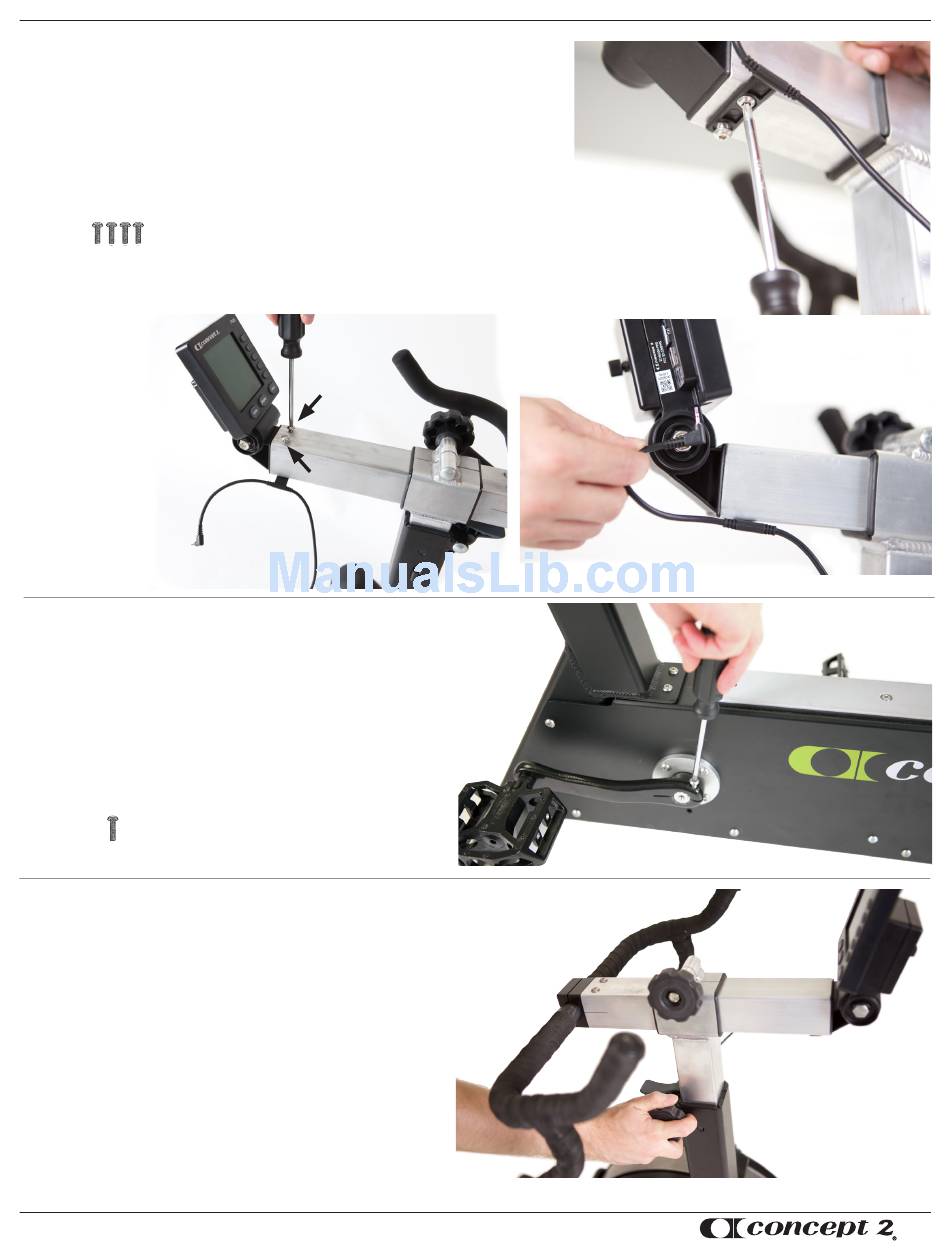

Insert two fasteners through the monitor cable tab and into
the bottom of the handlebar stem as shown in photo A. Do not
tighten screws completely. Insert two fasteners into the top of the
handlebar stem as shown in photo B. Plug in the monitor cable to
the PM5 as shown in photo C. Tighten all fasteners.
(4) 3/4" (1.9 cm)
PN 1248
Note: Be sure to use the four fasteners without patch.
B.
11
Remove the preinstalled 1" fastener from the right crank
arm with pedal. Then, attach the crank arm with pedal using
the same 1" fastener. Tighten fully. After five hours of use,
check the fasteners on both crank arms and be sure they are
fully tightened. These fasteners MUST be fully tightened to
prevent the crank arms from coming loose.
(1) 1" (2.54 cm)
PN 1247
12
Tighten both adjustment knobs. Refer to the BikeErg
Product Manual for more information on handlebar and
seat adjustments.
The machine should be used on a stable, level surface.
The BikeErg should be approximately level. The rear foot
has leveling pads that can be adjusted as needed.
