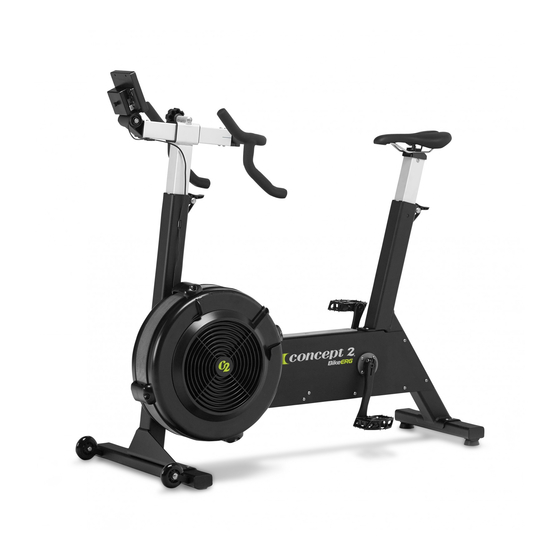

Concept2 BikeERG Assembly Instructions
Hide thumbs
Also See for BikeERG:
- User manual ,
- Product manual (28 pages) ,
- Assembly instructions manual (12 pages)
Related Manuals for Concept2 BikeERG
Summary of Contents for Concept2 BikeERG

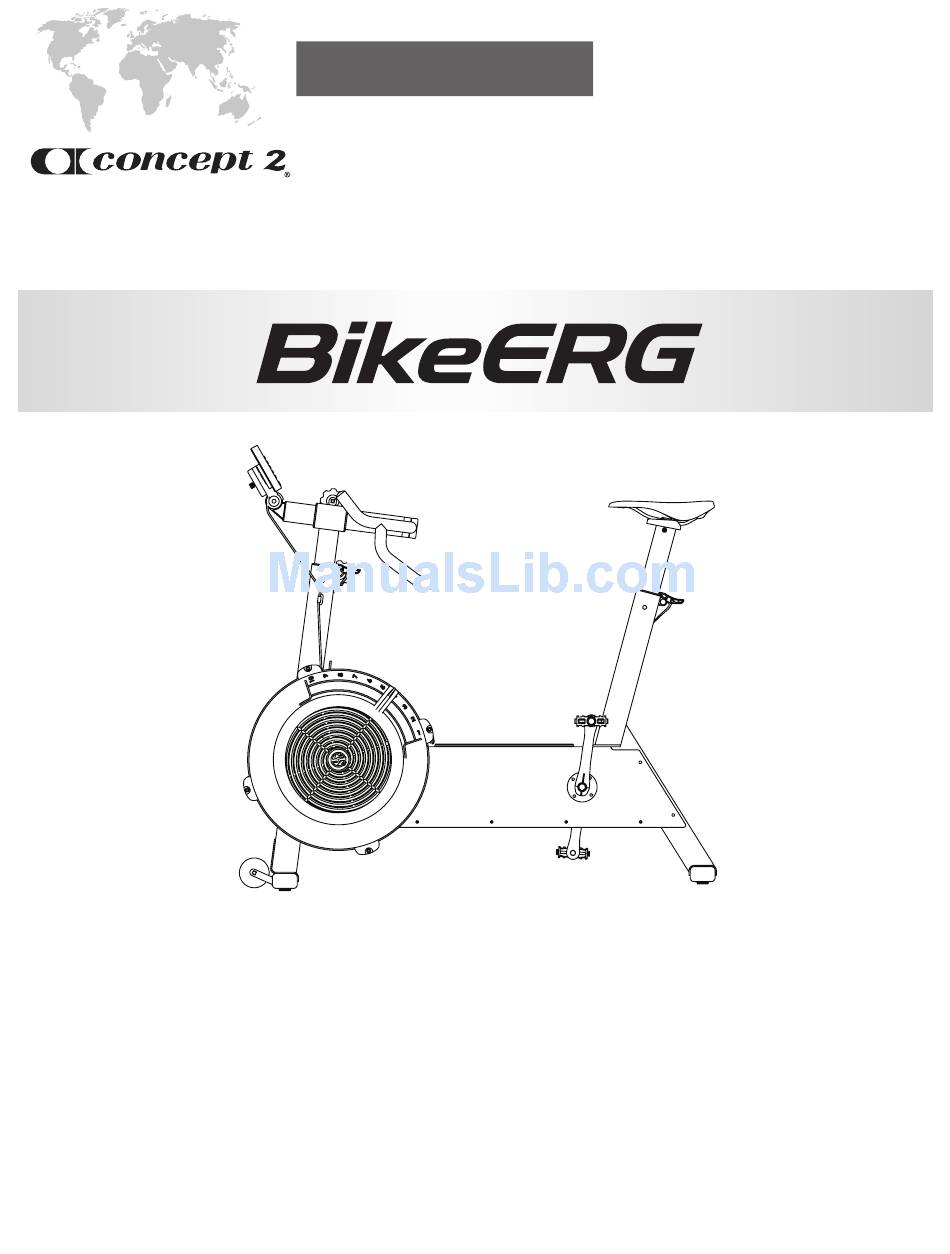

- Page 1 ASSEMBLY INSTRUCTIONS BikeErg weight: 58 lb (26 kg) Space required for use (training area): 48 in x 60 in (122 cm x 152 cm) Questions? Comments? Problems? Contact Concept2 directly at 800.245.5676 (U.S. and Canada) or visit us at: concept2.com...
- Page 2 BikeErg Assembly Instructions Lay out all parts as shown. 1. Box frame assembly 2. Crank arm with pedal 3. Rear leg with seat post and saddle 4. Handlebar assembly 5. Front leg with handlebar post 6. Performance Monitor 5 (PM5) 7.
- Page 3 Orient the box frame assembly with the front leg in its upright position. Attach the front foot with casters put the Box Frame Assembly with front leg in its upright position using four fasteners. Finger tighten each before tightening fully. (4) 3/4”...
- Page 4 BikeErg Assembly Instructions Insert the handlebar assembly into the handlebar post. Insert the PM5 into the handlebar stem. Do not insert any fasteners at this point until step 10. Thread the monitor cable through the cable clip on the front leg.
- Page 5 Tighten both adjustment knobs. Refer to the BikeErg Product Manual for more information on handlebar and seat adjustments. The machine should be used on a stable, level surface. The BikeErg should be approximately level. The rear foot has leveling pads that can be adjusted as needed. 0817...
