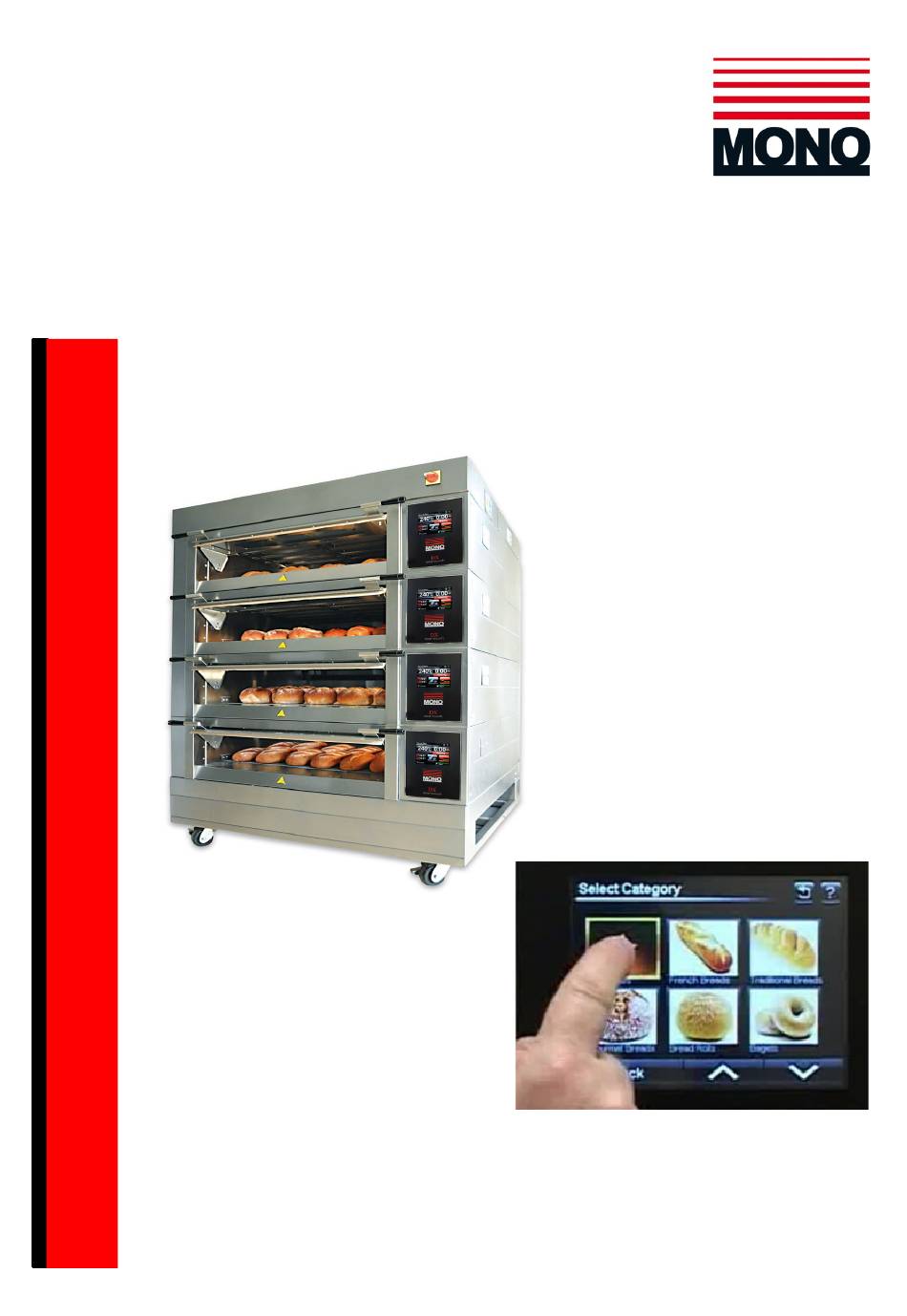

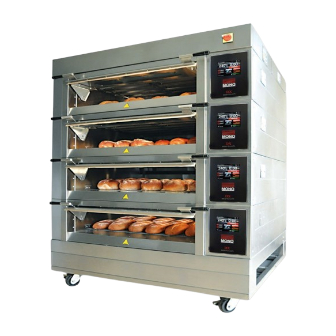

- Page 1 MonoEquip.com MONO Harmony Deck Oven Quick Start Guide Product Version USA specification Modular decks ECO Touch controller eco-touch control © 2023, MONO Equipment Limited FG257-US-QSG-001 | Rev. A23 (Aug 2023)
-
Page 2: Warning And Information Labels
Quick Start Guide Mono Harmony Deck Oven (FG257 USA) Warning and Information Labels Warning label, to reduce risk of fire or electric shock. Do not remove the cover (or back). No user serviceable parts inside. Repair should be done by authorized personnel only. -
Page 3: Safety Symbols
MONO Harmony Deck Oven (FG257 USA) Quick Start Guide Safety Symbols The following safety symbols are used throughout this product manual. Before using your new equipment, read the instructions carefully and pay special attention to the information marked with the following symbols:... -
Page 4: Electrical Safety Notice
Quick Start Guide Mono Harmony Deck Oven (FG257 USA) Electrical Safety Notice Electrical safety and advice regarding supplementary electrical protection Commercial kitchens and food service areas are environments where electrical appliances may be located close to liquids, operate in and around damp conditions or where restricted movement for installation and service is evident. - Page 5 (see Emergency Instructions section on page 10). Place an out-of-service notice on the oven. Contact your oven supplier or MONO Equipment for technical assistance. Ovens must be maintained and serviced at appropriate intervals to ensure the oven operates at optimum levels.
-
Page 6: General Notices
Quick Start Guide Mono Harmony Deck Oven (FG257 USA) General Notices NOTICES Warranty information Ambient working temperatures for electrical components, such as – solenoid switches, circuit breakers and motors, should not exceed 40 °C (115 °F). Manufacturers of these, and other electrical components, advise that any ambient temperature above this affects the functionality of the components. -
Page 7: Contact Information
“A combination of clean industrial design and the latest technology.” The information in this quick start guide should get your purchase up and running without any problems. If you have a problem with your purchase, please get in touch with the MONO Service Department at: MONO Equipment Limited Queensway, Swansea West Industrial Park, Swansea, SA5 4EB, UK Tel. - Page 8 Quick Start Guide Mono Harmony Deck Oven (FG257 USA) Safety General safety messages CAUTION Magnets information: − Magnetic fields in magnets, used in devices and machinery, can inhibit pulse generators for Implantable Cardioverter Defibrillators (ICDs) and pacemakers. Magnets can activate a switch prohibiting the ICD from delivering vital signals such as lifesaving shocks.
- Page 9 MONO Harmony Deck Oven (FG257 USA) Quick Start Guide WARNING Separate electrical supplies to each deck and the prover base must be protected by their own 30mA Type ‘A’ Residual Current Device (RCD). The RCDs must be fitted before installation and commissioning of the oven and prover base.
-
Page 10: Emergency Instructions
Quick Start Guide Mono Harmony Deck Oven (FG257 USA) Emergency instructions To stop the oven in an emergency, switch it off using the main isolator on the oven. A wall-mounted isolator switch, rated for the specific model of oven installed, must also be available to isolate the oven entirely from the electrical supply in an emergency. -
Page 11: Installation
MONO Harmony Deck Oven (FG257 USA) Quick Start Guide Installation General A solid, smooth, level floor is recommended on which to position the oven, and access for maintenance should be considered. The oven is not a “built-in” design. Sufficient clearance must be left in front of the access panels (right- hand side) for servicing. - Page 12 Quick Start Guide Mono Harmony Deck Oven (FG257 USA) Fit earth straps (part no. 158-25-11200) NOTE Factory-built ovens already have them fitted, but always check that they are fitted. Figure 2: Connect earth (ground) straps between each modular deck Fit the tile retaining brackets (part no.
-
Page 13: Water Supply Requirements
MONO Harmony Deck Oven (FG257 USA) Quick Start Guide Earthquake zones When the installation is in an earthquake zone, bolt the base structure to the floor using bracket part number 247-01-00075 (diagonally opposite corners) or suitable alternative fixings. Remember to allow enough space surrounding the oven for maintenance and cleaning without moving the oven. - Page 14 Quick Start Guide Mono Harmony Deck Oven (FG257 USA) Oven’s water system setup procedure The water delivery to the deck oven must be checked for the steam system to operate correctly. Note that dynamic pressure, not static pressure, is being measured.
- Page 15 MONO Harmony Deck Oven (FG257 USA) Quick Start Guide Exhaust connections (if canopy fitted) Ideally, an exhaust duct should rise 78 inches (2 meters) above the bakery roof, protected from wind and birds by a duct protector. It should be of a suitable material to take the high temperatures and humidity expected.
- Page 16 Dimensions are in inches (mm) A. Extraction fan assembly B. Inlet ring C. Flue assembly D. Canopy assembly E. Extraction duct assembly for 2-tray oven. NOTE Contact MONO Equipment for the availability of other extraction duct assemblies. Rev. A23 (Aug 2023) MONO...
-
Page 17: Operating Conditions
Ensure that the locking casters are locked into position. For hygiene reasons, MONO Equipment highly recommends thoroughly wiping the inside of the oven and all accessories with a clean cloth soaked in warm, soapy water before using the oven for the first time. - Page 18 Quick Start Guide Mono Harmony Deck Oven (FG257 USA) Select the High Level Settings option. Enter the default password 561234 (unless changed) and touch OK. Select the Tile Seasoning option to start running the seasoning program automatically. The oven’s controller shows the Target Temperature and the Remaining Process Time.
- Page 19 By using the pre-steam function before loading, this can be minimised. The steam function turns the elements off and injects steam to increase the humidity. Bake settings A good starting point for baking bread in Mono deck ovens is 225 °C (437 °F). Top heat: 60 to 65 Bottom heat: For cookies (and similar products), the oven’s heat can be turned almost off.
- Page 20 Quick Start Guide Mono Harmony Deck Oven (FG257 USA) Is the product baked in the time and to the quality you require? Below are some tips for modifying the bake to get the product that you require. If your product is light on top, decrease the bottom heat and extend the baking time or increase the top ...
-
Page 21: Basic Operations
MONO Harmony Deck Oven (FG257 USA) Quick Start Guide Basic Operations Operations are performed by touching an area of the screen, bringing up the next information panel or activating a function. CAUTION Do not use excessive force. The pressure required to operate the panel is ... -
Page 22: Daily Cleaning Instructions
Quick Start Guide Mono Harmony Deck Oven (FG257 USA) Cleaning Daily cleaning instructions WARNING Isolate the oven from the electrical supply before cleaning. CAUTION Take care that water does not enter the control-panel mounting or roof- mounting fan. Never use a pressure washer or water hose to clean the oven. -
Page 23: Maintenance
Do not use the machine if frayed or bare cables are visible. Follow cleaning instructions (see Cleaning on page 22). If the light bulb needs replacing, refer to the Harmony Deck Oven Full Manual (FILE-73) in the Downloads ... - Page 24 MONO Equipment is the leading designer and manufacturer of bakery equipment in the United Kingdom. This proud heritage of British craftmanship, combined with a reputation for creating high-quality, innovative products, can be traced back to its origins in 1947. All our bakery equipment is manufactured to the most stringent NQA ISO9001:2015 &...
