Extron electronics Cable Cubby 500 Installation Manual page 5

Cable Cubby 500 and 700 • Installation Guide (Continued)

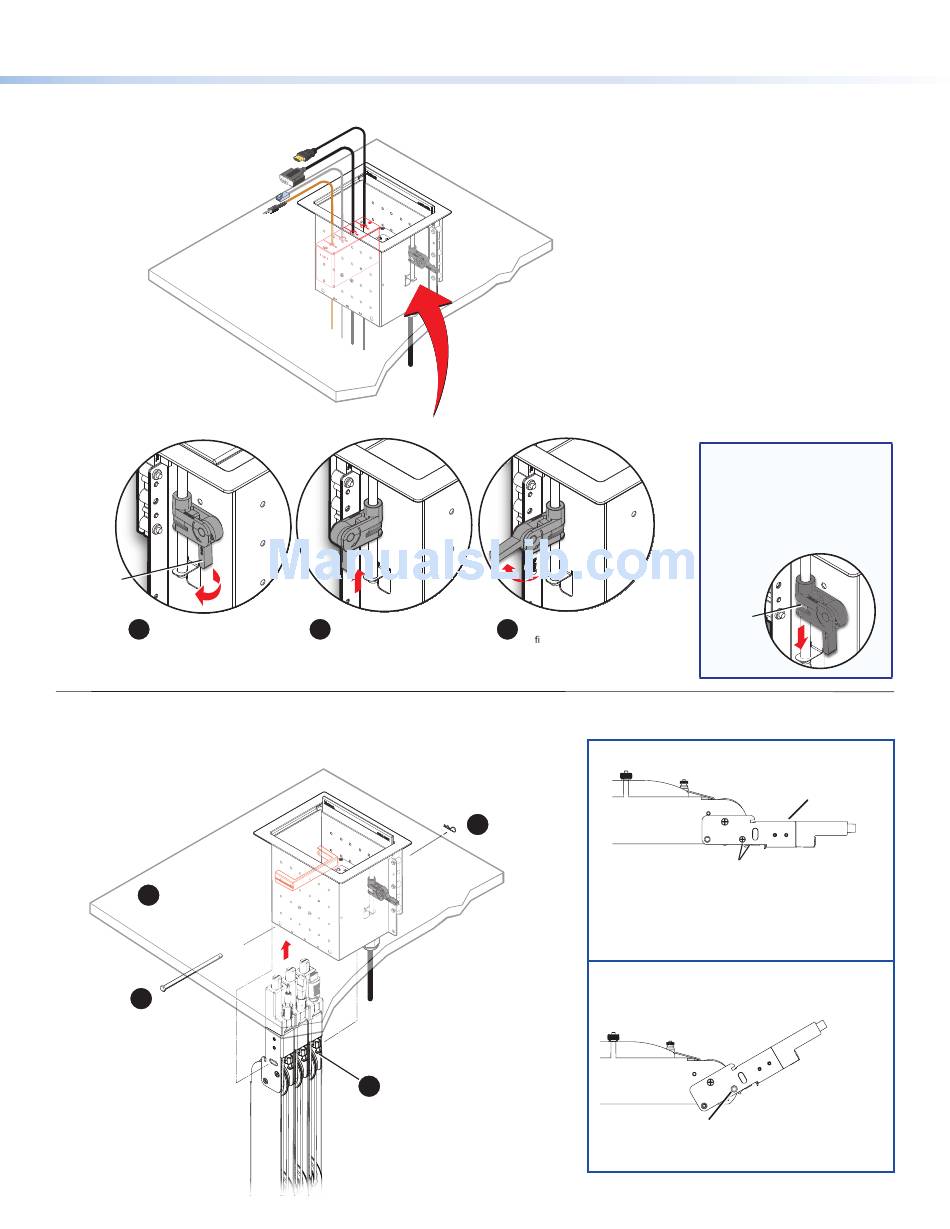

Step 2 — Under the table, adjust the side clamps on the enclosure.
Lever
1
Rotate the side clamp
outward and ensure that
the lever is down.
Installing Retractors
Follow the steps below to install Retractors. For horizontal or angular Retractor
mounting, see the information at right, then follow the steps below.
1
Insert retractors into
the retractor trim.
2
Insert the pin through the
retractor mounting hole on
the side of the Cable Cubby
and retractor assembly.
1
2
Slide the clamp all the way
up against the bottom of
the table.
3
Secure the clip
on the pin.
4
Secure the locking screw on
each Retractor.
Do not overtighten. The locking
screw only needs to be snug.
3
Ensure the Cable Cubby
is rmly seated in the table.
Raise the lever to secure
the Cable Cubby.
Horizontal Mounting
Remove two enclosure screws
Remove two enclosure screws
(one on each side) from this position.
(one on each side) from this position.
Then, mount the Retractors as shown
Then, mount the Retractors as shown
at left.
at left.
See the Cable Retractor Setup Guide, available on the
Extron website, for additional steps.
Angular Mounting
Remove the enclosure screws as shown above, then follow
this step:
Move the cable release assembly upward until
Move the cable release assembly upward until
the angular mounting hole is visible. Reinstall the
the angular mounting hole is visible. Reinstall the
enclosure screws in this hole (both sides).
enclosure screws in this hole (both sides).
NOTE:
To lower the side
clamp, turn the lever
down, then press and
hold the locking plate
while sliding down the
clamp.
Locking
plate
Cable Release
Cable Release
Assembly
Assembly
5
