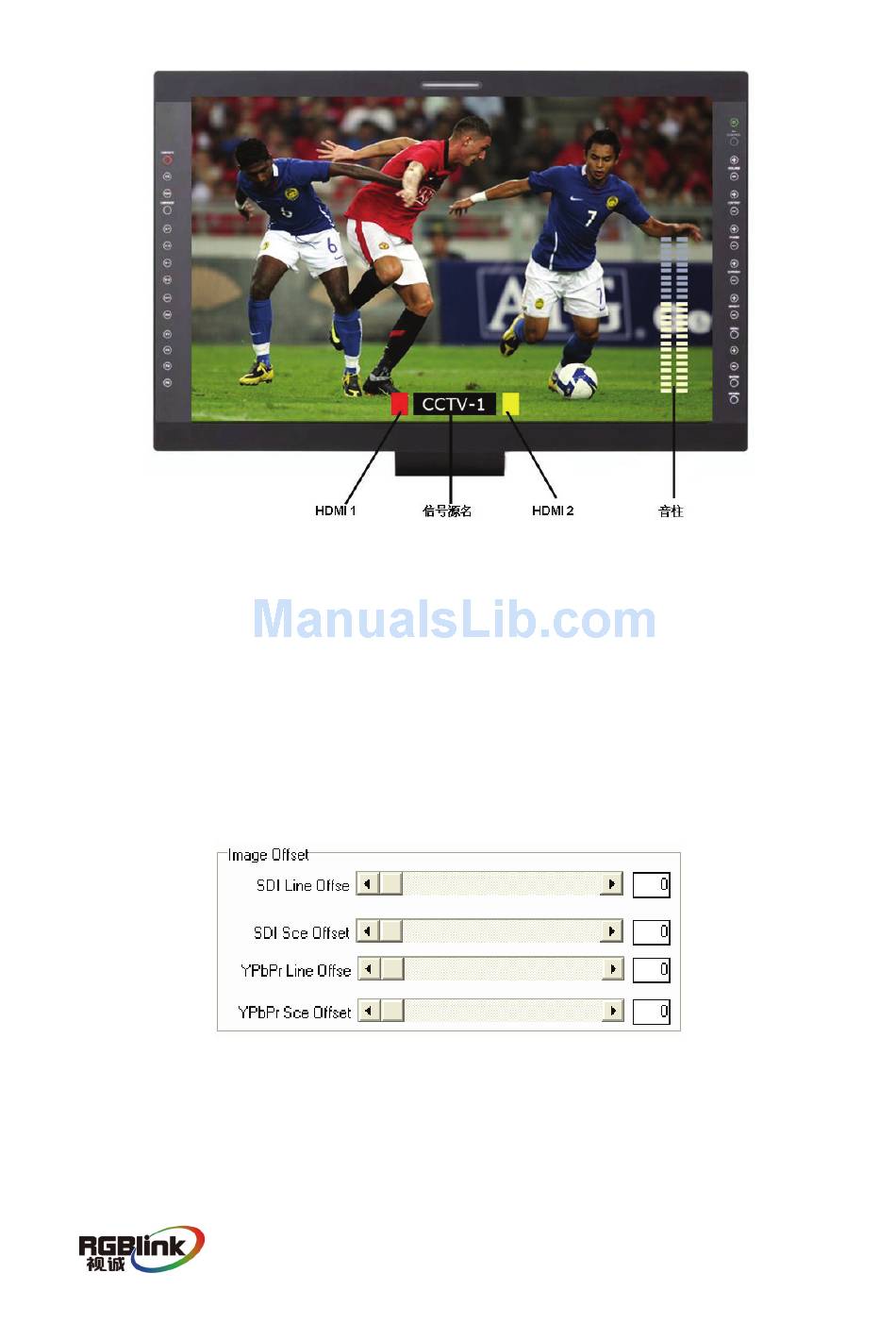

Fig. 4.11 MSP 202 "UMD"、 "Tally" and "Sound Pole"
Tally description：
1. Red means a signal input and is playing. For example, SDI1 is input and display
to HDMI output.
2. Yellow means no signal input. For example, SDI2 is not interface to any SDI
source.
Image deflection:
Image position could be moved left or right through this function
Image position could be moved up and down through this function
Fig. 4.12 MSP 202 "Image deflection"Mumu
MSP 202 User Manual
RGB-RD-UM-M202E001
