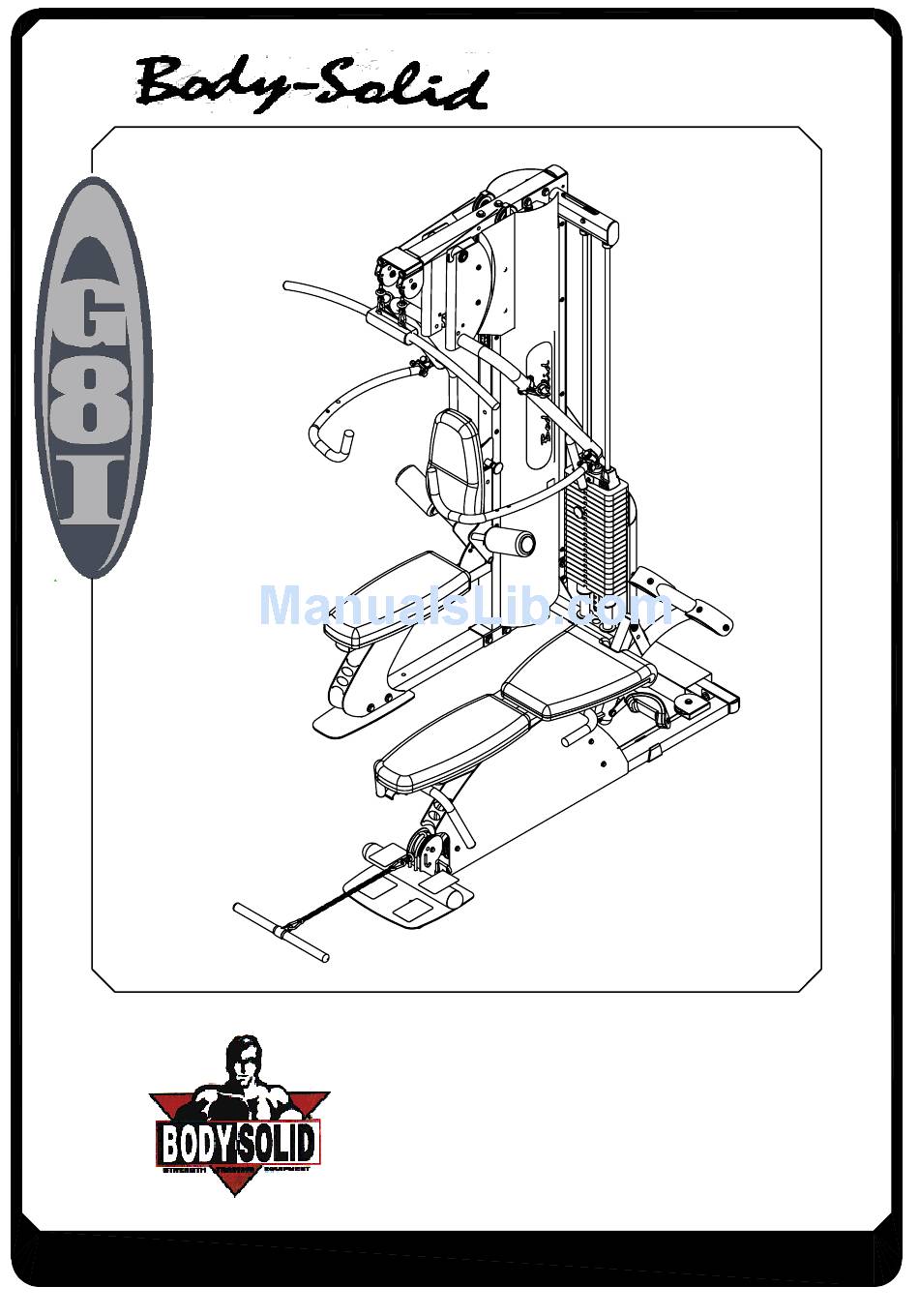

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com G8I.1 OWNER'S MANUAL...
- Page 2 (A1)HEX BOLT 1/2"X4 1/4"L PARTIAL THREAD QTY.10 (A2)HEX BOLT 1/2"X3"L PARTIAL THREAD QTY.8 (A3)HEX BOLT 1/2"X2 3/4"L PARTIAL THREAD QTY.1 (A4)HEX BOLT 3/8"X4 1/4"L PARTIAL THREAD QTY.2 (A5)HEX BOLT 3/8"X4"L PARTIAL THREAD QTY.4 (A6)HEX BOLT 3/8"X3 3/4"L PARTIAL THREAD QTY.1 Page 1.1 G8I.1-032005...
- Page 3 (A9)HEX BOLT 5/16"X1"L PARTIAL THREAD QTY.14 (A10)ROUND ALLEN HEAD 3/8"X2"L PARTIAL THREAD QTY.1 (A11)ROUND ALLEN HEAD 5/16"X3/4"L PARTIAL THREAD QTY.8 (A12)ROUND ALLEN HEAD M10X80L PARTIAL THREAD QTY.2 (A13)ROUND ALLEN HEAD M10X65L PARTIAL THREAD QTY.4 (A14)ROUND ALLEN HEAD M10X40L PARTIAL THREAD QTY.2 G8I.1-032005 Page 1.2...
- Page 4 HARDWARE ILLUSTRATION (A15)10LB PIN (8250-071) QTY.1 (A16)Steel Chain(8820-002) QTY.1 (A17)HEX BOLT 1/2"X3 1/2"L PARTIAL THREAD QTY.2 (A18)HEX BOLT 5/16"X1 3/4"L PARTIAL THREAD QTY.1 (A19)HEX BOLT 3/8"X3"L PARTIAL THREAD QTY.2 (A20)HEX BOLT 3/8"x2"L PARTIAL THREAD QTY.1 (A21)Firm Sheath(8890-010) QTY.1 G8I.1-032005 Page 1.3...
- Page 5 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A22) 1/2"X8.5X21.5L Sleeve QTY.1 (A23) 10X85L PIN (8250-023) QTY.1 (A24)HEX BOLT 1/2"X3 1/4"L PARTIAL THREAD QTY.1 (A25)ROUND ALLEN HEAD M10X30L PARTIAL THREAD QTY.1 (A26)Elastic Belt QTY.1 (A27)ROUND ALLEN HEAD M4X12L PARTIAL THREAD QTY.2 G8I.1-032005 Page 1.4...
- Page 6 (B2)NYLON LOCK NUT 3/8" QTY.18 (C4)5/16"(I.D.)FLAT WASHER 24 QTY.26 (B3)NYLON LOCK NUT M10 QTY.9 (C5)M10(I.D.)FLAT WASHER 27 QTY.12 (B4)NYLON LOCK NUT M10 QTY.1 (C6) 5/16"SPRING WASHER QTY.24 (B5)NUT M4 QTY.2 (C7)M4 Washer QTY.4 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.33 (C2)1/2"(I.D.)FLAT WASHER 25 QTY.8 G8I.1-032005 Page 1.5...
- Page 7 2" ROUND END CAP (9211-074)--------------[2PCS] D19. 60 ROUND END CAP (9211-075)-------------[2PCS] D20. 3" ROUND END CAP (9211-076)--------------[2PCS] D21.30X60 END CAP (9211-078)----------------------[2PCS] D22.2"X3" RUBBER DOUNT (9212-011)------------[1PCS] D23. 4 1/4" PULLEY (9213-002C)-------------------[22PCS] D24. 4 1/4" PULLEY (9213-002D)---------------------[2PCS] D25. 3 1/2" PULLEY (9213-011A)---------------------[1PCS] Page 2 G8I.1-032005...
- Page 8 D33. 95X140mm NO-SLIP TAPE (9310-035) ------------------------[4PCS] D35. 6855mm STEEL CABLE---------------------------------------------[1PCS] D36. 5510mm STEEL CABLE---------------------------------------------[1PCS] D37. 4215mm STEEL CABLE---------------------------------------------[1PCS] D38. 1315mm STEEL CABLE---------------------------------------------[1PCS] D39. 2"X2"X2.5t END CAP (9211-088)---------------------------------[2PCS] D40. BOTTLE HOLDER (9260-086)-------------------------------------[1PCS] D41. BOTTLE (9260-107)--------------------------------------------------[1PCS] D42. IMMOBILE BOARD (8388-025)------------------------------------[1PCS] Page G8I.1-032005...
- Page 9 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET A [1PCS] B [1PCS] C1[1PCS] D [1PCS] E [1PCS] F [1PCS] Page G8I.1-032005...
- Page 10 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET H [1PCS] G [1PCS] I [1PCS] J [1PCS] M [1PCS] K [2PCS] L [1PCS] P [1PCS] N [2PCS] O [1PCS] Q [1PCS] Page G8I.1-032005...
- Page 11 V [1PCS] W [1PCS] Y [2PCS] Direction Direction Z [1PCS] X [1PCS] AA [1PCS] AB [1PCS] AC [2PCS] AD [1PCS] AE [4PCS] AG [1PCS] AF [1PCS] 8342-014 8210-065 8360-055 AU [1PCS] AH [1PCS] AI [1PCS] 8313-082 8240-042 8312-062 Page G8I.1-032005...
- Page 12 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET AI [1PCS] 8380-030 AJ [1PCS] AL [1PCS] 8380-025 8380-027 AN[1PCS] 8380-031 AR[1PCS] AQ[1PCS] AP[4PCS] 9121-038 9111-040 9133-007 AS[1PCS] AT[1PCS] 9111-041 9121-039 Page G8I.1-032005...
- Page 13 ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed A1X2 C1X2 C1X2 B1X2 B2X2 D6X2 D24X2 A5X2 D6X2 B2X2 D6X2 D26X2 D6X2 A5X2 M10X16 ROUND BOLT+M10 WASHER Page G8I.1-032005...
- Page 14 ASSEMBLY INSTRUCTIONS A2X2 D23X2 C1X2 D3X2 M10X45L ROUND BOLT +M10 WASHER D23X4 C1X2 B1X2 D3X2 M10X45L ROUND BOLT +M10 WASHER Above shows STEP 2 assembled and completed B1X2 C1X2 B1X2 C1X2 A1X2 C1X2 C1X2 A1X2 B1X2 C1X2 C1X2 A1X2 Page G8I.1-032005...
- Page 15 A13X2 B3X2 C5X2 C5 B3 D23X2 C5X2 B3X2 A14X2 M10X16 ROUND BOLT 1/2"x110L SHAFT D12X2 C5X2 +M10 WASHER D6X2 A13X2 D8X2 B3X2 C5X2 D23X2 SHAFT 1/2"x92L M10X16 ROUND BOLT +M10 WASHER Above shows STEP 3 assembled and completed Page G8I.1-032005...
- Page 16 ASSEMBLY INSTRUCTIONS B1x2 C1x2 D15x2 C1x2 A1x2 ACx2 Above shows STEP 4 assembled and completed C2x2 C2x2 A2x2 B1x2 B1x2 C2x2 C2x2 A2x2 D13x2 1/2"x92L SHAFT D32x2 M10X16 ROUND BOLT +M10 WASHER B2x2 C3x2 C3X2 A4X2 Page G8I.1-032005...
- Page 17 C4x2 C6x8 C4x8 1/2"x75L SHAFT M8X16L ROUND BOLTx2 +M8 WASHERx2 M10X16L ROUND BOLTx2 +M10 WASHERx2 C6x4 C4x4 A9x4 1/2"x75L SHAFT C4x6 1/2"x3/4" BOLT C6x6 +1/2"WASHER A9x6 D20x2 D17x2 M8X16L ROUND BOLTx2 +M8 WASHERx2 C4x4 D33x2 C6x4 D33x2 A9x4 Page G8I.1-032005...
- Page 18 ASSEMBLY INSTRUCTIONS Wire Rope Illustration 1 W-VIEW Page G8I.1-032005...
- Page 19 ASSEMBLY INSTRUCTIONS Wire Rope Illustration 2 WEIGHT STACK CABLE M4 SCREW WEIGHT SELECTOR BAR A21 VIEW Page G8I.1-032005...
- Page 20 ASSEMBLY INSTRUCTIONS Wire Rope Illustration 3 Q VIEW Leg Extension Cable Page G8I.1-032005...
- Page 21 ASSEMBLY INSTRUCTIONS Wire Rope Illustration 4 Low Pulley Cable D31X2 Page G8I.1-032005...
- Page 22 ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed C7X2 B5X2 A27X2 C7X2 M10X16L ROUND BOLT +M10 WASHER M8X15L ROUND BOLT +M8 WASHER M8X15L ROUND BOLT +M8 WASHER M10X16L ROUND BOLT +M10 WASHER Page G8I.1-032005...
