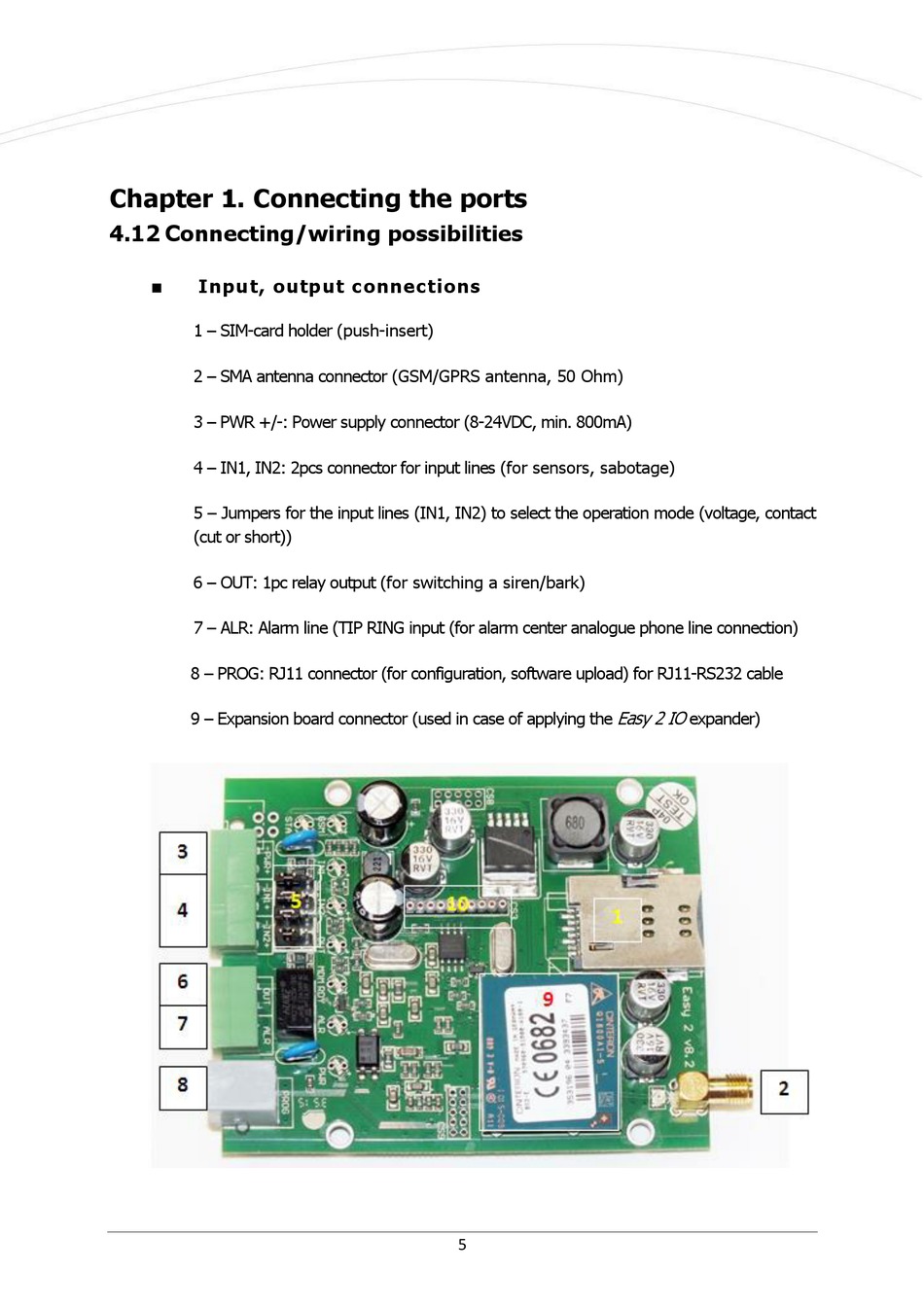

Chapter 1. Connecting the ports
4.12 Connecting/wiring possibilities
Input, output connections
1 – SIM-card holder (push-insert)
2 – SMA antenna connector (GSM/GPRS antenna, 50 Ohm)
3 – PWR +/-: Power supply connector (8-24VDC, min. 800mA)
4 – IN1, IN2: 2pcs connector for input lines (for sensors, sabotage)
5 – Jumpers for the input lines (IN1, IN2) to select the operation mode (voltage, contact
(cut or short))
6 – OUT: 1pc relay output (for switching a siren/bark)
7 – ALR: Alarm line (TIP RING input (for alarm center analogue phone line connection)
8 – PROG: RJ11 connector (for configuration, software upload) for RJ11-RS232 cable
9 – Expansion board connector (used in case of applying the
Easy 2 IO
5
expander)
