Easy 2
Then the password will be restored and recovered to the
Monitoring the serial port messages:
At the 4th tab, at the Serial Monitoring, you
can Open it, and connect to the device in
surveillance (read only) mode, when only the
left side of the window is active with the signal
strength data and terminal window messages.
This feature is provided for monitoring,
Easy 2
checking the current operation without any intervention or configuration change. Further
4.4
details on the Chapter
When you are attempted to Close the monitoring, after all you should click to the Serial Port tab,
for connecting the device for parameter configuration.

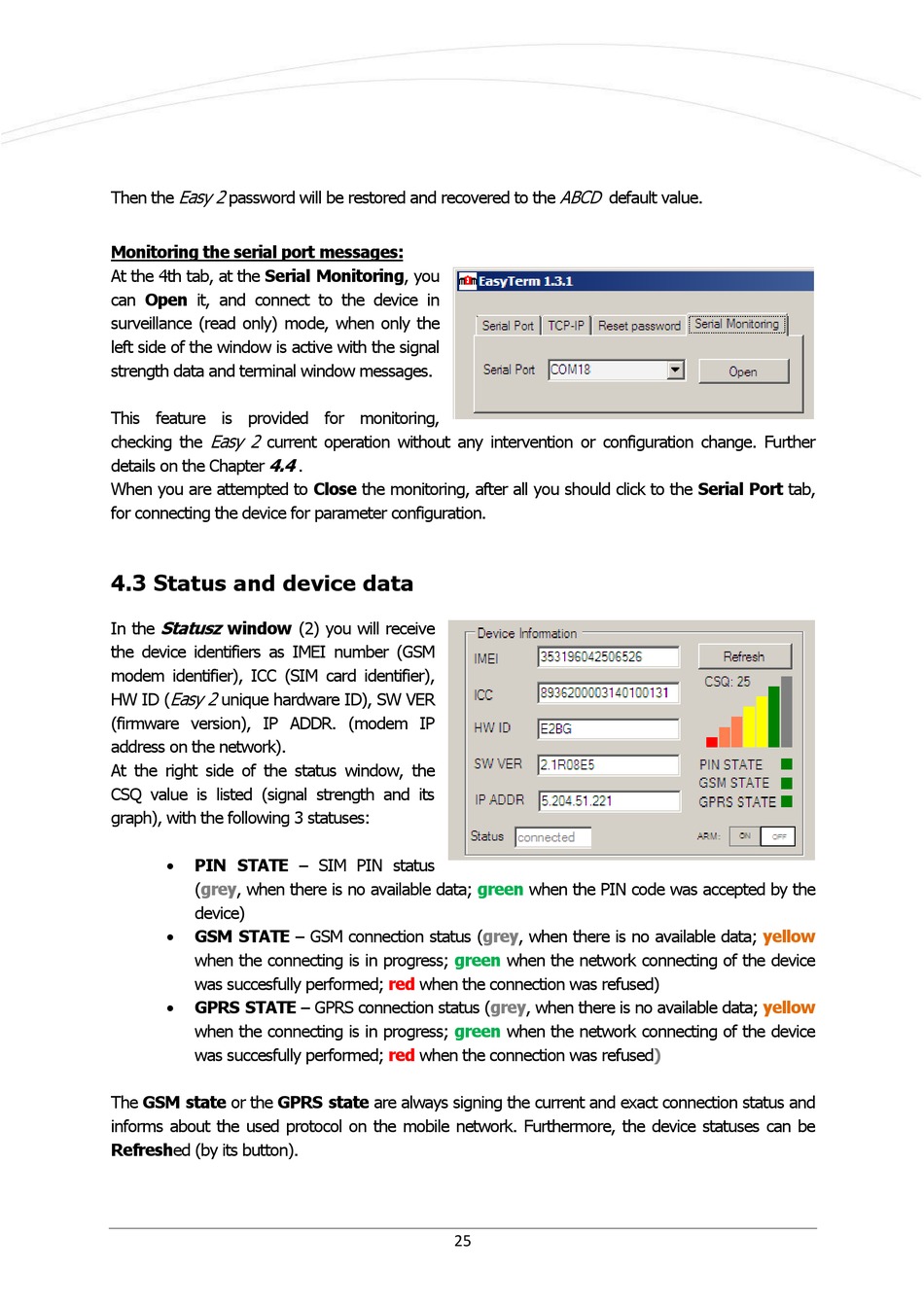

4.3 Status and device data

Statusz
In the window (2) you will receive
the device identifiers as IMEI number (GSM
modem identifier), ICC (SIM card identifier),
Easy 2
HW ID ( unique hardware ID), SW VER
(firmware version), IP ADDR. (modem IP
address on the network).
At the right side of the status window, the
CSQ value is listed (signal strength and its
graph), with the following 3 statuses:

PIN STATE – SIM PIN status
(grey, when there is no available data;
device)
 GSM STATE – GSM connection status (grey, when there is no available data;
when the connecting is in progress;
was succesfully performed;
 GPRS STATE – GPRS connection status (grey, when there is no available data;
when the connecting is in progress;
was succesfully performed;
The GSM state or the GPRS state are always signing the current and exact connection status and
informs about the used protocol on the mobile network. Furthermore, the device statuses can be
Refreshed (by its button).
.
green
red when the connection was refused)
green
red when the connection was
25
ABCD
default value.
green when the PIN code was accepted by the
when the network connecting of the device
when the network connecting of the device
refused)
yellow
yellow
