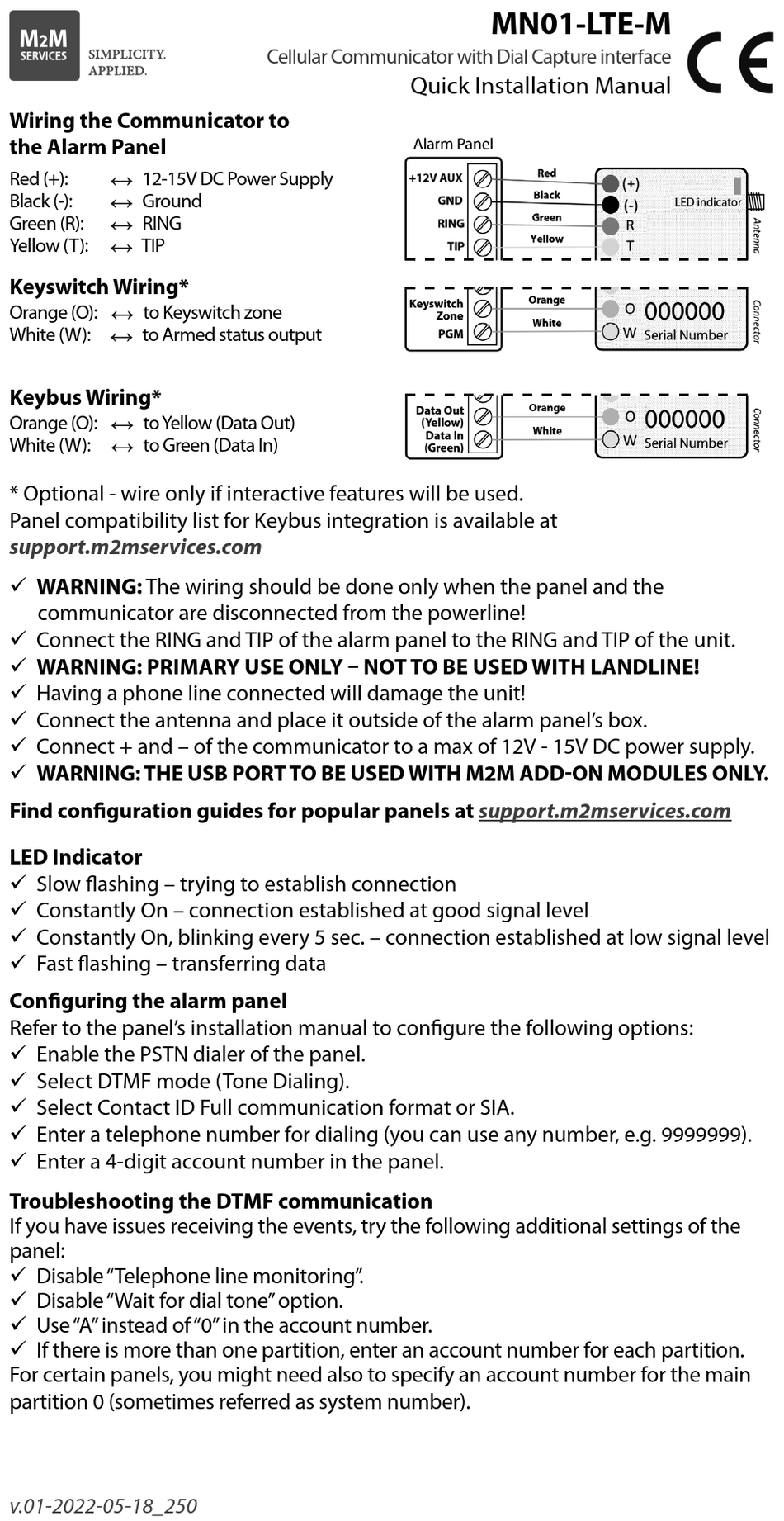

M2M MN01-LTE-M Quick Installation Manual

M2M MN01-LTE-M Quick Installation Manual

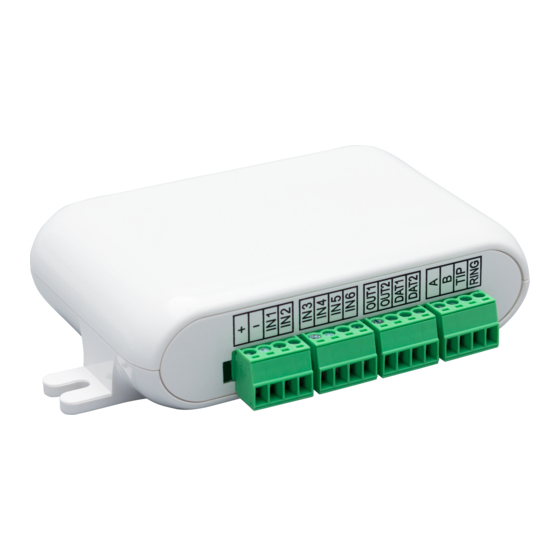

Cellular communicator with dial capture interface

Advertisement

Wiring the Communicator to
the Alarm Panel
Red (+):
12-15V DC Power Supply
Black (-):
Ground
Green (R):
RING
Yellow (T):
TIP

Keyswitch Wiring*

Orange (O):
to Keyswitch zone
White (W):
to Armed status output

Keybus Wiring*

Orange (O):
to Yellow (Data Out)
White (W):
to Green (Data In)
* Optional - wire only if interactive features will be used.
Panel compatibility list for Keybus integration is available at
support.m2mservices.com
 WARNING: The wiring should be done only when the panel and the
communicator are disconnected from the powerline!
 Connect the RING and TIP of the alarm panel to the RING and TIP of the unit.
 WARNING: PRIMARY USE ONLY – NOT TO BE USED WITH LANDLINE!
 Having a phone line connected will damage the unit!
 Connect the antenna and place it outside of the alarm panel's box.
 Connect + and – of the communicator to a max of 12V - 15V DC power supply.
 WARNING: THE USB PORT TO BE USED WITH M2M ADD-ON MODULES ONLY.
Find configuration guides for popular panels at

LED Indicator

 Slow flashing – trying to establish connection
 Constantly On – connection established at good signal level
 Constantly On, blinking every 5 sec. – connection established at low signal level
 Fast flashing – transferring data
Configuring the alarm panel
Refer to the panel's installation manual to configure the following options:
 Enable the PSTN dialer of the panel.
 Select DTMF mode (Tone Dialing).
 Select Contact ID Full communication format or SIA.
 Enter a telephone number for dialing (you can use any number, e.g. 9999999).
 Enter a 4-digit account number in the panel.

Troubleshooting the DTMF communication

If you have issues receiving the events, try the following additional settings of the
panel:
 Disable "Telephone line monitoring".
 Disable "Wait for dial tone" option.
 Use "A" instead of "0" in the account number.
 If there is more than one partition, enter an account number for each partition.
For certain panels, you might need also to specify an account number for the main
partition 0 (sometimes referred as system number).
v.01-2022-05-18_250
Cellular Communicator with Dial Capture interface
Quick Installation Manual
MN01-LTE-M
support.m2mservices.com
