- Page 1 MQ03-LTE-M-FIRE Cellular Communicator with Dial Capture Interface Installation and Operation Manual Doc. No. 03002 V 1.1 08/2020 © M2M Services, 1 Kukush Str, building M8, Sofia 1309, Bulgaria www.m2mservices.com...
-
Page 2: Table Of Contents
MQ03-LTE-M-FIRE Installation and Operation Manual Table of Contents About this document ..............................3 Product Description ............................... 5 Main Features ................................5 Specifications ................................6 Mounting and Wiring ..............................7 Wiring the Communicator ............................7 Mounting the Communicator ............................ 8 Programming ................................10 Programming the Control Panel .......................... -
Page 3: About This Document
In no event will M2M Services be liable for any incidental, special or consequential damages (including loss of profits), and the Client shall have no claim against M2M Services for termination of contracts, indemnification, compensation for loss of customers, loss of profits, prospective profits, distribution rights, market share, goodwill, investments made or any similar losses that may result from any faults in the operation of the Device and the services provided by M2M Services. - Page 4 This unit must be checked by a qualified technician once a year. The MQ03-LTE-M-FIRE device contains a radio transceiver operating in LTE CAT-M1 band. Do not use the Device with medical devices, or where it can interfere with other devices and cause any potential danger.
-
Page 5: Product Description

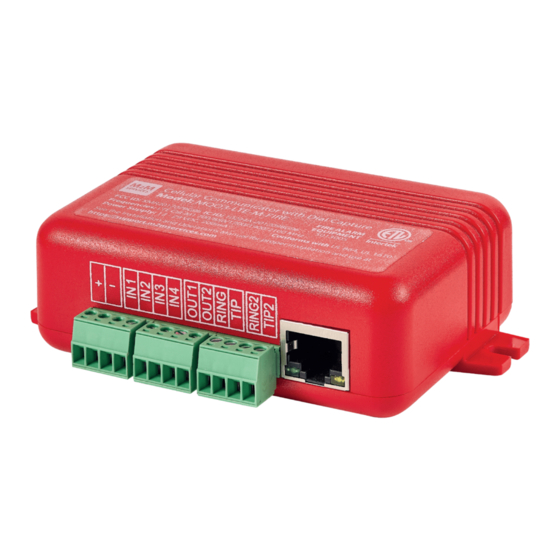

MQ03-LTE-M-FIRE Installation and Operation Manual Product Description The MQ03-LTE-M-FIRE is a digital cellular communicator with dial capture interface. It represents the latest communication technology for the security industry. The new LTE-M connectivity brings faster speeds and greater stability. The communicator is equipped with dual-SIM. -
Page 6: Specifications
MQ03-LTE-M-FIRE Installation and Operation Manual Specifications Characteristics Technical Specifications Supply Voltage +12 to +29 VDC Consumption Standby 50 mA Peak 200mA Frequency LTE CAT-M1 700/850/1700/1900/2100 MHz GSM Providers AT&T, Verizon, or other available in the area networks Dimensions 2.48”x3.54”x1.26” Weight 2.56 oz without antenna... -
Page 7: Mounting And Wiring
MQ03-LTE-M-FIRE Installation and Operation Manual Mounting and Wiring Recommended location and wiring methods must be in accordance with the National Electrical code, ANSI/NFPA 70. Installation must be in accordance with the National Fire Alarm and Signaling Code, NFPA 72. -
Page 8: Mounting The Communicator
MQ03-LTE-M-FIRE Installation and Operation Manual Mounting the Communicator This communicator comes fully assembled with all the components mounted except the external antenna. The device comes with standard 3 ft external antenna. The communicator must be installed within Altronix BC300R metal enclosure or as an option any other UL Listed (UOXX, NITW or CYIV) metal enclosure. - Page 9 MQ03-LTE-M-FIRE Installation and Operation Manual There are nine steps in installing MQ03-LTE-M-FIRE properly. In the following steps you will use the communicator and the RControl Admin application to determine the signal strength to find a suitable mounting location. For UL installations, the communicator must be mechanically secured to a UL Listed enclosure such as a UL Listed junction box.
-
Page 10: Programming
Download the RControl Admin mobile application on your Android or IOS mobile device. Login with the end user credentials from the quick installation manual provided with the device. For more details refer to M2M Smartphone Application Overview V 2.0 at http://support.m2mservices.com/wp-content/uploads/2017/12/Smartphone%20Application%20Overview_v.2.0.pdf If the signal is low, reposition the antenna and try again to find a better signal. -
Page 11: Programming The Control Panel
MQ03-LTE-M-FIRE Installation and Operation Manual Programming the Control Panel For programming information, please refer to the appropriate control panel guide. Ensure the following programming is done: Enable the PSTN dialer of the panel Select DTMF mode (tone dialing) ...
