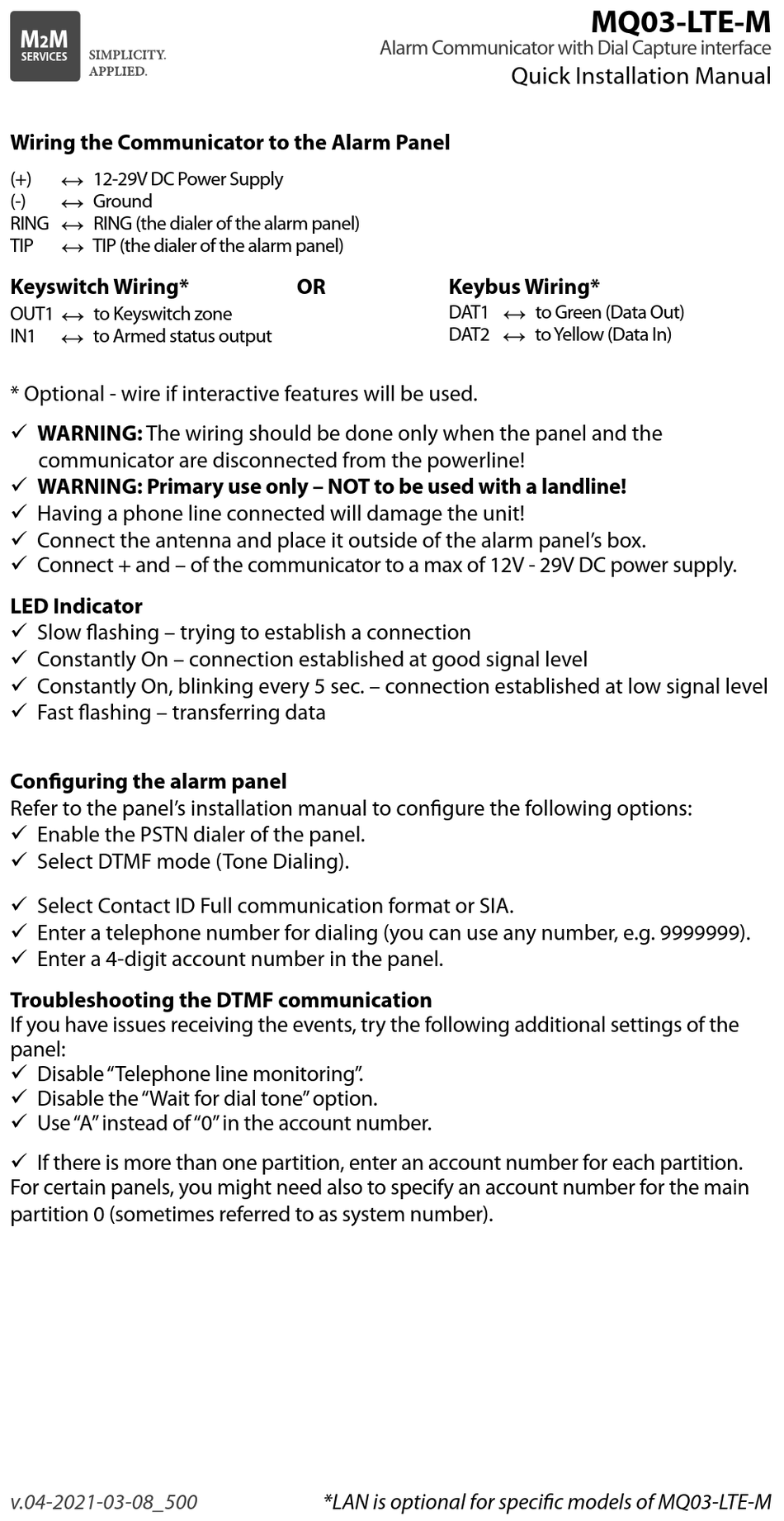

M2M MQ03 Series Quick Installation Manual

Wiring the Communicator to the Alarm Panel

(+) 12-29V DC Power Supply
(-) Ground
RING RING (the dialer of the alarm panel)
TIP TIP (the dialer of the alarm panel)
Keyswitch Wiring*
OUT1 to Keyswitch zone
IN1 to Armed status output
* Optional - wire if interactive features will be used.
 WARNING: The wiring should be done only when the panel and the
communicator are disconnected from the powerline!
 WARNING: Primary use only – NOT to be used with a landline!
 Having a phone line connected will damage the unit!
 Connect the antenna and place it outside of the alarm panel's box.
 Connect + and – of the communicator to a max of 12V - 29V DC power supply.

LED Indicator

 Slow flashing – trying to establish a connection
 Constantly On – connection established at good signal level
 Constantly On, blinking every 5 sec. – connection established at low signal level
 Fast flashing – transferring data

Configuring the alarm panel

Refer to the panel's installation manual to configure the following options:
 Enable the PSTN dialer of the panel.
 Select DTMF mode (Tone Dialing).
 Select Contact ID Full communication format or SIA.
 Enter a telephone number for dialing (you can use any number, e.g. 9999999).
 Enter a 4-digit account number in the panel.

Troubleshooting the DTMF communication

If you have issues receiving the events, try the following additional settings of the
panel:
 Disable "Telephone line monitoring".
 Disable the "Wait for dial tone" option.
 Use "A" instead of "0" in the account number.
 If there is more than one partition, enter an account number for each partition.
For certain panels, you might need also to specify an account number for the main
partition 0 (sometimes referred to as system number).
v.04-2021-03-08_500

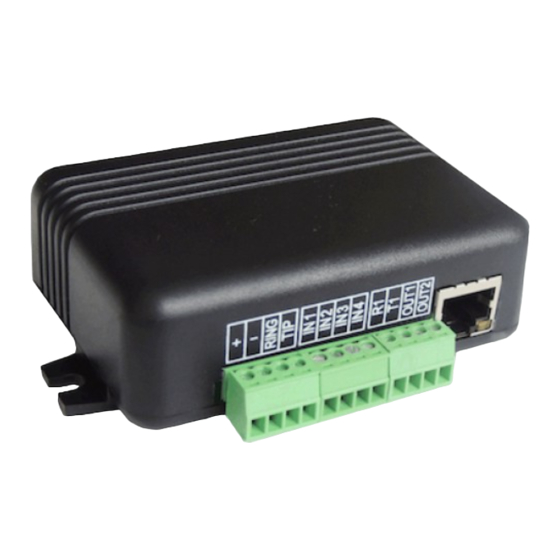

Alarm Communicator with Dial Capture interface
OR
*LAN is optional for specific models of MQ03-LTE-M
MQ03-LTE-M
Quick Installation Manual
Keybus Wiring*
DAT1 to Green (Data Out)
DAT2 to Yellow (Data In)
