Daikin 2508032 Operation Manual

Bacnet vav actuator room sensor
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Operations Manual
BACnet
VAV Actuator
®
Room Sensor

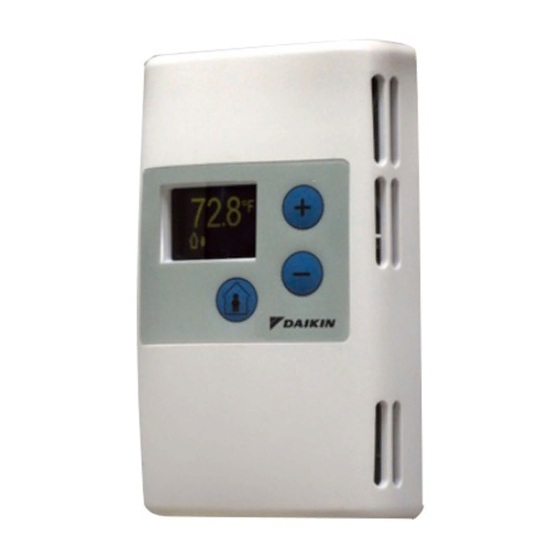

Models 2508032
OM 1039-1
Group: Controls
Part Number: OM 1039
Date: January 2011

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Reference Documents . . . . . . . . . . . . . . . . . . . . . .2
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .2
Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
General Information . . . . . . . . . . . . . . . . . . . . . . .2
Hazard Identification Messages . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Operation Modes . . . . . . . . . . . . . . . . . . . . . . . . . .3
Normal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Occupied Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Setpoint Adjustment Mode . . . . . . . . . . . . . . . . . .3
Passkey Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Laptop Pass-thru Mode . . . . . . . . . . . . . . . . . . . . .5
