Installation and Maintenance Manual
Basic Room Sensors

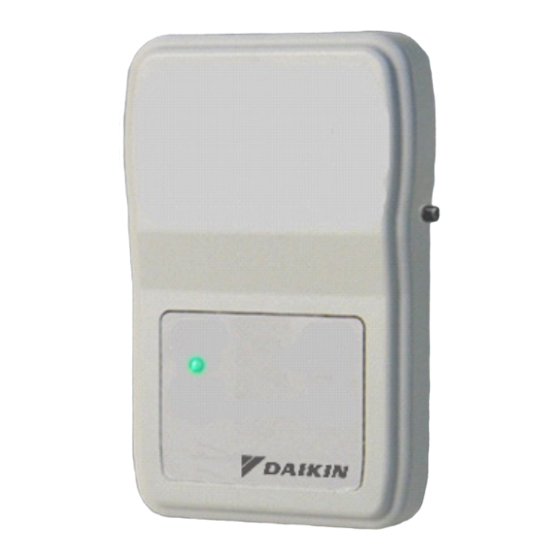

Sensor 910247450
The basic room sensor (910247450) and the basic room sensor with cool to warm (910247453) are used in conjunction with
the MicroTech equipped units as described in the application section on page 2. These sensors have an output for tem-
perature, and LED status indication and also include an override reset button. Sensor 910247453 requires a fourth conductor
for cool to warm temperature adjustment.
Basic room sensor buttons & dimensions

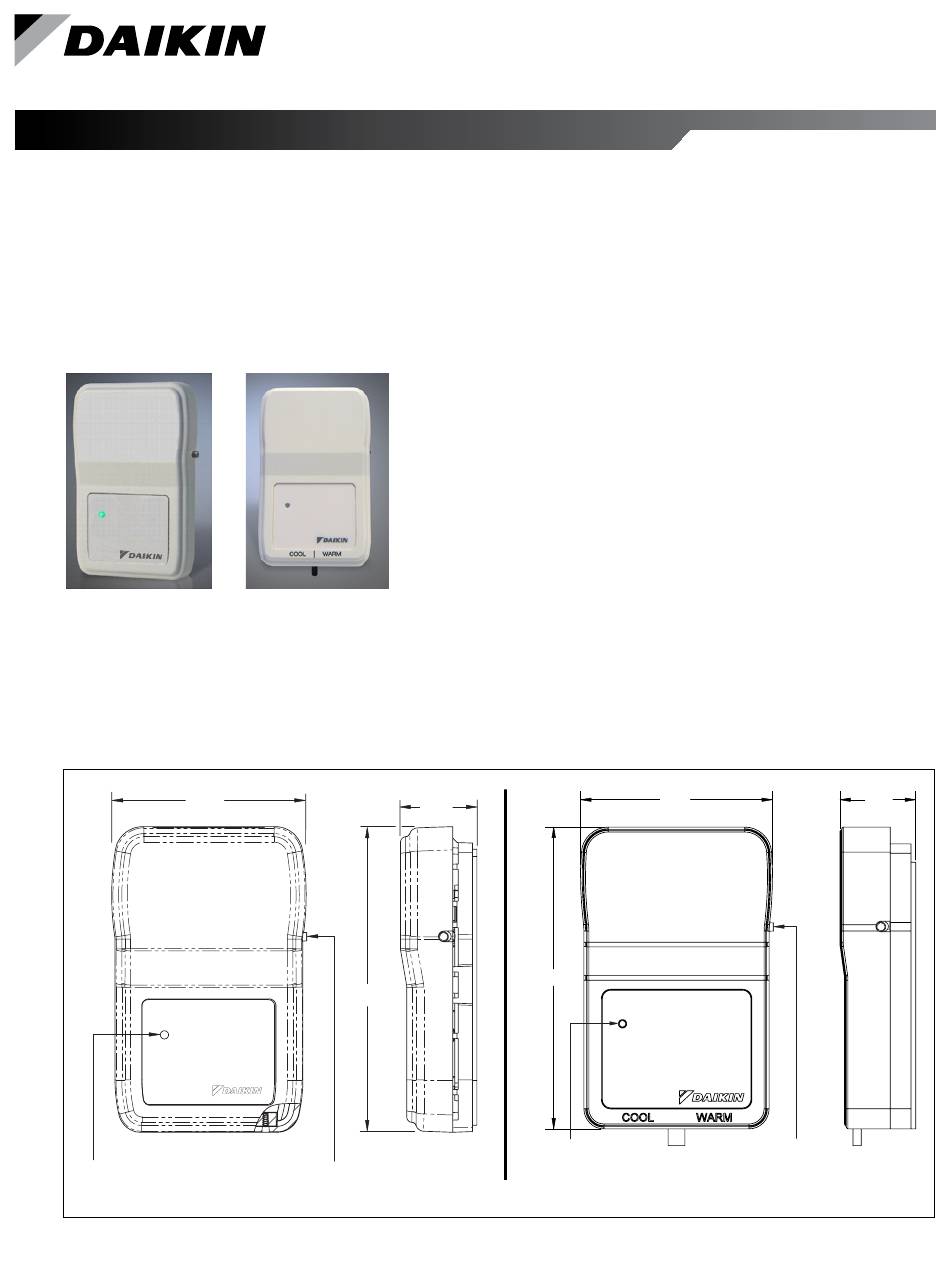

Figure 1: Basic room sensors for Unit Ventilator units (P/N 910247450 & 910247453)
2.86"
LED Status Indicator
Sensor 910247450
Used with:
Unit Ventilators (UV) - Sensor Part No. 910247450
& Sensor Part No. 910247453 (With Cool/Warm)
Units with MicroTech
Models UAV, UAH, UAR/ER, UAZ and UAE
Sensor 910247453
1.13"
4.50"
Override/Reset
IM 1277
Group: UV
Part Number: 910247365
Date: October 2018
Controls
®
2.86
4.50
LED Status Indicator
Sensor 910247453
1.13
Override/Reset
