Drag a router device onto the network and uncheck the "Commission Device" box. Set
up the router to communicate between the IP channel and the TP-10 channel.
Once the device has been set up, right-click the device and select Commission. Choose
the Service Pin Install option. When LonMaker indicates that it is waiting for the service
pin, press SRV P1 on the ENodeIV device. If the router and LonMaker are communicating
properly, LonMaker will commission the ENodeIV device, and the router device will turn
green in the LonMaker application. The following screen shots show how this is done.

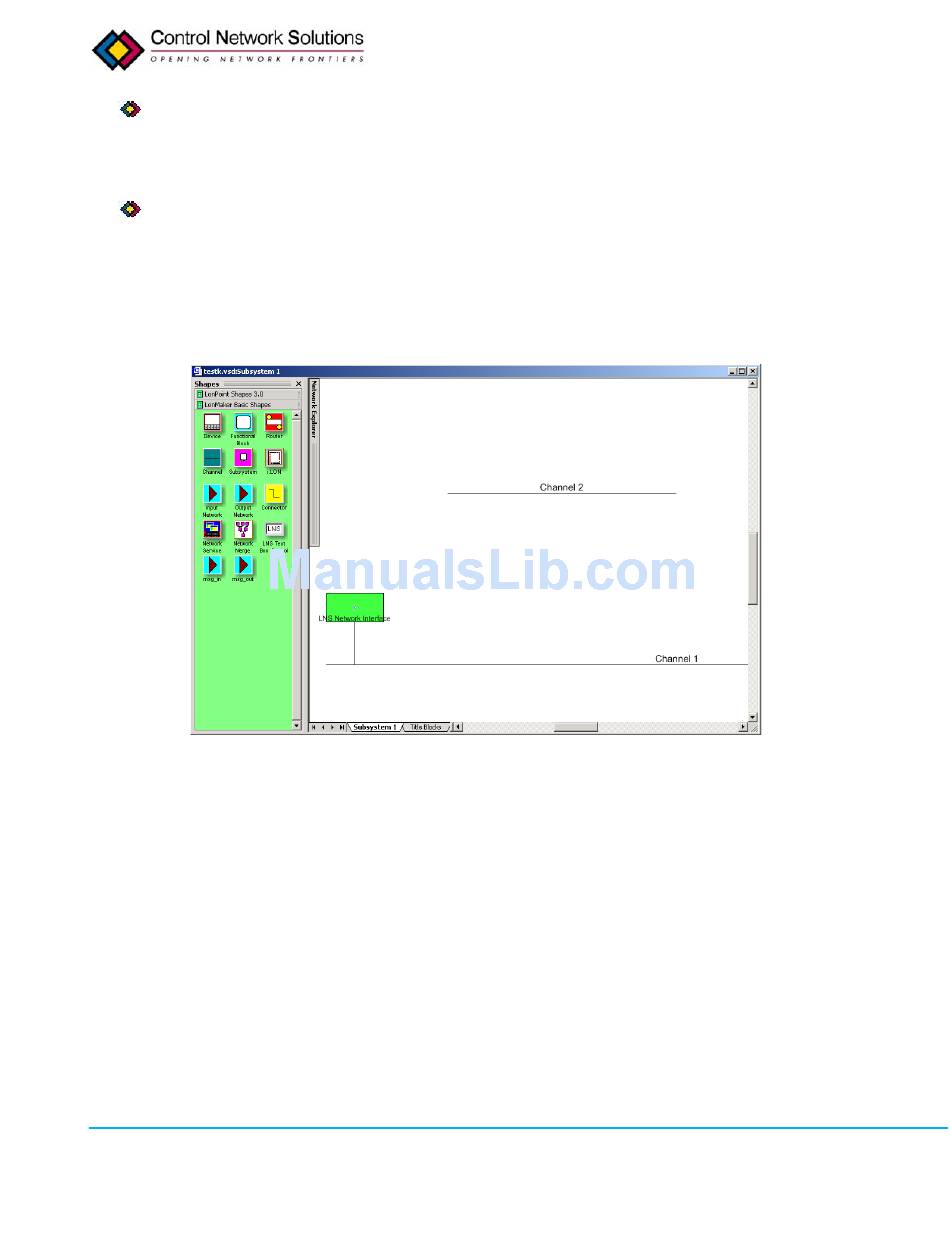

Fig.4.2:
Initial LonMaker Drawing
