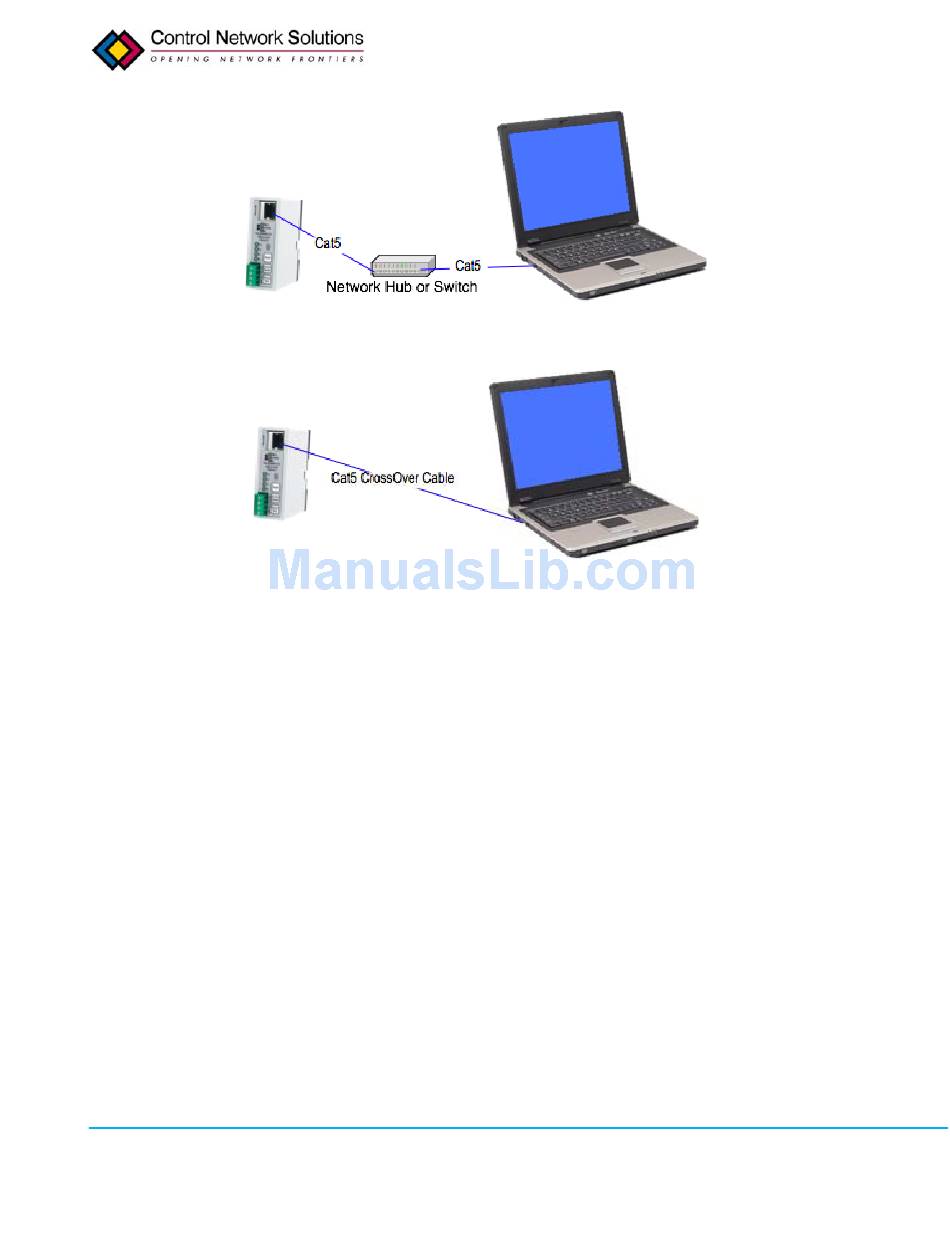

Fig.2.1:
Ethernet setup with hub or switch
Fig.2.2:
Ethernet with direct connect crossover cable

2.1.2. Wi-Fi (802.11b)

For WiFi equipped eNodeIV devices, an 802.11b WiFi access point or ad hoc connection must
be setup between the web browser host computer and the eNodeIV device. First configure the
host computer to add an IP interface on subnet 10.0.2.0/255. Instructions for setting up
Windows XP are in the next section. Then setup the WiFi configuration. The default WiFi
configuration for the ENodeIV device is as follows:
Wireless SSID: "Adept"
Wireless Mode: Any Type (Ad hoc or Infrastructure)
Channel: Search
Encryption: None
The access point or ad hoc connection must be set up to allow a connection on a network with
SSID of Adept or Any. There are many different topologies that may be employed for
connecting to the eNodeIV (eNodeIV) WiFi version. The following figures show some of the
more common ones.
