each of the bridged channels, that is, Side A and Side B.
3.2.1. Router Setup Page
When 852 to 852 Bridging Router Mode is enabled, the router setup page looks like the
following.

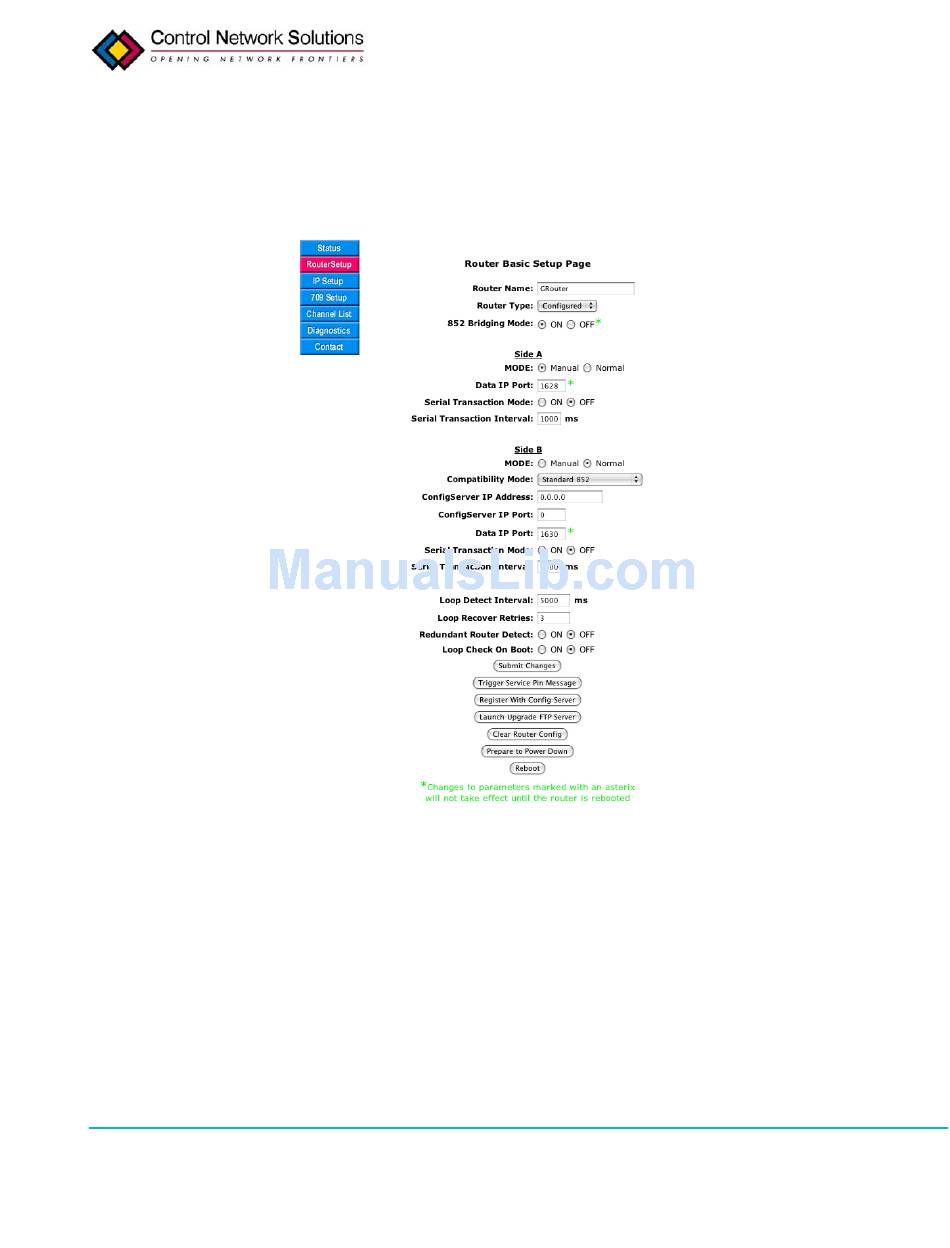

Fig.3.2:
Bridging Router Mode Setup Page
Side A Mode: These radio buttons determine the operational mode for Side A, either Manual or
Normal. To change select the appropriate radio button and click the Submit Changes button.
Side A Data IP Port: This field appears when the router is in 852 bridge mode. It allows the user
to set or change the Side A unicast IP port of the router. To change the port, type in the new
port number (0-65535), and click the Submit Changes button.
Side A ConfigServer IP Address: This field appears only when the router is operating in 852
Bridge mode and Side A is in Normal Mode. This is the unicast IP host address of the
configuration server for the Side A 852 channel. To change the value in the field, type in the
and click the Submit Changes button.
new value in the dotted format
XX.XX.XX.XX
