the channel and thereby manage traffic. This may be helpful for low bandwidth 852 channels.
Enter the new value and click the Submit Changes button.
Register With Config Server: This button sends an 852 registration request to the appropriate
config server for Side A and separately to the config server for Side B when either/both Side A
and Side B are in normal mode. This will usually add the device to the config server's list of
managed devices.

3.2.2. 709 Setup Page

When 852 to 852 Bridging Router Mode is enabled, the 709 setup page shows both Side A and
Side B has IP channels.

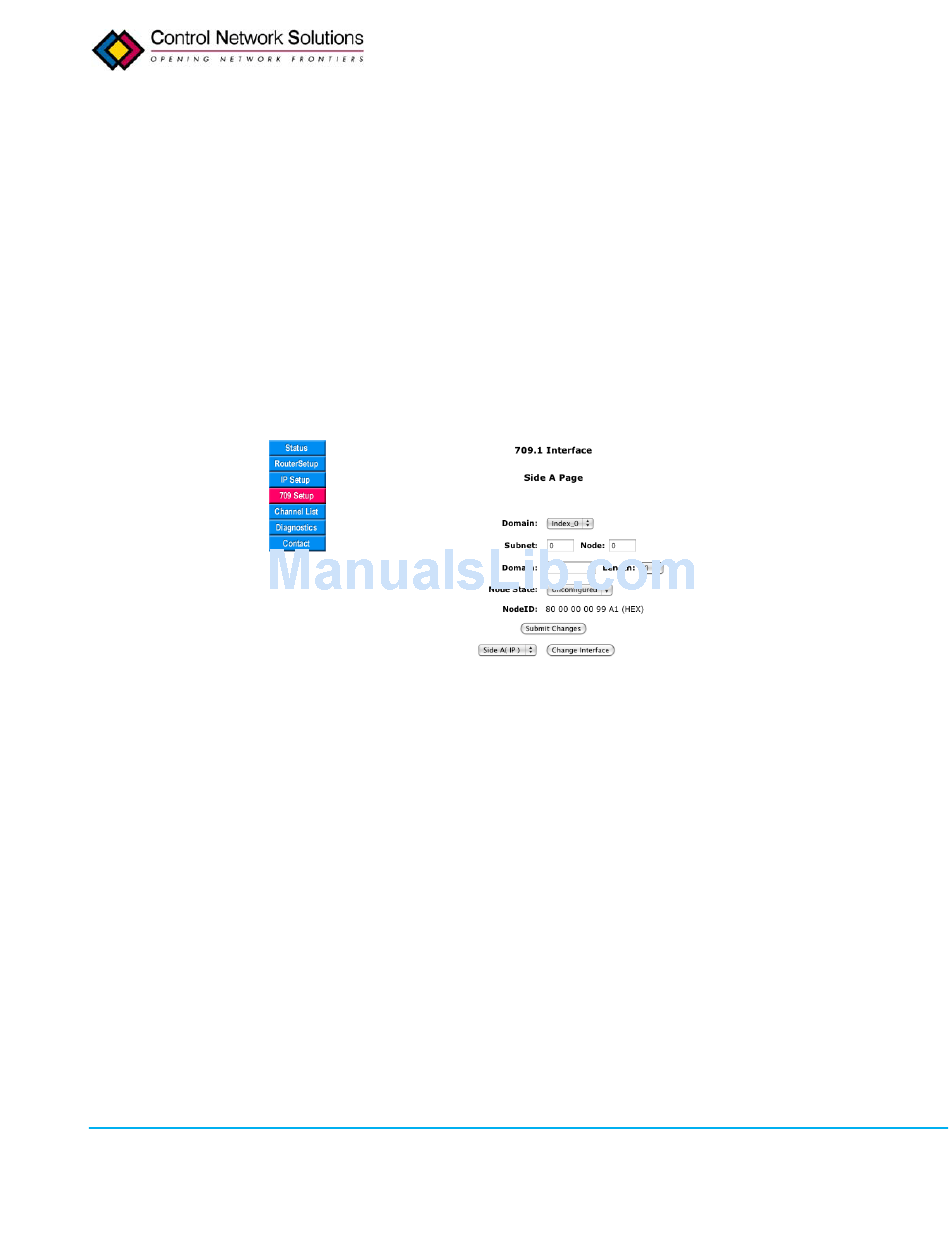

Fig.3.3:
Bridging Router Mode Setup Page

3.2.3. Bridging Router Mode Channel List Page

In Bridging Router mode there are two channel lists, one for each side of the router. The
channel list page will display either Side A or Side B, whichever one is selected. The items on the
page will be dependent on whether the particular side in Normal or Manual mode. See the
documentation for the Channel list page given previously for details. Only those fields that are
different for Bridging mode are documented below
September 2011
52
