add Device A to their channel lists. Now go back to Device A and press the Update Member
Names button on Device A. Now all the other devices will have their channel lists set the same
as Device A's.
Reboot: This button reboots the router. See the Router Setup page section for a more detailed
description.
Add New Device: This form adds a new device to the channel list. Enter the device name, IP
address, and port in the associated fields and the click the ADD button.
Channel List: This lists all the devices in the channel by name. The list also includes the IP
address and port of each device. The IP address field is also a link to the status web page of the
associated device. The Info field is a link to the device detail page for each device. The remove
link will remove the associated device from the channel list.

2.11. Device Detail Page

The device detail page provides useful information about the addressing and configuration of
each device. This page is accessed from the a device's Info link in the channel list.

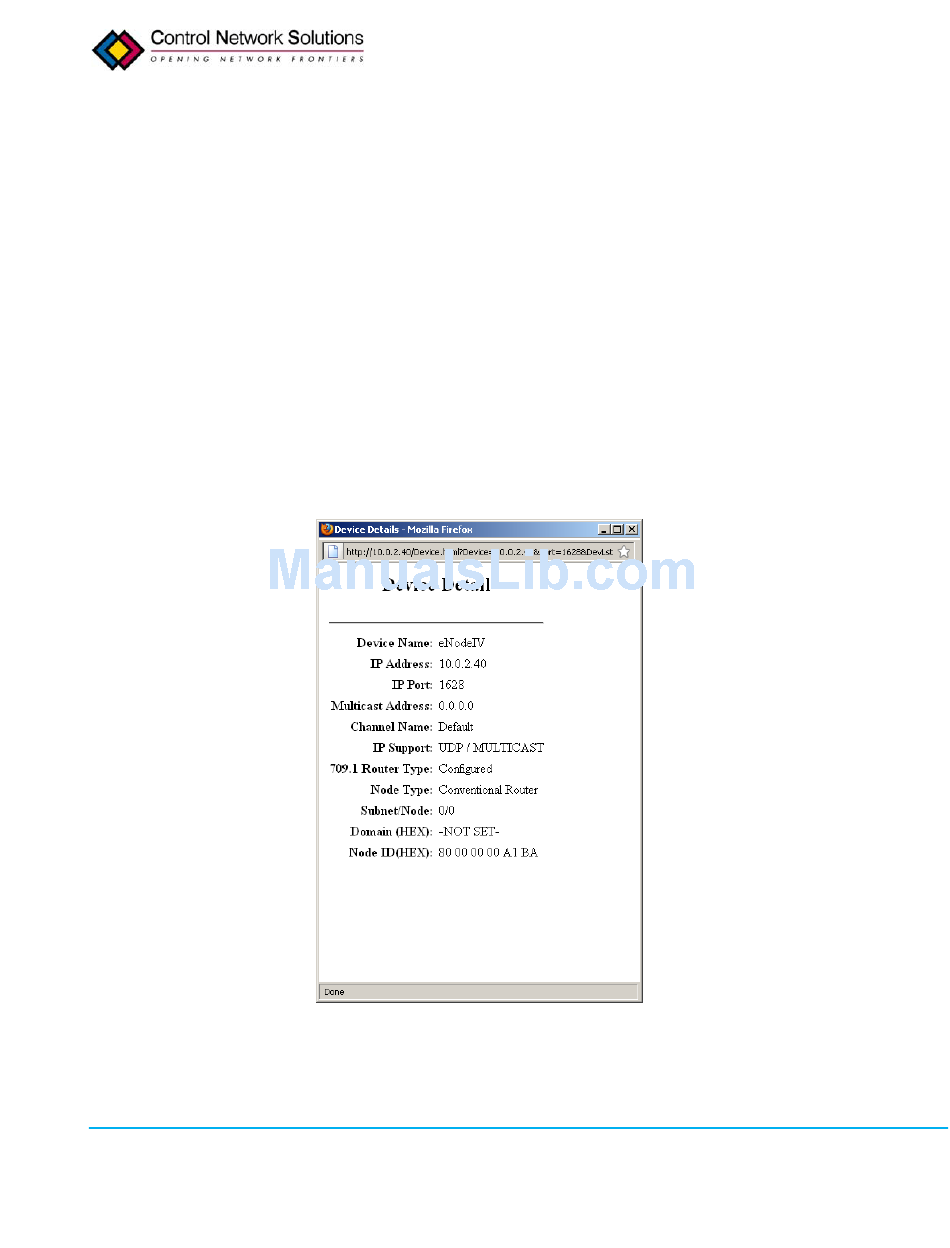

Fig.2.24:
Device Detail Page
September 2011
43
V1.44
Copyright © 2011 Adept Systems, Inc. and Control Network Solutions Ltd All Rights Reserved.
