Submit Changes: This button updates all the configuration information entered on the current
web page and refreshes the display.
Trigger Service Pin: This button causes a service pin message to be sent out both the 709.1 and
IP interfaces of the router. This can be used when commissioning the router remotely.
Register With Config Server: This button sends an 852 registration request to the config server.
This will usually add the device to the config server's list of managed devices. Newer
configuration servers may not accept an unsolicited registration message from a device.
Launch Upgrade FTP Server: This button starts up the FTP server needed to perform field
upgrades of the eNodeIV device's firmware. A detailed description of the upgrade process is
provided in a later section.
Clear Router Config: This button clears all router configuration information, such as routing
tables, back to factory defaults. It does not affect the web or IP address or interface. This is
useful when moving the router to a different 852 channel or configuration and a known starting
configuration is desirable.
Prepare to Power Down: This button checks the status of any pending flash writes and displays
a corresponding web page. If there are no pending flash writes the displayed web page will
indicate that it is safe to power down. Otherwise it will display a web page with a timer
indicating one should wait until the timer expires before powering down to allow the writes to
complete. Once the timer expires a dialog box will display indicating that time is up. This allows
one to do something else while flash is writing. The link on the page takes one back to the
router setup. If the IP address was changed, the link goes to the new IP address.

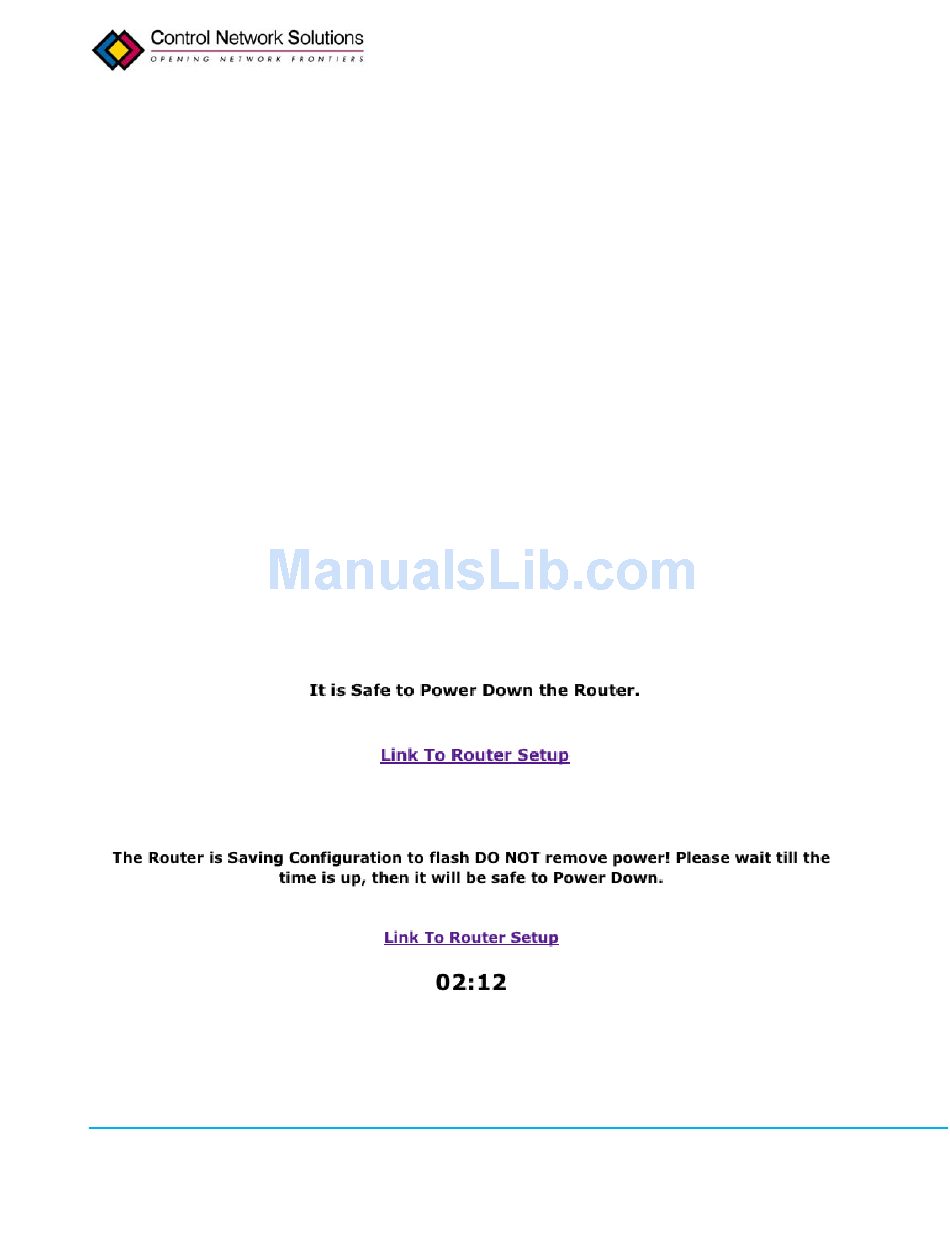

Fig.2.11:
Safe to Power Down Page
Fig.2.12:
Unsafe to Power Down Page
