2.10. Channel List Page

In Normal mode the Channel Membership List is controlled by the configuration server.
Whereas in Manual mode the Channel Membership List must be configured manually. This
page allows the user to add and delete the devices from the 852 channel when in Manual
mode. Following is a brief description of each item listed on the page, as well as instructions on
how to set or change items. The behavior of the page is different for Normal and Manual mode.

2.10.1. Normal Mode Channel List Page

In Normal mode, the page looks like the following when the device is the only member in the
channel.

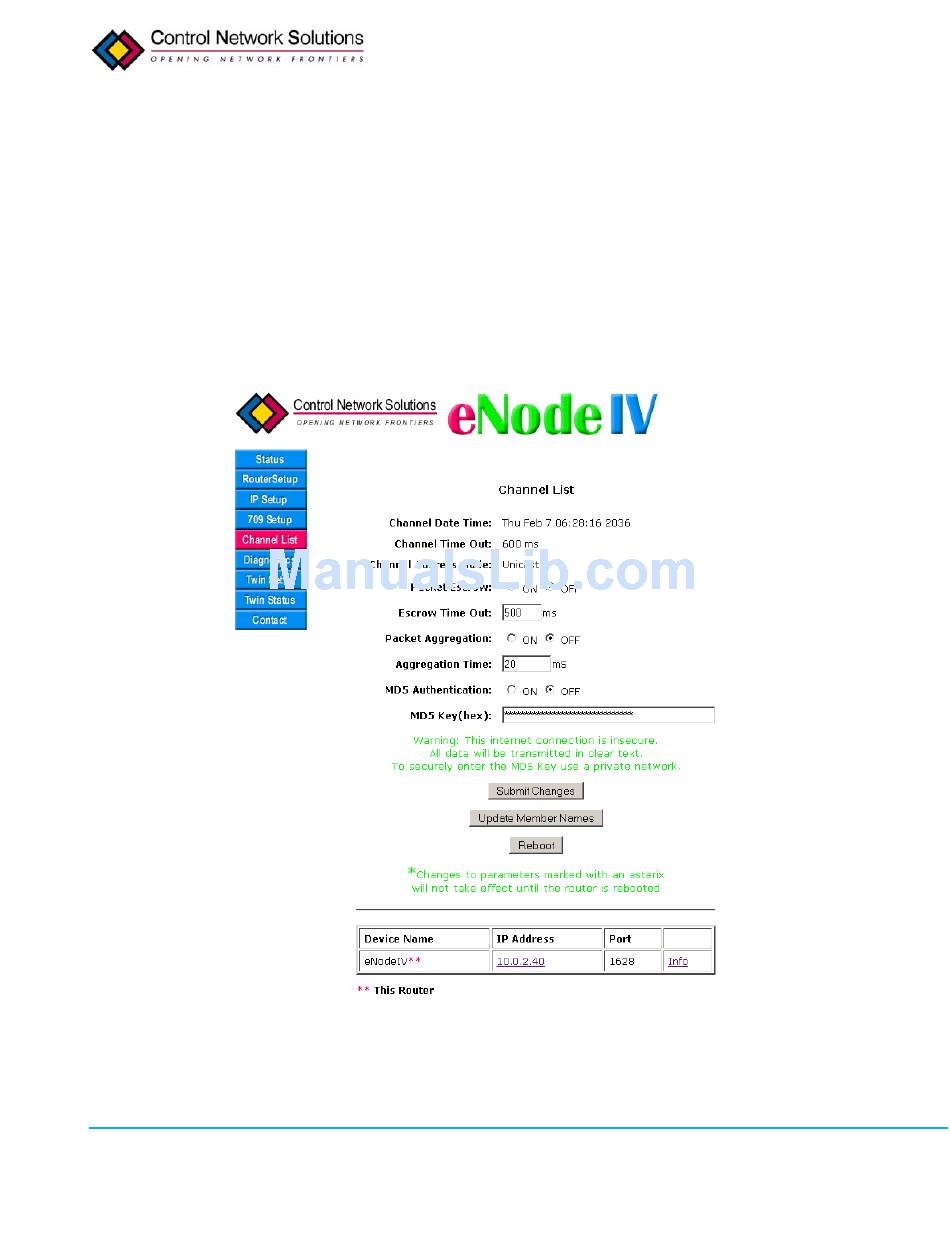

Fig.2.21:
Channel List Page
September 2011
39
V1.44
