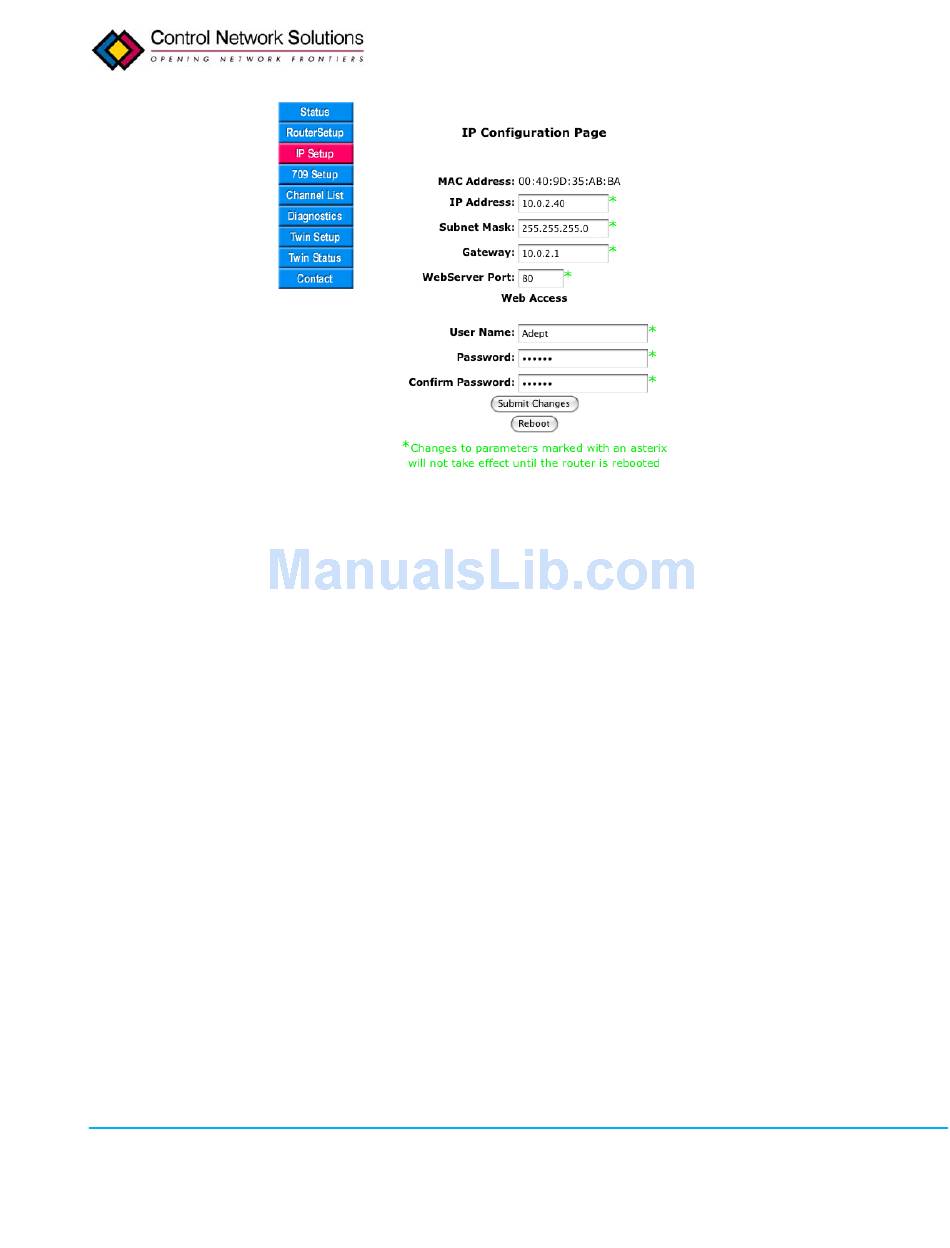

Fig.2.16:
IP Setup Page
MAC Address: The physical address of the Ethernet interface in HEX. This is a read only field.
IP Address: The IP address currently assigned to the eNodeIV. This is the unicast IP host address
of the router. To change the value in the field, type in the new value in the dotted format
and click the Submit Changes button. The IP host address change will not take effect
XX.XX.XX.XX
until after the router is rebooted. Be careful to record the new address as it will not be possible
to communicate with the eNodeIV without a valid IP address.
Subnet Mask: The IP subnet mask assigned to the router. To change the value in the field, type
in the new value in the dotted format
subnet mask change will not take effect until after the router is rebooted.
Gateway: The address of the IP router or gateway used by the eNodeIV device to reach other
devices that are not in its local network. To change the value in the field, type in the new value
in the dotted format
XX.XX.XX.XX
Web-Server Port: This field allows the user to change the IP port used by the embedded web
server on the device. The default is port 80. When used with a NAT router and port mapping,
port 80 may be in use by another device. The device must be restarted before changes to the
web-server port will be activated. To change the value, type in the new value and click the
Submit Changes button and then click the Reboot button. A typical alternate web server port
is 8080. To access the web server on any port other than 80, use the following format in the
web browser:
http://IP Address:Port
for example
http://10.0.2.40:8080
September 2011
Copyright © 2011 Adept Systems, Inc. and Control Network Solutions Ltd All Rights Reserved.
and click the Submit Changes button. The
XX.XX.XX.XX
and click the Submit Changes button.
33
V1.44
