4.2. Normal Mode With i.LON Configuration Server Example

This section contains step-by-step instructions on configuring the eNodeIV device with an i.LON
Configuration Server .
Using the web configuration pages, set up IP address(es), subnet mask(s), and IP
gateway address(es) for the router(s). Connect the router(s) to the same IP network as
the PC running the configuration server. Using a PC attached to the network, verify that
the routers can be pinged. Consult with the network administrator to procure the IP
address, subnet mask, and gateway address, if not already known.
Set the router(s) to normal mode. Set the configuration server address to the address
of the computer that is running the i.LON Configuration Tool. Set the configuration
server port to that used by the i.LON configuration server. The default is 1629. Set the
compatibility select Standard 852. Register the device with the configuration server by
clicking on the Register With Config Server button. This is done on the Router Setup
Page.
Go to the i.LON configuration server window and drag the eNodeIV device from the
orphans list to the desired channel. The router(s) should be added to the same channel.
After a few seconds, the router devices should turn green.

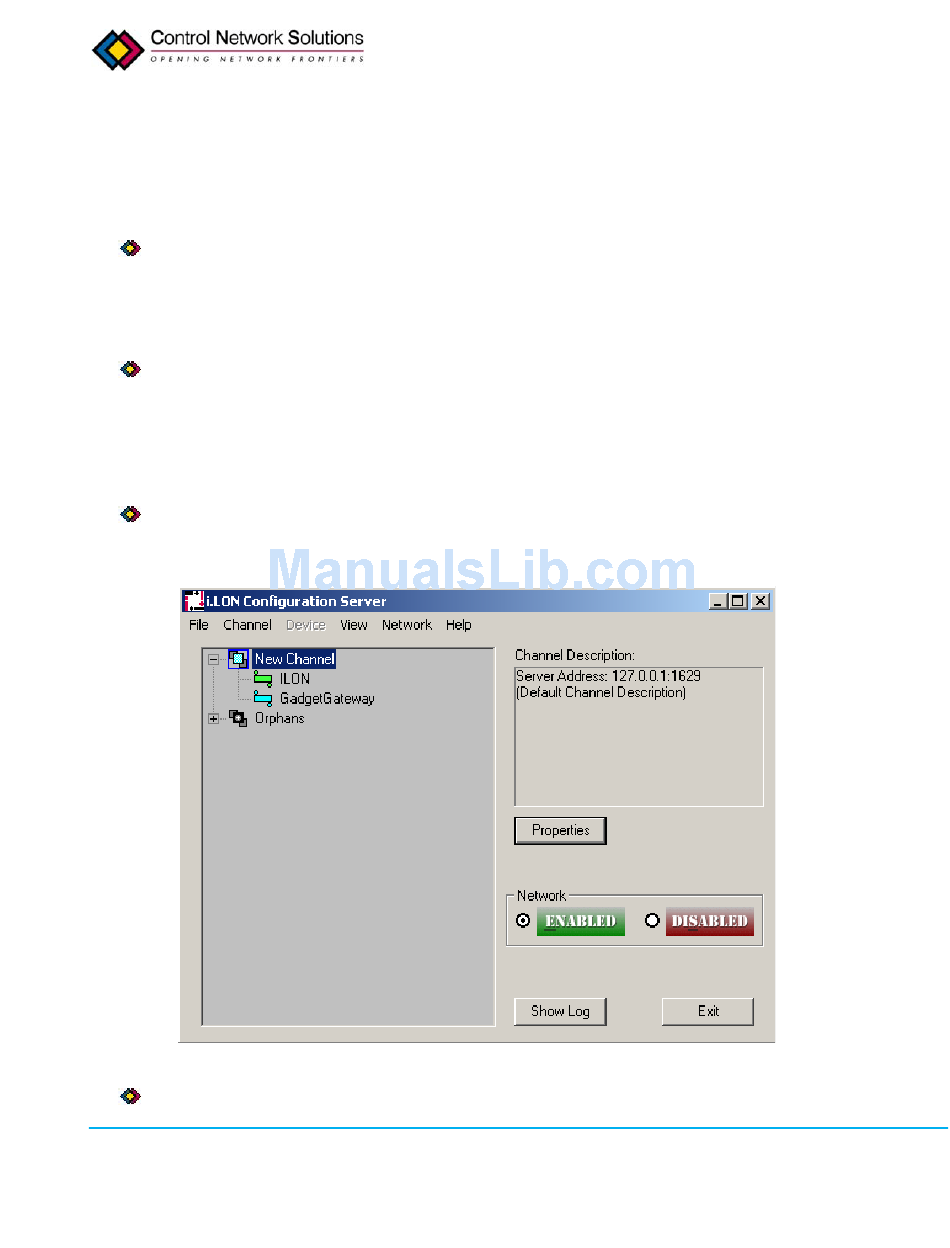

Fig.4.1:
Configuration Server Screen
Verify that the eNodeIV device is configured correctly by checking the Channel List Page
