Sim2 CRYSTAL CUBE Quick Start Manual

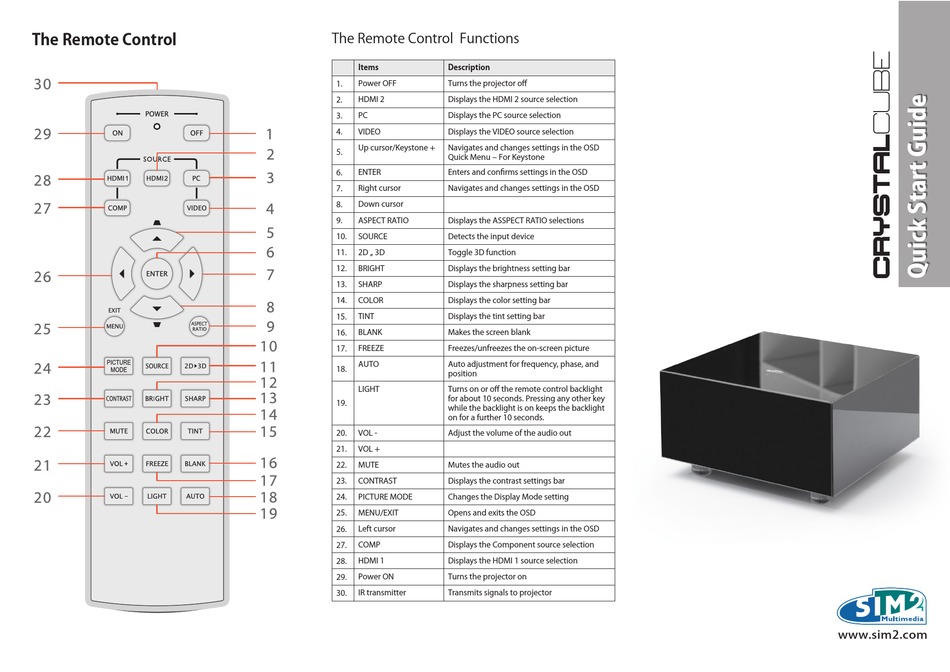

The Remote Control

The Remote Control Functions
Items Description
Power OFF Turns the projector off
1.
HDMI 2 Displays the HDMI 2 source selection
2.
PC Displays the PC source selection
3.
VIDEO Displays the VIDEO source selection
4.
Up cursor/Keystone + Navigates and changes settings in the OSD
5.
Quick Menu – For Keystone
6. ENTER Enters and confirms settings in the OSD
7. Right cursor Navigates and changes settings in the OSD
8. Down cursor
9. ASPECT RATIO Displays the ASSPECT RATIO selections
10. SOURCE Detects the input device
11. 2D „ 3D Toggle 3D function
12. BRIGHT Displays the brightness setting bar
13. SHARP Displays the sharpness setting bar
14. COLOR Displays the color setting bar
15. TINT Displays the tint setting bar
16. BLANK Makes the screen blank
17. FREEZE Freezes/unfreezes the on-screen picture
AUTO Auto adjustment for frequency, phase, and
18.
position
LIGHT Turns on or off the remote control backlight
for about 10 seconds. Pressing any other key
19.
while the backlight is on keeps the backlight
on for a further 10 seconds.
20. VOL - Adjust the volume of the audio out
21. VOL +
22. MUTE Mutes the audio out
23. CONTRAST Displays the contrast settings bar
24. PICTURE MODE Changes the Display Mode setting
25. MENU/EXIT Opens and exits the OSD
26. Left cursor Navigates and changes settings in the OSD
27. COMP Displays the Component source selection
28. HDMI 1 Displays the HDMI 1 source selection
29. Power ON Turns the projector on
30. IR transmitter Transmits signals to projector
