ViconNet 8.0 Software
Quick Installation Guide

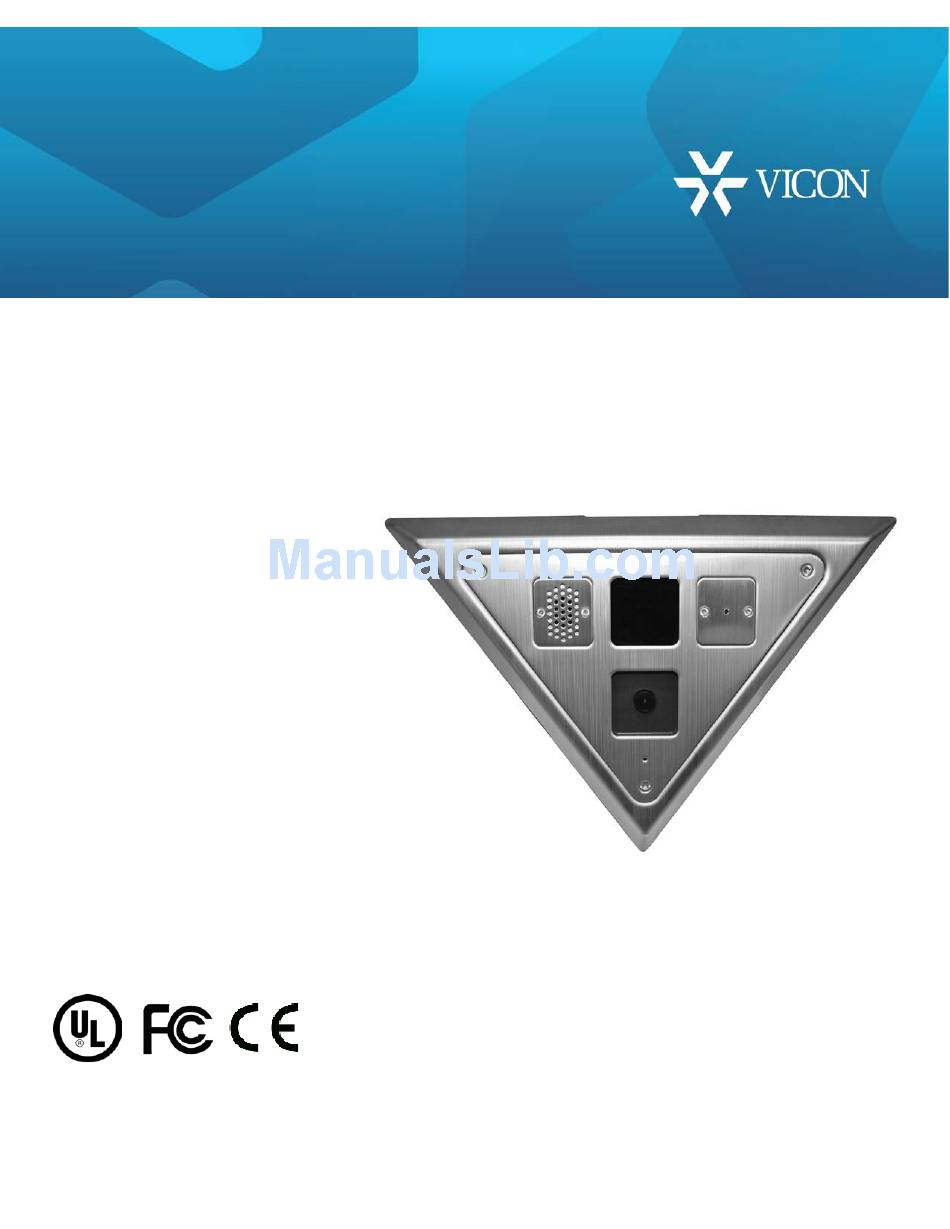

ROUGHNECK V-CELL-HD-A
Corner-Mount Network Camera
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform
precisely as described in the documentation. This system has not been designed to be
used in life-critical situations and must not be used for this purpose.
Document Number: 8009-8247-31-00 Product specifications subject to change without
notice. Issued: 2/17 Copyright © 2017 Vicon Industries Inc. All rights reserved.
XXYYY-XX-XX
XX247-31-00
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266) UK: 44/(0) 1489-566300
www.vicon-security.com
Advertisement
Table of Contents
Related Manuals for Vicon ROUGHNECK V-CELL-HD-A
Summary of Contents for Vicon ROUGHNECK V-CELL-HD-A
- Page 1 Corner-Mount Network Camera XX247-31-00 Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will Tel: 631-952-2288) Fax: 631-951-2288 meet your requirements or that the operation will be entirely error free or perform Toll Free: 800-645-9116 precisely as described in the documentation.
- Page 3 Read these instructions thoroughly before beginning an installation. Refer to the complete manual for detailed information. Always refer to Vicon’s website to assure you have the most up-to-date manual, http://www.vicon-security.com.
-
Page 4: Installation
V-CELL-HD-A Quick Installation Guide 2. Installation For the network camera to operate, it is necessary to connect a network cable for data transmission and power connection from customer-supplied power supply. 2.1 Overview Parts and Description ① Main Power 12 VDC (↑(+) pole /↓(-) pole) ②... -
Page 5: Quick Installation
V-CELL-HD-A Quick Installation Guide Quick Installation Below is an overview for installing the camera. When using 1) Installation (without Rear Cover) 1. Use camera mounting frame as template to mark mounting holes on mounting surface. (Fig.1) 2. Drill holes for mounting base and a minimum 3/4 in. hole for routing wines. (Fig.1) 3. - Page 6 V-CELL-HD-A Quick Installation Guide 2) Installation (using Rear Cover) 1. Use rear cover as template to mark mounting and cable access holes. 2. Drill mounting and cable access holes in mounting surface. 3. Insert cable clamp into access hole, route cables through clamp and mount cover using appropriate hardware.
-
Page 7: Cable Connections
V-CELL-HD-A Quick Installation Guide 2.2 Cable Connections All cabling is done to the boards located on the back of the front plate. 1) Micro SD memory slot on the Board Card Slot for Micro SD memory: Socket “J10.” (SD card customer-supplied.) 2) Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. - Page 8 V-CELL-HD-A Quick Installation Guide ▶ ID & IP assignment To make changes in the OSD menu, the optional OSD controller can be used to set the camera title and IP address. 1. Connect the OSD Controller to the Service Monitor port of the network camera. 2.
-
Page 9: Network Connection And Ip Assignment
V-CELL-HD-A Quick Installation Guide 2.3 Network Connection and IP assignment The network camera is designed for use on an Ethernet network and requires an IP address for access. Most networks today have a DHCP server that automatically assigns IP addresses to connected devices. By the factory default, your camera is set to obtain the IP address automatically via DHCP server. -
Page 10: Operation
V-CELL-HD-A Quick Installation Guide 3. Operation The network camera can be used with Windows® operating system and browsers. The recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera® and Google® Chrome® with Windows. Note: To view streaming video in Microsoft® Internet Explorer, set your browser to allow ActiveX controls. Note: Some screens may appear different (i.e., color scheme) depending on the firmware version, but the functionality is the same or similar. -
Page 11: Access From The Internet
V-CELL-HD-A Quick Installation Guide 3.2. Access from the Internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. -
Page 12: General Controls
V-CELL-HD-A Quick Installation Guide 1) General controls Live View Page Search & Playback Page Setup Page Help Page The video drop-down list allows the selection of a customized or pre-programmed video stream on the Live View page. Stream profiles are configured under Setup > Basic Configuration > Video &... -
Page 13: Network Camera Setup
V-CELL-HD-A Quick Installation Guide 3.5 Network Camera Setup This section describes how to configure the network camera and is intended for product Administrators, who have unrestricted access to all the Setup tools, and Operators, who have access to the settings for Basic, Live View, Video &... -
Page 14: Resetting To The Factory Default Settings
V-CELL-HD-A Quick Installation Guide 3.6 Resetting to the Factory Default Settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of User’s Manual) or use the Reset button on the network camera, as described below: •... - Page 16 VICON INDUSTRIES INC. For office locations, visit the website: www.vicon-security.com 50304136A...
