3onedata IES7110 Series Quick Installation Manual

IES7110 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. DIN-Rail mounting attachment
3. Power line (AC device standard)
4. Warranty card
5. Certificate
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This series are 100M/Gigabit managed DIN-Rail industrial
Ethernet switches. Models as follows:
Model I. IES7110-2GS-P (12~48VDC)(2 Gigabit SFP + 8
100M copper ports + 2 12~48VDC power supplies)
Model II. IES7110-2GS-P (100~240VAC/DC) (2 Gigabit SFP
+ 8 100M copper ports + 1 100~240VAC/DC power
supply)
Model III. IES7110-2GS-2F-P (12~48VDC)(2 Gigabit SFP + 6
100M copper ports + 2 100M fiber ports + 2
12~48VDC power supplies)
Model IV. IES7110-2GS-2F-P (100~240VAC/DC) (2 Gigabit
SFP + 6 100M copper ports + 2 100M fiber ports +
1 100~240VAC/DC power supply)
Model V. IES7110-2GS-4F-P (12~48VDC)(2 Gigabit SFP + 4
100M copper ports + 4 100M fiber ports + 2
12~48VDC power supplies)
Model VI. IES7110-2GS-4F-P (100~240VAC/DC) (2 Gigabit
SFP + 4 100M copper ports + 4 100M fiber ports +
1 100~240VAC/DC power supply)
Model VII. IES7110-3GS-P (12~48VDC)(3 Gigabit SFP + 7
100M copper ports + 2 12~48VDC power supplies)

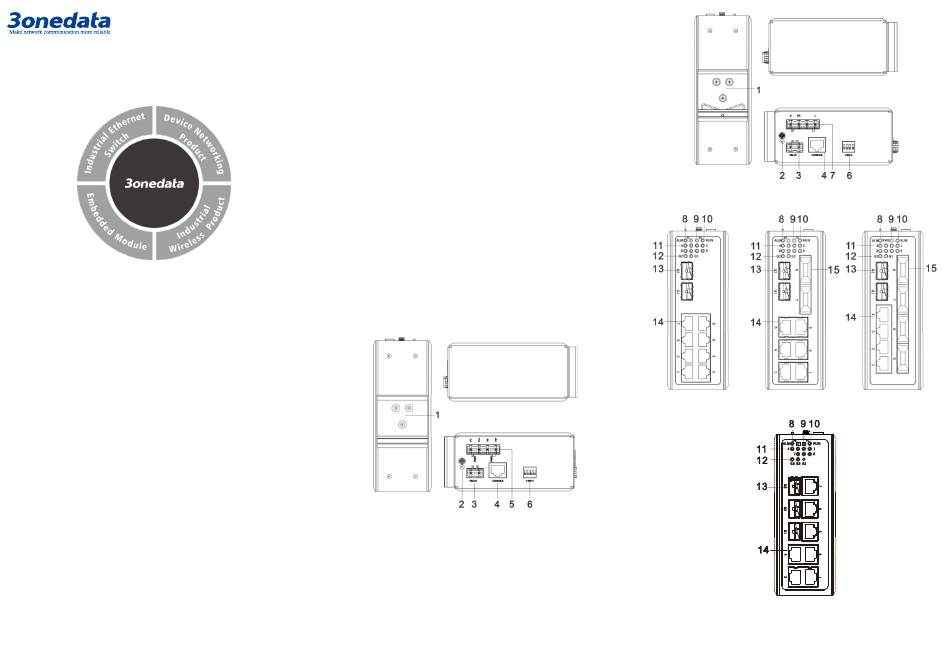

【Panel Design】
Nanshan District,
Rear view, top view and bottom view

Front view of DC products

Model I Model III
Model VII
Front view of AC products

Model V
