Operation

Operation
Note: Determine the left and right sides of the
machine from the normal operating position.

Controls

Motion Control Levers

The motion control levers are located on each side
of the console and control the forward and reverse
motion of the machine.
Moving the levers forward or backward turns
the wheel on the same side forward or reverse
respectively. Wheel speed is proportional to the
amount the lever is moved.
Moving the levers outward from the center position
into the T-slot locks them in the neutral position
(Figure 5).

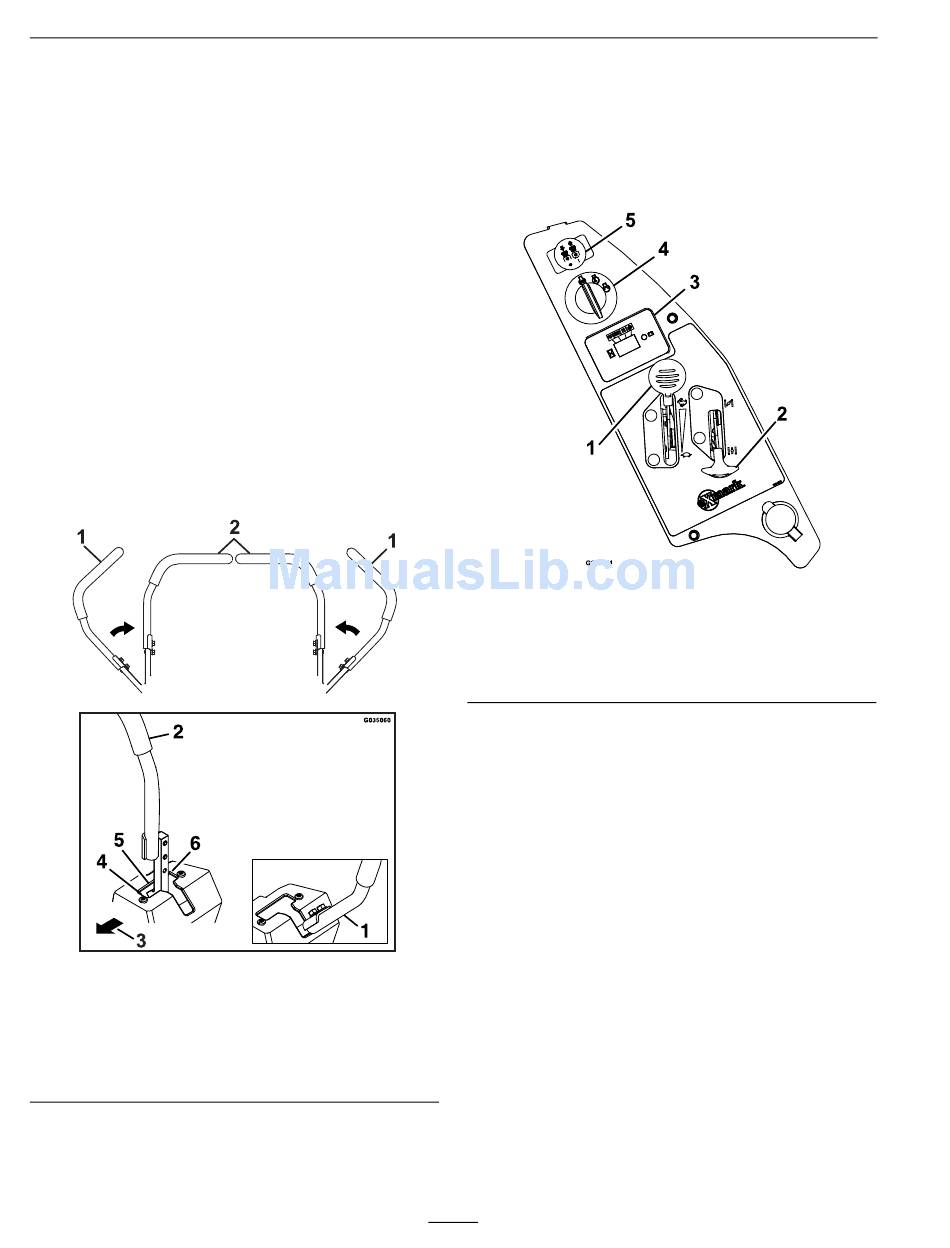

Figure 5
1. Neutral lock position
(handles out)
2. Neutral operate position
(handles in)
3. Front of unit

Choke Control

Located on right console (black lever) (see Figure 6).
4. Forward
5. Neutral (operate)
6. Reverse
The choke is used to aid in starting a cold engine.
Moving the choke lever forward will put the choke in
the "ON" position and moving the choke lever to the
rear, to the detent, will put the choke in the "OFF"
position. Do Not run a warm engine with choke in
the "ON" position.
1. Throttle lever
2. Choke lever
3. Hour meter

Throttle Control

Located on right console (red lever) (see Figure 6).
The throttle is used to control engine speed. Moving
the throttle lever forward will increase engine speed
and moving the throttle lever to the rear will decrease
engine speed. Moving the throttle forward into the
detent is full throttle.

Brake Lever

Located on left side of unit, just to the front of the
LH motion control lever.
The brake lever engages a parking brake on the drive
wheels.
Pull the lever up and rearward to engage the brake.
Push the lever forward and down to disengage the
brake.
24
Figure 6
4. Ignition switch
5. Blade control switch
(power take-off)
