Maintenance
10. With the open end of the wheel facing up, fill
the area inside the wheel around the axle full of
NLGI grade #1 multi-purpose grease.
11. Insert the second bearing and new seal into the
wheel.
12. Apply a thread locking adhesive to the 2nd spacer
nut and thread onto the axle with the wrench flats
facing outward.
13. Torque the nut to 75-80 in-lb (8-9 N-m), loosen,
then re-torque to 20-25 in-lb (2-3 N-m). Make
sure axle does not extend beyond either nut.
14. Reinstall the seal guards over the wheel hub and
insert wheel into caster fork. Reinstall caster bolt
and tighten nut fully.
Important: To prevent seal and bearing damage,
check the bearing adjustment often. Spin the
caster tire. The tire should not spin freely
(more than 1 or 2 revolutions) or have any side
play. If the wheel spins freely, adjust torque on
spacer nut until there is a slight amount of drag.
Reapply thread locking adhesive.

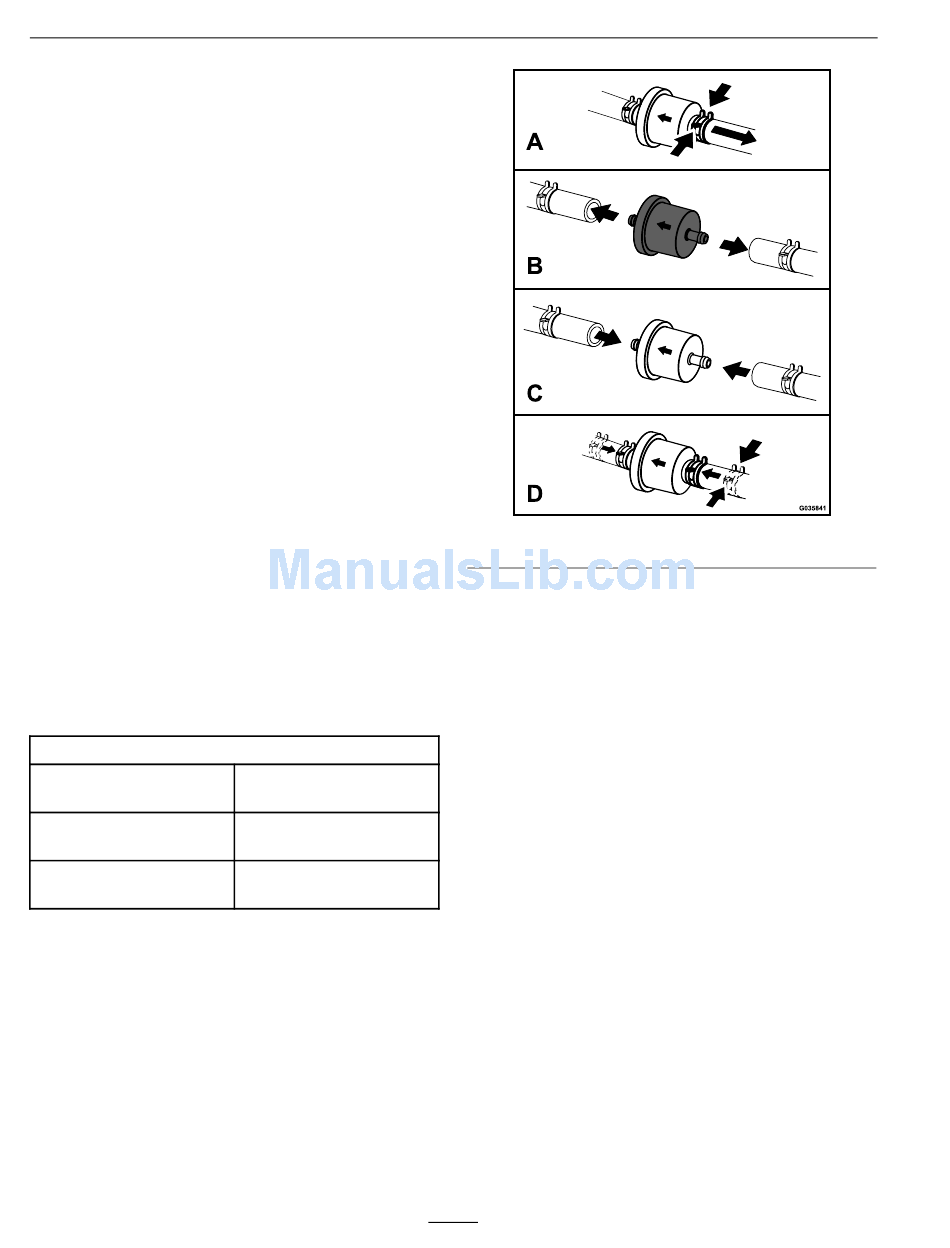

Change Fuel Filter
Service Interval: As required
A fuel filter is installed between the fuel tank and the
engine. Replace when necessary.
Replacement Filters
Exmark
Kohler
Kawasaki
Exmark
P/N 133-1563
Kohler
P/N 24 050 13
Kawasaki
P/N 49019-0014
Note: It is important to reinstall the fuel line hoses
and secure with plastic ties the same as they were
originally installed at the factory to keep the fuel line
away from components that could cause fuel line
damage.
1. Stop engine, wait for all moving parts to stop, and
remove key or spark plug wire(s). Engage parking
brake
2. Squeeze the ends of the hose clamps together and
slide them away from the filter.
3. Remove the filter from the fuel lines.
4. Install a new filter with the flow direction arrow
coming from the fuel tank and pointing to the
engine. Move the hose clamps close to the filter
to secure it in place.
Replace Emissions Air Intake
Filter (If Applicable)
Service Interval: Every 500 hours
1. Stop engine, wait for all moving parts to stop, and
remove key or spark plug wire(s). Engage parking
brake.
2. Remove the filter from the vent hose.
3. Insert a new filter into the end of the vent hose.
60
Figure 63
