Exmark FR524 Parts Manual
Exmark mfg. co. inc. lawn mower parts manual
Hide thumbs
Also See for FR524:
- Operator's & parts manual (28 pages) ,
- Operator's manual (28 pages) ,
- Setup instructions (4 pages)
Related Manuals for Exmark FR524
Summary of Contents for Exmark FR524

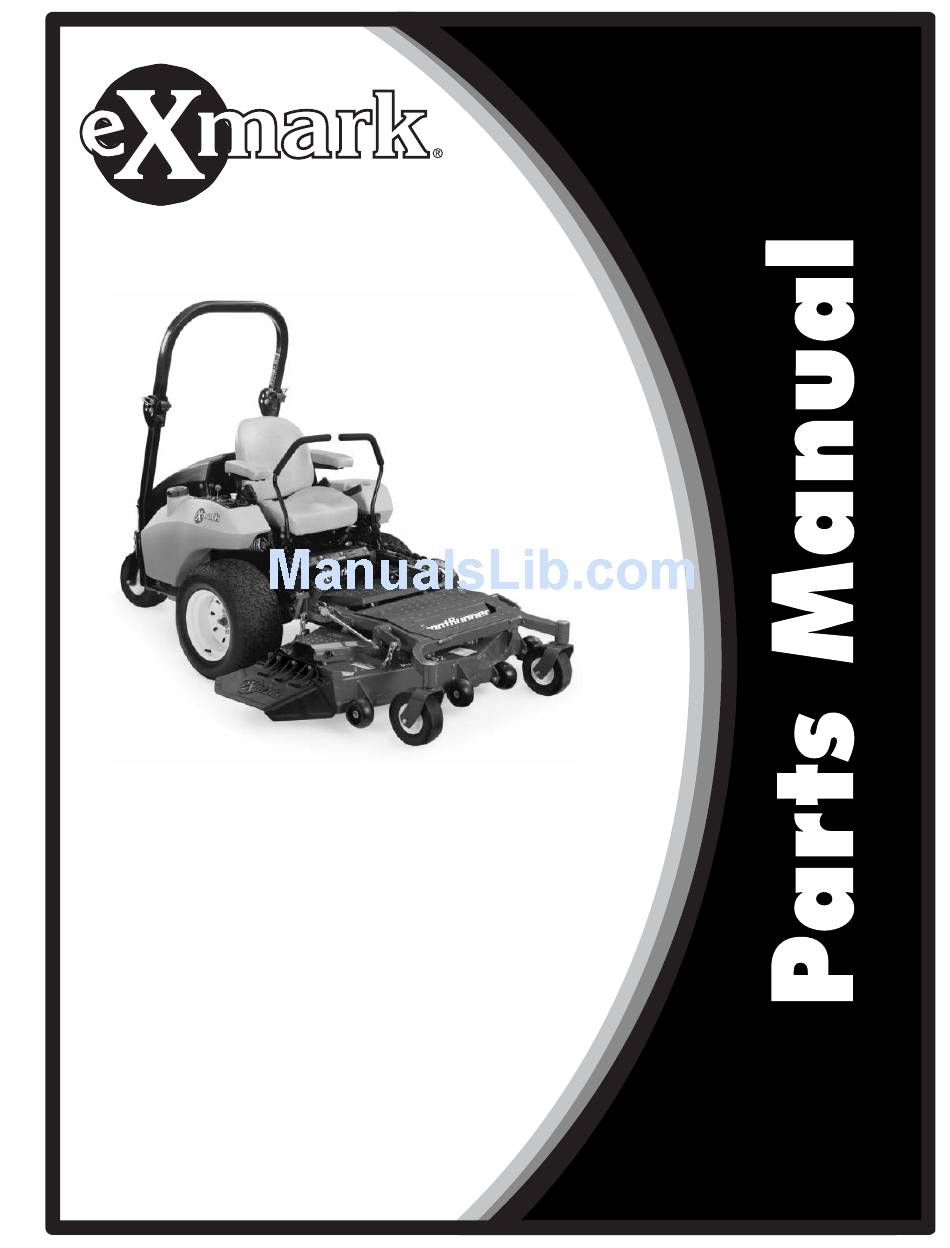

- Page 1 FR524/FR604/ FR724 For Serial Nos. 720,000 & Higher Part No. 4500-231 Rev. A...
- Page 3 READ OPERATOR’S MANUAL BEFORE OPERATING OR SERVICING EXMARK EQUIPMENT. TABLE OF CONTENTS Description Page Decal Group ... 9 Deck Group ... 4-5 Front Frame Group ... 6-7 Gearbox Components ... 8...
- Page 4 323-12 Screw, HH 3/8-16 x 2 1/2 ...3 Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140). Kit also includes items #2. & #37 Complete deck assembly includes all items from pages 4 & 6 except drive shaft assembly, drive shaft assembly hardware, deck chain, and deck chain hardware on page 5.
- Page 5 FR524, FR604, FR724 DECK GROUP...
- Page 6 Guard, Seal... 1 21 103-7959 Gearbox ... 1 Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140). Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrews, items #33 and #38. Qty.
-
Page 7: Spindle Assembly
Item Part No. Description 3217-46 Nut, Hex 3/4-16 Heavy...3 103-1330 Guard, Bearing Top ...3 103-2535 Spacer, Guard Bottom ...3 103-2794 Sheave, Blade Drive (52” & 60”)...3 103-2795 Sheave ,Blade Drive (72”) ...3 103-2802 Washer, Spring Disc 3/4 ...3 103-2982 Key, Machine 1/4 x 3/16 x 3/4 ...3 103-9086 Kit, Spindle ...3 103-3037... -
Page 8: Front Frame Group
Asm, Front Cover W/Decal ...1 3296-51 Nut, Nyloc 3/4-10 ...2 32120-47 Ring, Retaining ...2 Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140). FRONT FRAME GROUP Qty. Item Part No. 109-0636... - Page 9 Wld, Lock Lever LH ...1 109-2206 Wld, Lock Lever RH...1 109-2760 Arm, PTO Switch ...1 Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140). FRONT FRAME GROUP (cont.) Qty. Item Part No. 323-34...
-
Page 10: Decal Group
Item Part No. Description 1-303508 Decal, Discharge Warning ...1 1-643222 Decal, Belt Routing ...1 103-8425 Decal, Driveline...2 1-633922 Decal, Antiscalp ...1 109-2359 Decal, Deck Warning ...1 109-2376 Decal, Crushing Hazard ...1 98-5954 Decal, Missing Cover ...3 109-3148 Decal, Bolt Torque ...1 DECAL GROUP Qty. -
Page 11: Service Record
SERVICE RECORD Date Description of Work Done Service Done By... - Page 12 © 2005—2008 Exmark Mfg. Co., Inc. Industrial Park Box 808 Beatrice, NE 68310 All Rights Reserved Part No. 4500-231 Rev. A (402) 223-6300 Fax (402) 223-5489 Printed In USA.
