Adjustments

Note: Disengage PTO, shut off engine, wait for
all moving parts to stop, engage parking brake, and
remove key before servicing, cleaning, or making any
adjustments to the unit.
CAUTION
Raising the mower deck for service or
maintenance relying solely on mechanical
or hydraulic jacks could be dangerous. The
mechanical or hydraulic jacks may not be enough
support or may malfunction allowing the unit to
fall, which could cause injury.
Do Not rely solely on mechanical or hydraulic
jacks for support. Use adequate jack stands or
equivalent support.

Deck Leveling

1. Position the mower on a flat surface.
2. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
3. Check the tire pressure in the drive tires. Proper
inflation pressure for tires is 13 psi (90 kPa).
Adjust if necessary.
4. Position the transport lock in the latching
position.
5. Carefully rotate the blades from side to side.
6. Measure between the outside cutting edges and
the flat surface (Figure 65). If both measurements
are not within 3/16 inch (5 mm), an adjustment is
required; continue with this procedure.

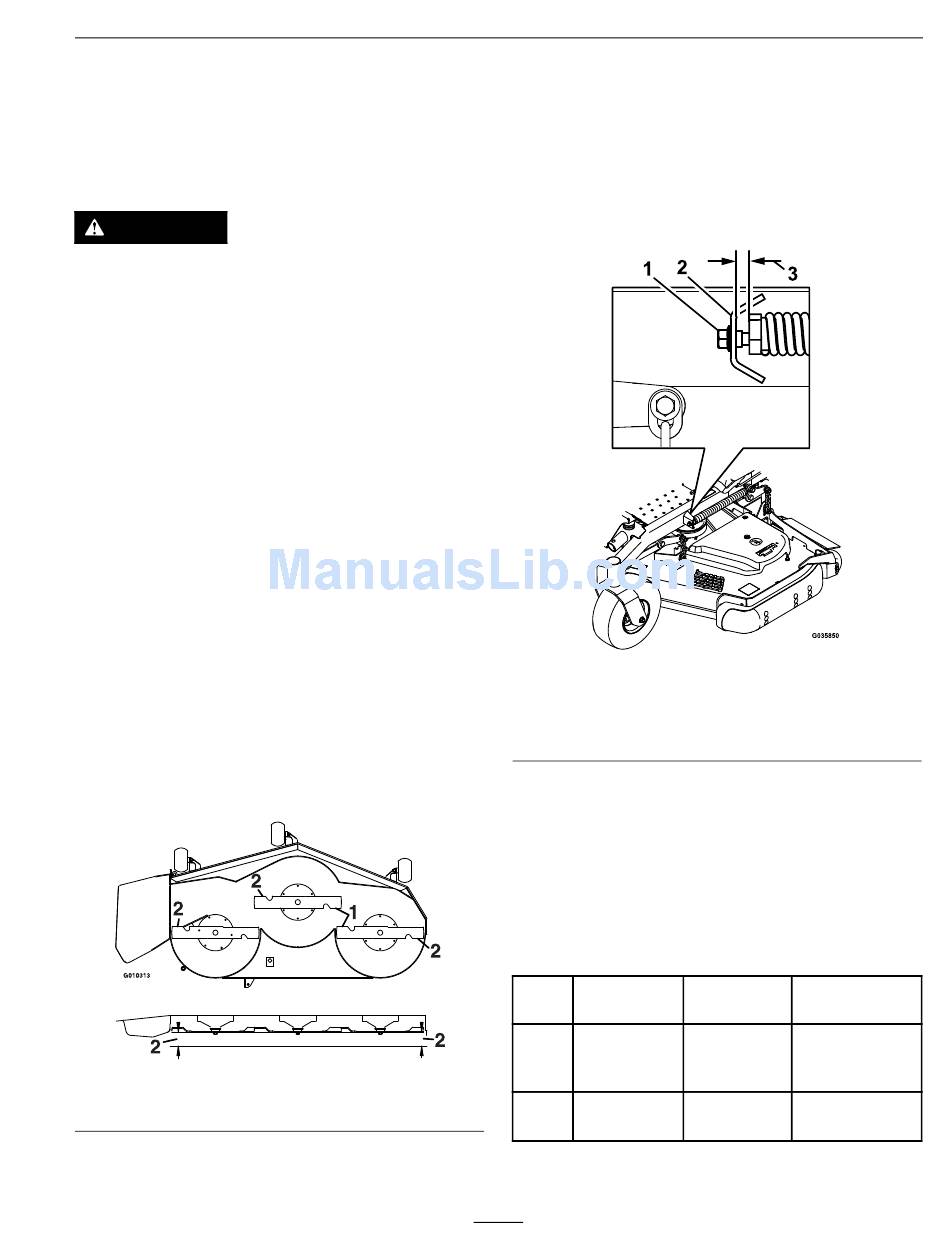

Figure 65
1. Blades side to side
7. Set anti-scalp rollers to top holes or remove
completely for this adjustment.
2. Measure here
8. For 60 Inch Decks Only:
A. Raise the deck to the transport (5 inch (12.7
cm) cutting height) position.
B. Slowly loosen the adjusting screw on the
lift assist spring until the screw can be
removed (see Figure 66). Save the screw for
reinstallation.
1. Adjusting screw
2. Bracket
9. Set the height-of-cut lever to the 3 inch (76 mm)
position. Place two "B" thick blocks (see Block
Height and Rake Table) under the rear edge of the
cutting deck skirt; one on each side of the cutting
deck. Place two "A" thick blocks under each side
of the front edge of the deck, but not under the
anti-scalp roller brackets.
S and E-Series—Block Height and Rake Table
Deck Front Block
Size Height "A"
48, 2.56 inches
52, &
(6.5 cm)
60
60R
2.63 inches
(6.7 cm)
63
Maintenance
Figure 66
3. Set gap to 3/4–7/8 inch
(19–22 mm)
Rear Block Rake "R"
Height "B"
2.81 inches
1/16–5/16 inch
(7.1 cm)
(1.6–7.9 mm)
2.63 inches 0–1/8 inch
(6.7 cm)
(0–3.2 mm)
