Torque Requirements

Bolt Location
X-Series:
Blade Drive Sheave
Mounting Nut
S- and E-Series:
Blade Drive Sheave
Mounting Nut
Blade Mounting
Bolt (lubricate with
anti-seize)
Anti-Scalp Roller
Nyloc Nut — Side
Discharge Units Only
(See Figure 18 )
Anti-Scalp Roller
Nyloc Nut — Rear
Discharge Units Only
(See Figure 19 )
Engine Mounting Bolts
Wheel Lug Nuts
Rollover Protection
System (Roll Bar) 1/2
inch Mounting Bolts
Clutch Retaining
Bolt (secured with
threadlocker)
Rear Discharge Side
Bumpers
Torque
130-160 ft-lb (176-217 N-m)
75-85 ft-lb (102-115 N-m)
50-60 ft-lb (68-81 N-m)
50-55 ft-lb (68-75 N-m)
30-35 ft-lb (41-47 N-m)
27-33 ft-lb (37-45 N-m)
90-100 ft-lb (122-136 N-m)
90-100 ft-lb (122-136 N-m)
49-61 ft-lb (66-83 N-m)
10-12 ft-lb (14-16 N-m)

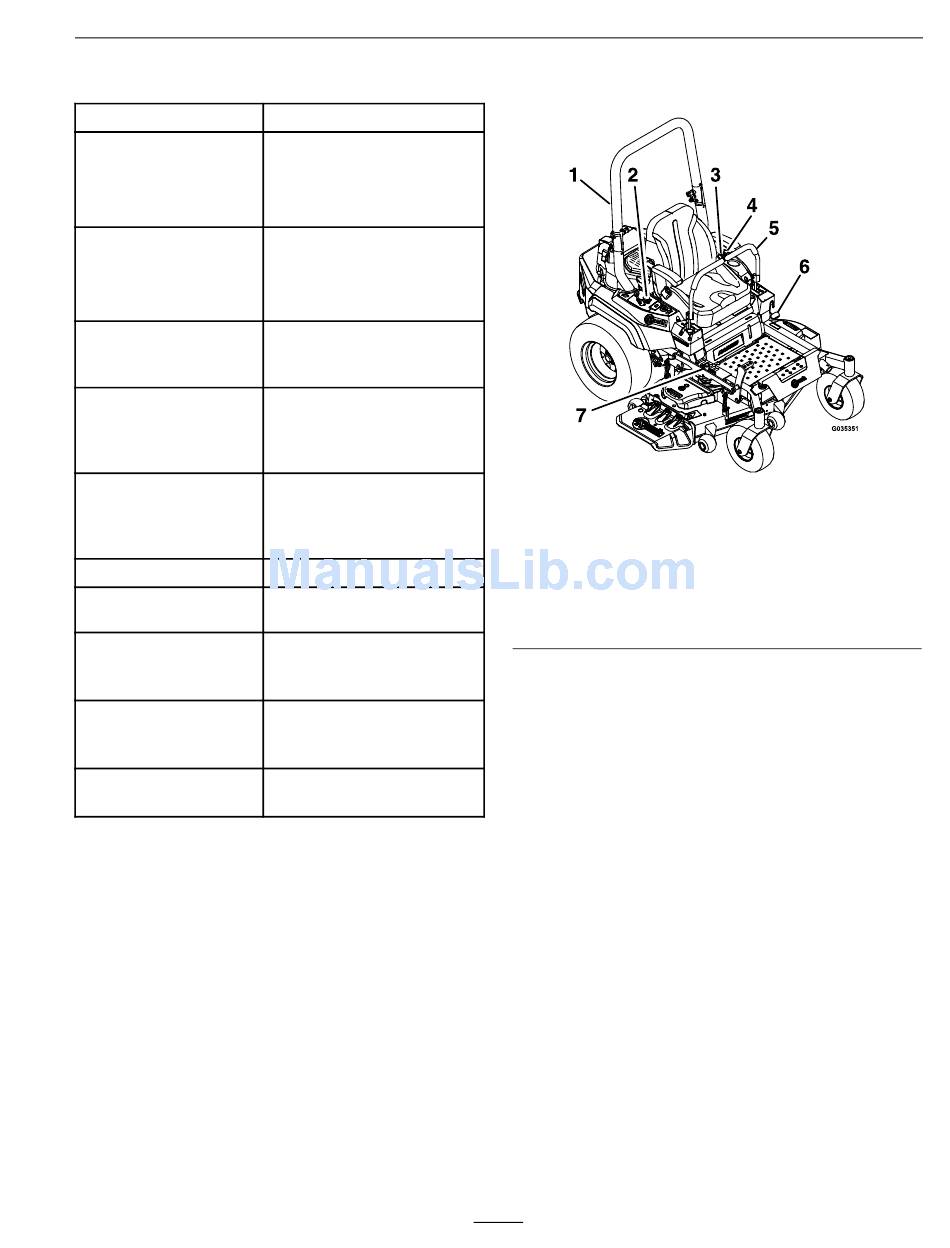

Product Overview

1. Rollover Protection
System (ROPS)
2. Engine Controls (right
console)
3. Seat belt
4. Fuel cap
23
Product Overview
Figure 4
5. Motion control levers
6. Parking brake
7. Height of cut adjustment
