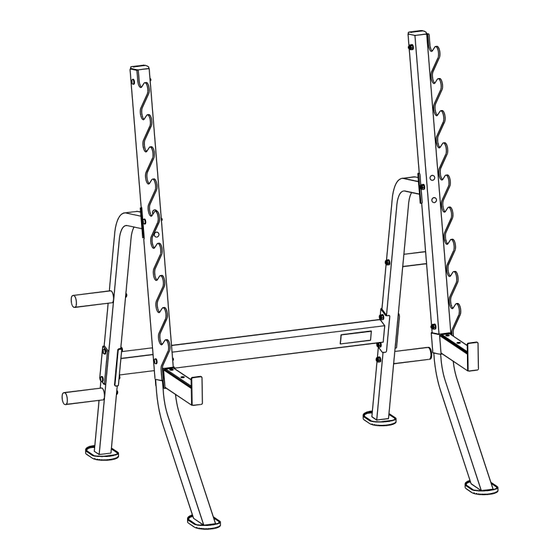

XM-7619
SQUAT RACK
Owner's Manual
8/09

Advertisement

Table of Contents
loading

Related Manuals for Mark Fitness XM-7619

Summary of Contents for Mark Fitness XM-7619

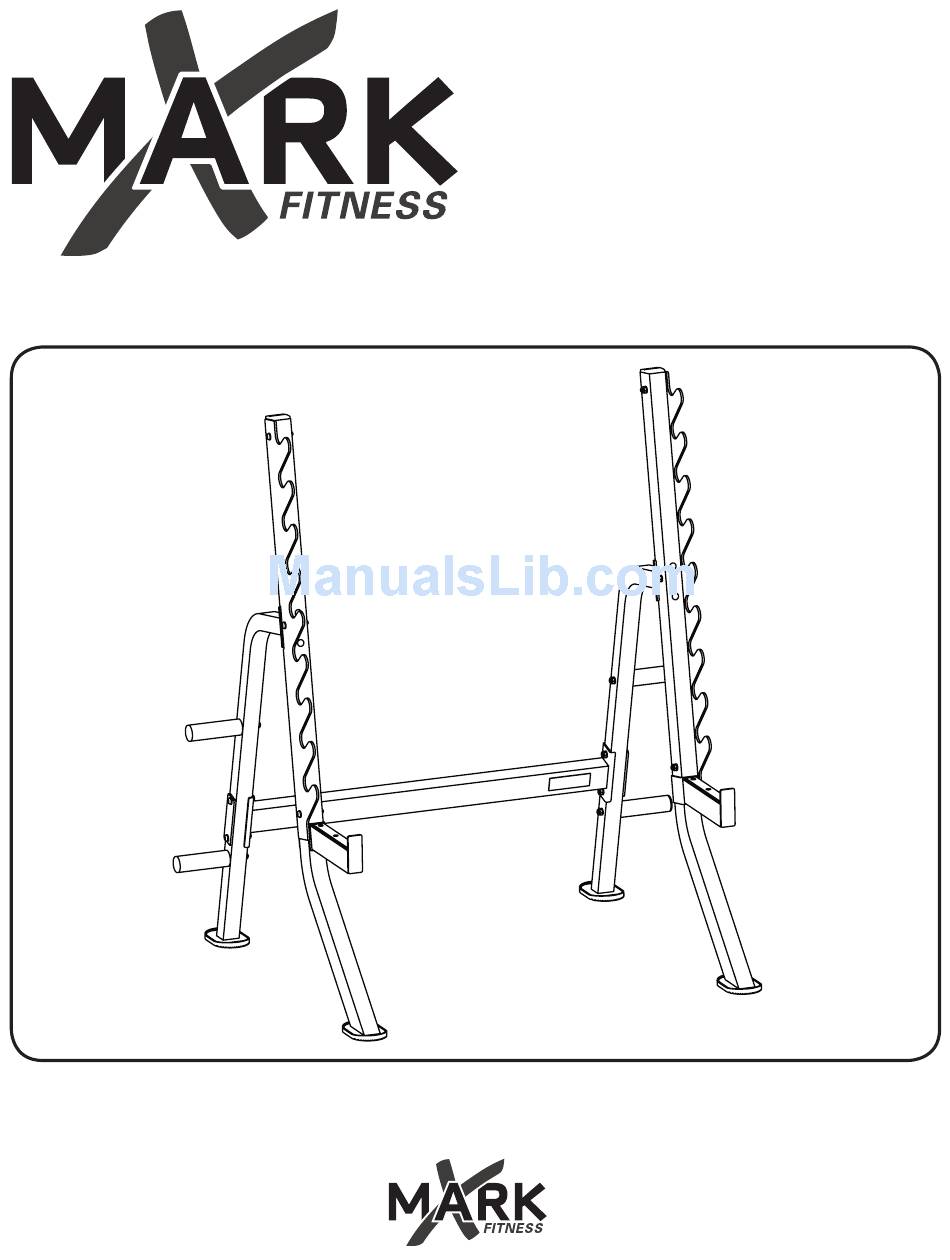

  • Page 1 XM-7619 SQUAT RACK Owner’s Manual 8/09...
  • Page 2 Table of Contents Important Safety Information...

  • Page 3: Important Safety Information

    Important Safety Information NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. SAFETY INFORMATION WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre- existing health problems.

  • Page 4: Before You Start

    7501 Trammel Drive Shreveport, LA 71108 QUESTIONS? CALL 1-800-719-4605 Monday-Friday 8:30 a.m.-5:00 p.m. XMARK FITNESS SERIES (Central Standard Time) MODEL: XM-7619 When calling please have the following product information available: Model Name : Date Mfg.: Serial # Model Name Decal Location...
  • Page 5 Assembly...
  • Page 6 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 1 Attach two Rear Support Frame (#2) to The Cross Frame (#3), using: • four M10*75 Button Head Cap Screws (#14) • eight Φ11*Φ20*1.5 Flat Washers (#12) •...
  • Page 7 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 2 Attach one Bar Rack (#6) to one Upright Frame (#1), Using: • three M10*75 Button Head Cap Screws (#14) • six Φ11*Φ20*1.5 Flat Washer (#12) •...
  • Page 8 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 3 Attach two Upright Frames (#1) to two Rear Support Frames (#2), Using: • four M10*95 Carriage Bolts (#13) • four Φ11*Φ20*1.5 Flat Washers (#12) •...
  • Page 9 Assembly NOTE: Wrench tighten bolts and Nylon Lock nuts. Step 4 Attach the Right Safety Bar (#4) and the Left Safety Bar (#5) to two Upright Frame (#1). Attach four Weight Storage Post (#7) to two Rear Support Frames (#2), using: •...

  • Page 10: Parts List

    Parts List XM-7619 Parts List Upright Frame, XM-7619 P00086 P00087 Rear Support Frame, XM-7619 P00520 Cross Frame, XM-7619 P00320 Right Safety Bar, XM-7619 Left Safety Bar, XM-7619 P00321 P00521 Bar Rack, XM-7619 P00522 Weight Storage Post, XM-7619 P00674 Plate P00555...

  • Page 11: Exploded View

    Exploded View...
  • Page 12 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
