Mark Fitness XM-7618 Owner's Manual

Lat machine
Hide thumbs

Advertisement

Quick Links

XM-7618
LAT MACHINE
Owner's Manual

Advertisement

loading

Related Manuals for Mark Fitness XM-7618

Summary of Contents for Mark Fitness XM-7618

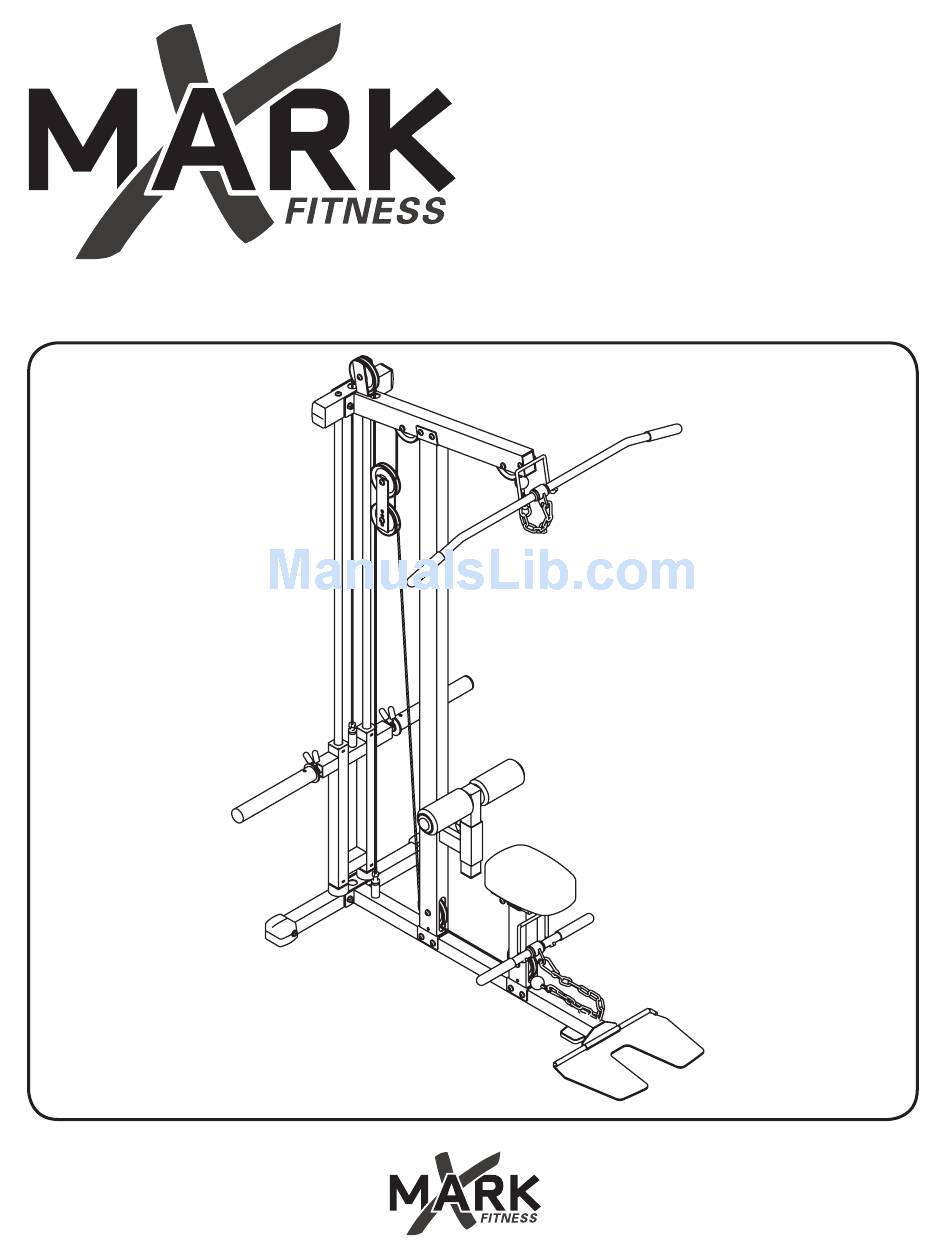

  • Page 1 XM-7618 LAT MACHINE Owner’s Manual...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Information Before You Start Assembly 5-12 Parts List Exploded View...

  • Page 3: Important Safety Information

    Important Safety Information NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. SAFETY INFORMATION WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre- existing health problems.

  • Page 4: Before You Start

    Visit www.xmarkfitness.com for warranty information QUESTIONS? CALL 1-800-719-4605 Monday-Friday 8:30 a.m.-5:00 p.m. XMARK FITNESS SERIES (Central Standard Time) MODEL: XM-7618 When calling please have the following product information available: Model Name : Date Mfg.: Serial # Model Name Decal Location...

  • Page 5: Assembly

    Assembly...
  • Page 6 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 1 Connect Main Base (#1) to the Rear Base (#2) using: • two M10*80 Button Head Cap Screw (#34) • four Φ11*Φ20*2 Flat Washer (#31) •...
  • Page 7 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 2 Slide Weight Bumppers (#24) and Slide Weight Support (#12) onto guide rods (#9) as shown. Connect Upright (#3) to the Main Base (#1) using: •...
  • Page 8 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 3 Slide Top Cross Frame (#5) on top of Guide Rod (#9) and secure using: • two M10*25 Button Head Cap Screw (#36) • two Φ11*Φ20*2 Flat Washer (#31) Attach Top Frame (#4) to the Upright (#3) using: •...
  • Page 9 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 4 Start by attaching the High Pully Cable (#15) to Slide Weight Support (#12) using: • one 1/2"-12 Jam Nut (#44) Attach one Big Pulley (#21) to the Top Frame (#4) using: •...
  • Page 10 Assembly Step 4...
  • Page 11 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 5 Complete leg hold down assembly using: • one Roller Pad Frame (#10) • two Foam Padding (#30) • two Plastic Washer (#42) • two Metal End Cap (#43) Complete Seat Pad (#20) assembly using: •...
  • Page 12 Assembly NOTE: Wrench Tighten above all bolts and Nylon Locknuts. Step 6 Silde two Adapters (#50) to the Slide Weight Support (#12) and secure using: • two M8*6 Screw (#49) For standard plate do not slide the Adapters (#50) on, just using two Spring Clip (#56) hold the plate off from the Slide Weight Support (#12).

  • Page 13: Parts List

    Parts List XM-7618 Parts List Ref # Part # Description P00279 Main Base P00280 Rear Base P00449 Upright P00450 Top Frame P00451 Top Cross Frame P00452 Seat Support P00453 Seat Pad Tube P00676 Lat Bar Hook GYM P00454 Guide Rod...

  • Page 14: Exploded View

    Exploded View 37 37 57 57 31 31 33 33...
  • Page 15 Customer Service: 1-800-719-4605...
