Mark Fitness XM-7602 Owner's Manual

Flat bench
Hide thumbs

Advertisement

Quick Links

Download this manual
XM-7602
FLAT BENCH
Owner's Manual
8/09

Advertisement

loading

Related Manuals for Mark Fitness XM-7602

Summary of Contents for Mark Fitness XM-7602

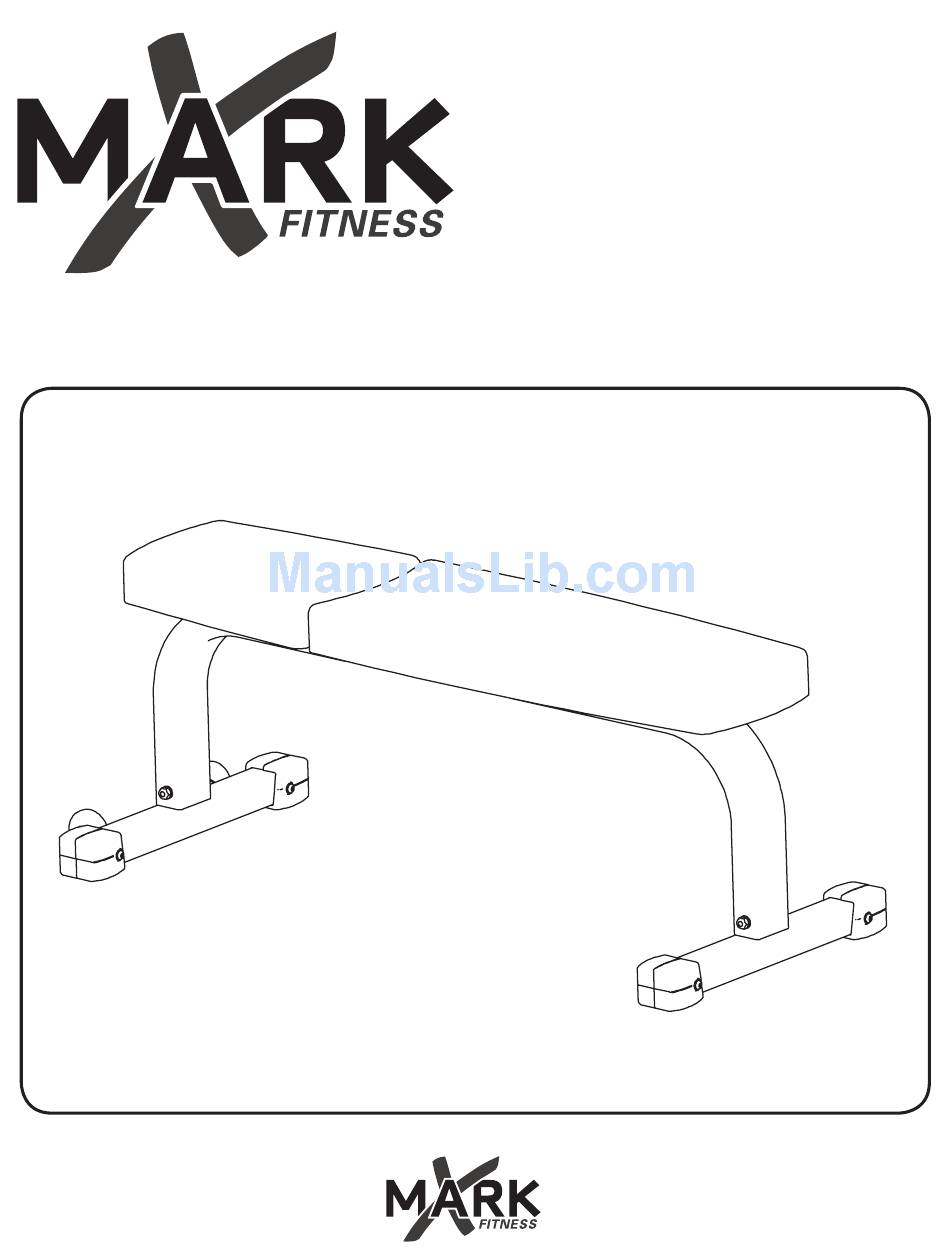

  • Page 1 XM-7602 FLAT BENCH Owner’s Manual 8/09...

  • Page 2: Table Of Contents

    Table Of Contents Important Safety Information Before You Start Assembly Parts List Exploded View Warranty Information...

  • Page 3: Important Safety Information

    Important Safety Information NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. SAFETY INFORMATION WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre- existing health problems.

  • Page 4: Before You Start

    7501 Trammel Drive Shreveport, LA 71108 QUESTIONS? CALL 1-800-719-4605 Monday-Friday 8:30 a.m.-5:00 p.m. XMARK FITNESS SERIES (Central Standard Time) MODEL: XM-7602 When calling please have the following product information available: Model Name : Date Mfg.: Serial # Model Name Decal Location...

  • Page 5: Assembly

    Assembly...

  • Page 6: Assembly

    Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 1 Attach the U base (#3) to the Front cross frame (#1) using: • one M10*90 Button Head Cap Screw (#12) • two Φ11*Φ23*2 Flat Washer (#10) •...
  • Page 7 Assembly NOTE: Wrench Tighten bolts and Nylon Lock nuts. Step 2 Attach the Large Back Pad (#4) and Small Back Pad (#5) to the U base (#3) using: • four M10*75 Button Head Cap Screw (#13) • four Φ11*Φ23*2 Flat Washer (#10)

  • Page 8: Parts List

    Parts List XM-7602 Parts List Ref # Part # Description P00238 Frame, Front Cross XM-7602 P00239 Frame, Rear Cross XM-7602 P00240 U Base Frame, XM-7602 P00041 Large Back Pad, XM-7602 P00042 Small Back Pad P00153 Foot Cap, Right 50.8 XM Series P00154 Foot Cap, Left 50.8 XM Series...

  • Page 9: Exploded View

    Exploded View...

  • Page 10: Warranty Information

    XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
