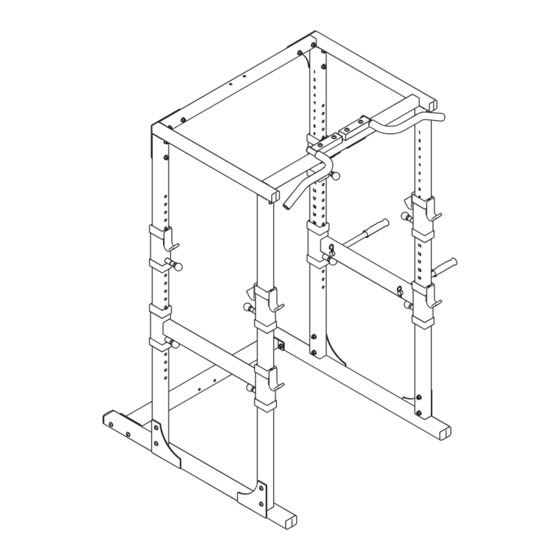

POWER CAGE
Owner's Manual
8/09

Advertisement

loading

Related Manuals for Mark Fitness XM-7620

Summary of Contents for Mark Fitness XM-7620

  • Page 1 XM-7620 POWER CAGE Owner’s Manual 8/09...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Information Before You Start Assembly Parts List Exploded View...

  • Page 3: Important Safety Information

    Important Safety Information NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. SAFETY INFORMATION WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre- existing health problems.

  • Page 4: Before You Start

    Visit www.xmarkfitness.com for warranty information QUESTIONS? CALL 1-800-719-4605 Monday-Friday 8:30 a.m.-5:00 p.m. XMARK FITNESS SERIES (Central Standard Time) MODEL: XM-7620 When calling please have the following product information available: Model Name : Date Mfg.: Serial # Model Name Decal Location...

  • Page 5: Assembly

    Assembly...
  • Page 6 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 1 Attach four Round Bumper (#19) to the Left Frame (#11) and the Right Frame (#12). Attach the Left Frame (#11) and the Rright Frame (#12) to the Rear Frame (#10) using: •...
  • Page 7 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 2 Attach each of the four Uprights (#1, #2, #3, #4) to the Left Frame (#11), the Right Frame (#12) and the Rear Frame (#10) using: •...
  • Page 8 Attach the Left Slide Cross Weight Holder, XM-7620 (#8), the Right Slide Cross Weight Holder, XM-7620 (#9 ), two Rear Weight Slide Holder, XM-7620 (#6) and two Front Weight Slide Holder, XM-7620 (#7) to the four Uprights (#1, #2, #3,#4).
  • Page 9 Assembly NOTE: Wrench tighten bolts and Nylon Lock nuts. Step 4 Attach the Top Frame, XM-7620 (#5) to the four Uprights (#1, #2, #3, #4) with two Steel Plate, XM-7620 (#16) using: • four M12*100 Button Head Cap Screw (#28) •...

  • Page 10: Parts List

    Rright Rear Upright, XM-7620 P00088 Top Frame, XM-7620 P00310 Rear Weight Slide Holder, XM-7620 P00311 Front Weight Slide Holder, XM-7620 P00492 Left Slide Cross Weight Holder, XM-7620 P00493 Right Slide Cross Weight Holder, XM-7620 P00089 Rear Frame P00090 Left Frame P00091...

  • Page 11: Exploded View

    Exploded View 32 31 32 31...
  • Page 12 Customer Service: 1-800-719-4605...
