XM-7609
45 DEGREE
HYPEREXTENSION
Owner's Manual
8/09

Advertisement

loading

Related Manuals for Mark Fitness XM-7609

Summary of Contents for Mark Fitness XM-7609

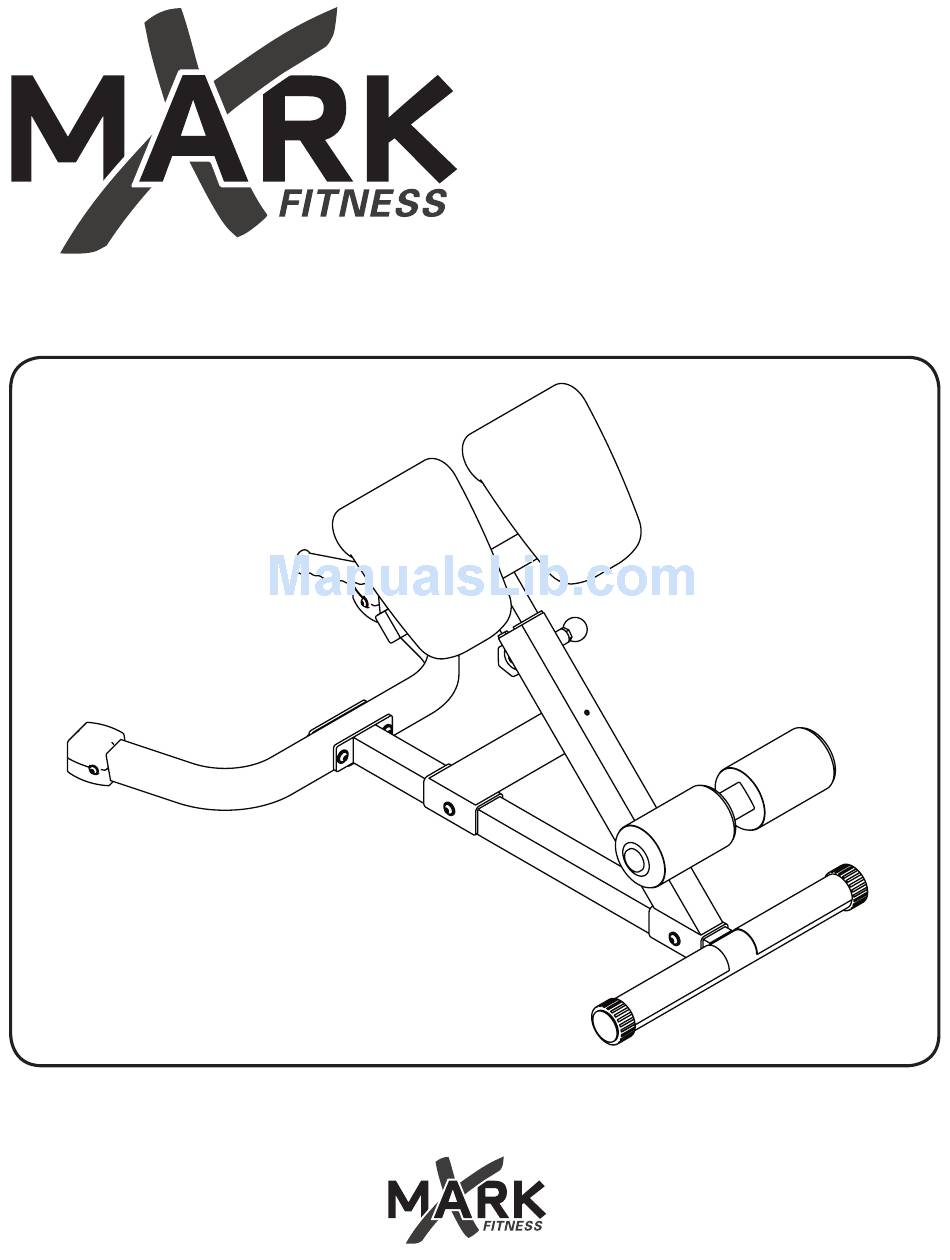

  • Page 1 XM-7609 45 DEGREE HYPEREXTENSION Owner’s Manual 8/09...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Information Before You Start Assembly 5-10 Parts List Exploded View Warranty Information...

  • Page 3: Important Safety Information

    Important Safety Information NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. SAFETY INFORMATION WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre- existing health problems.

  • Page 4: Before You Start

    7501 Trammel Drive Shreveport, LA 71108 QUESTIONS? CALL 1-800-719-4605 Monday-Friday 8:30 a.m.-5:00 p.m. XMARK FITNESS SERIES (Central Standard Time) MODEL: XM-7609 When calling please have the following product information available: Model Name : Date Mfg.: Serial # Model Name Decal Location...

  • Page 5: Assembly

    Assembly...
  • Page 6 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 1 Attach the "T" Base Frame (#2) to the "U" Base Frame (#1) using: • two M10*80 Button Head Cap Screw (#19) • four Φ11*Φ20*1.5 Flat Washer (#23) •...
  • Page 7 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 2 Attach the Main Frame (#3) to the "T" Base Frame (#2) using: • two M10*80 Button Head Cap Screw (#19) • four Φ11*Φ20*1.5 Flat Washer (#23) •...
  • Page 8 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 3 Attach the Foam Tube (#7) and two Foam Padding (#9) to the Main Frame (#3) using: • two Metal End Cap (#11) • two Plastic Washer (#28)
  • Page 9 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 4 Attach the Adjustment Frame (#4) to the Main Frame (#3), and lock into place using Pop Pin (#6) and Knob Bolt (#5).
  • Page 10 Assembly NOTE: Wrench tighten bolts and Nylon Lock nuts. Step 5 Attach two Chest Pads (#13) to the Adjustment Frame (#4) using: • four M10*30 Button Head Cap Screw (#20) • four Φ11*Φ20*1.5 Flat Washer (#23)

  • Page 11: Parts List

    Parts List XM-7609 Parts List Ref # Part # Description P00198 "U" Base Frame, XM-7609 P00380 "T" Base Frame, XM-7609 P00199 Main Frame, XM-7609 P00200 Adjustment Frame, XM-7609 P00571 Knob Bolt P00203 Pop Pin XM Series P00050 Foam Tube, XM Series P00153 Foot Cap,Right 50.8 XM Series...

  • Page 12: Exploded View

    Exploded View...

  • Page 13: Warranty Information

    XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
