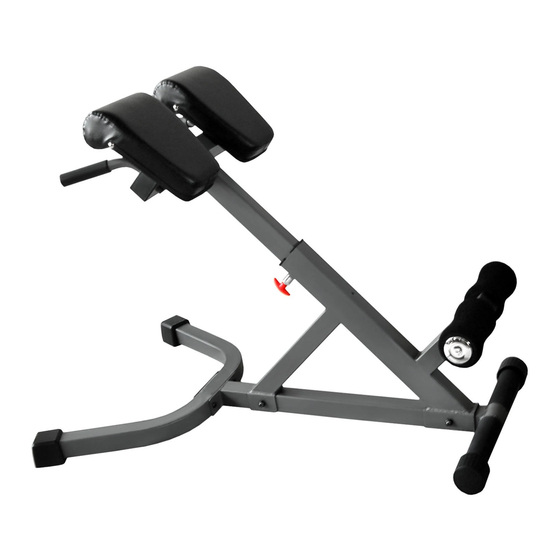

XM-4428
45 DEGREE
HYPEREXTENSION
Owner's Manual
!CAUTION
Read all precautions and
instructions in this manual before
8/09
using this equipment.

Advertisement

loading

Related Manuals for Mark Fitness XM-4428

Summary of Contents for Mark Fitness XM-4428

  • Page 1 XM-4428 45 DEGREE HYPEREXTENSION Owner’s Manual !CAUTION Read all precautions and instructions in this manual before 8/09 using this equipment.

  • Page 2: Table Of Contents

    Table of Contents Before You Begin Assembly Parts List Exploded View Warranty Information NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. Prior to assembly, remove components from the box and verify that all the listed parts were supplied.

  • Page 3: Before You Begin

    7501 Trammel Drive Shreveport, LA 71108 QUESTIONS? CALL 1-800-719-4605 Monday-Friday 8:30 a.m.-5:00 p.m. XMARK FITNESS SERIES (Central Standard Time) MODEL: XM-4428 When calling please have the following product information available: Model Name : XM-4428 Date Mfg.: Serial # Model Name Decal Location...

  • Page 4: Assembly

    Assembly NOTE: Hand tighten bolts and lock nuts until machine if fully assembled. STEP 1 Connect the Main Frame (2) to U Base Frame (1) and secure it with M10X70 Bolts (19) and Lock Nuts (18). Make sure that the Main Frame show Non Skid Pad (17) is facing up when connecting to the U Base Frame (1).
  • Page 5 Assembly NOTE: Hand tighten bolts and lock nuts until machine if fully assembled. STEP 2 Slide Main Upright (3) down onto Main Frame (2) and secure with M10X70MM Bolts (19) and Lock Nuts (18).
  • Page 6 Assembly NOTE: Hand tighten bolts and lock nuts until machine if fully assembled. STEP 3 Slide Foam Roller Tube (6) into Main Upright (3). Place Foam Rollers (8) onto Foam Roller Tube (6) and secure with Foam Roller Caps (9).
  • Page 7 Assembly NOTE: Hand tighten bolts and lock nuts until machine if fully assembled. STEP 4 Slide Adjustment Frame (4) into Main Upright (3). Pull Pop Pin (5) in order to choose different settings in Adjustment Frame (4).
  • Page 8 Assembly NOTE: Hand tighten bolts and lock nuts until machine if fully assembled. STEP 5 Secure Pads (11) to Adjustment Frame (4) with M8X15mm Bolts (20).

  • Page 9: Parts List

    Parts List XM-4428 Parts List Key NO. Part No. Description 204053604503 BASE FRAME, U-SHAPED , XM - 4428 204053601503 MAIN FRAME, XM - 4428 204053602503 MAIN UPRIGHT, XM - 4428 204053603503 ADJUSTMENT FRAME , XM - 4428 802900300002 POP PIN, LOCKING T-SHAPED...

  • Page 10: Exploded View

    Exploded View...

  • Page 11: Warranty Information

    XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
