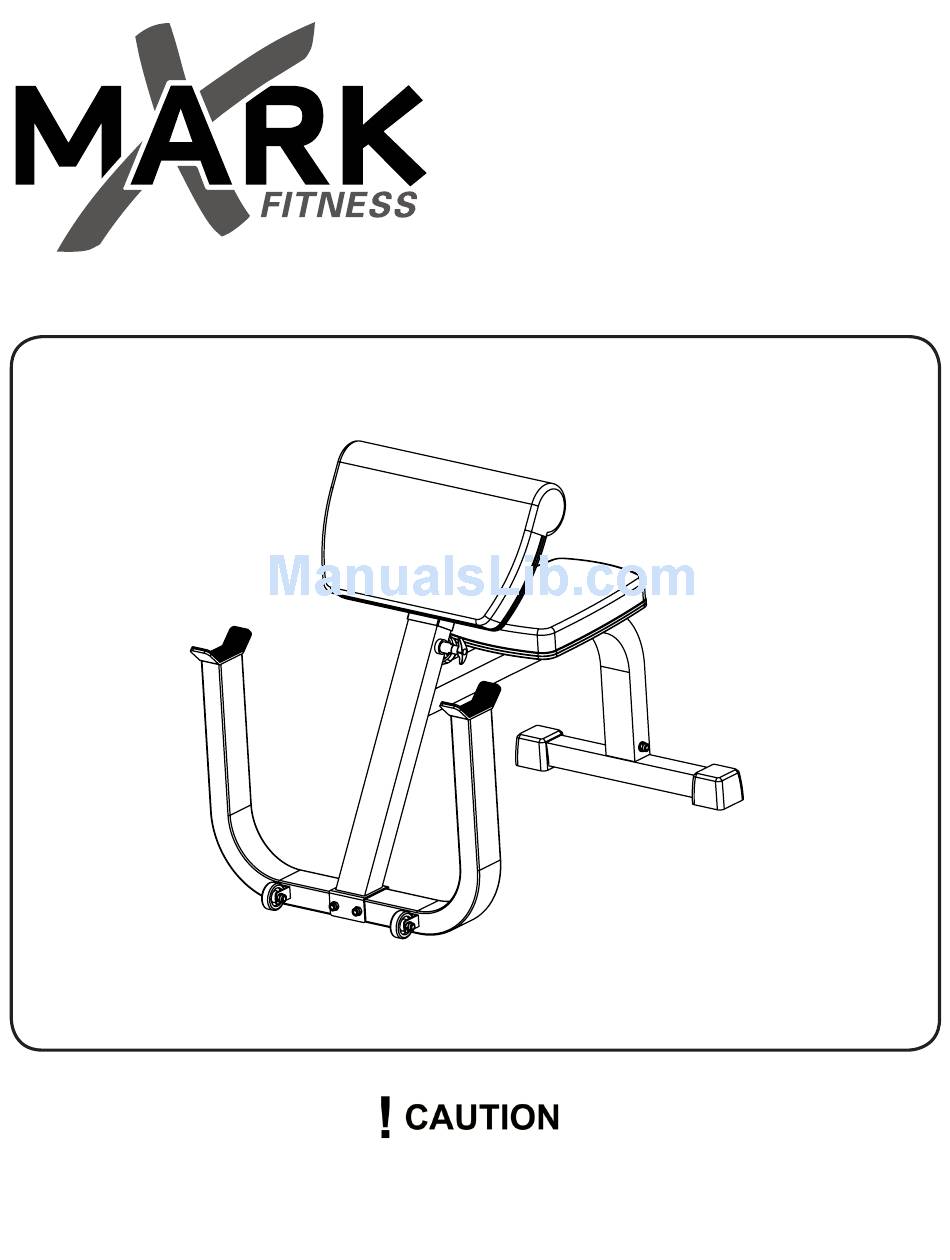

- Page 1 XM-4436 SEATED PREACHER CURL Owner’s Manual Read all precautions and instructions in this manual before using this equipment. 8/09...
-
Page 2: Table Of Contents
Table of Contents Before You Begin Assembly Parts List Exploded View Warranty Information SAFETY INFORMATION WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre- existing health problems. -
Page 3: Before You Begin
Shreveport, LA 71108 QUESTIONS? CALL 1-800-719-4605 Monday-Friday XMARK FITNESS SERIES 8:30 a.m.-5:00 p.m. (Central Standard Time) MODEL: XM-4436 When calling please have the following product information available: Model Name: XM-4436 Date Mfg.: PO #: Serial #: Model Name Decal Location... -
Page 4: Assembly
Assembly NOTE: Hand tighten bolts and locknuts until machine is fully assembled. STEP 1 Insert Wheels (9) into the Weight Support (1) with two M10X45 bolts (15) and two M10 Locknuts(19). Do not overtighten the Bolts and Locknuts, the wheels need to run easily. - Page 5 Assembly NOTE: Hand tighten bolts and Locknuts until machine is fully assembled. STEP 3 Attach Arm Curl Pad (8) to Arm Support (2) with two M10 x 25 Bolts (14). STEP 4 Attach Seat Pad (7) to Seat Frame (3) with two M10 Washers (13) and two M10X70 Bolts(17).
-
Page 6: Parts List
Parts List XM-4436 Parts List Key NO. Part No. Description 204044301503 Weight Support 204044303503 Arm Support 204044307503 Seat Frame 204044302503 Rear Base 802900300002 POP Pin 202035523006 Bumper 307040000072 Seat Pad 307040000073 Arm Curl Pad 307990000048 Wheel 307010000042 Square End Foot F50... -
Page 7: Exploded View
Exploded View... -
Page 8: Warranty Information
Warranty XMARK FITNESS LIMITED LIFETIME WARRANTY THIS PRODUCT IS INTENDED FOR RESIDENTIAL USE ONLY This Warranty applies only in the United States and Canada to products manufactured or distributed by XMARK Fitness under the XMARK Fitness brand name. This product is backed by a lifetime residential warranty, excluding only expendable parts such as paint, finish and vinyl. - Page 9 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
