Mark Fitness XM-3151 Owner's Manual

Olympic plate tree
Hide thumbs

Advertisement

Quick Links

Download this manual
XM-3151
OLYMPIC PLATE TREE
Owner's Manual
8/09

Advertisement

loading

Related Manuals for Mark Fitness XM-3151

Summary of Contents for Mark Fitness XM-3151

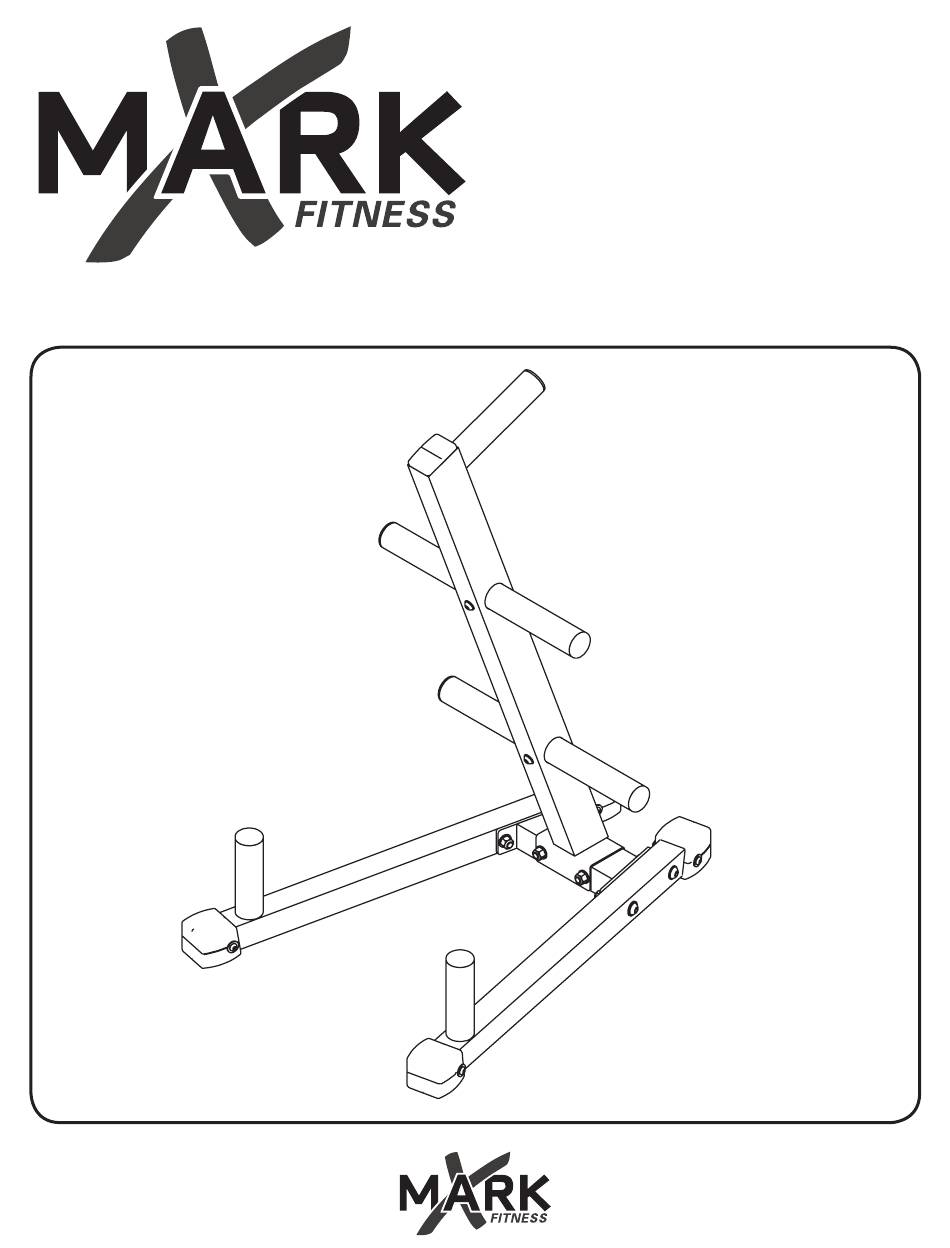

  • Page 1 XM-3151 OLYMPIC PLATE TREE Owner’s Manual 8/09...

  • Page 2: Table Of Contents

    Table Of Contents Important Safety Information Before You Start Assembly Parts List Exploded View Warranty Information...

  • Page 3: Important Safety Information

    Important Safety Information NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. SAFETY INFORMATION WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre- existing health problems.

  • Page 4: Before You Start

    7501 Trammel Drive Shreveport, LA 71108 QUESTIONS? CALL 1-800-719-4605 Monday-Friday 8:30 a.m.-5:00 p.m. XMARK FITNESS SERIES (Central Standard Time) MODEL: XM-3151 When calling please have the following product information available: Model Name : Date Mfg.: Serial # Model Name Decal Location...

  • Page 5: Assembly

    Assembly...
  • Page 6 Assembly NOTE: Hand tighten bolts and nylon lock nuts until machine is fully assembled. Step 1 Connect each Frame Base (#3) to the Cross Base (#1) using: • four M12*75 Button Head Cap Screws (# 7) • four M12 Nylon Lock Nuts (#11) •...
  • Page 7 Assembly NOTE: Hand tighten bolts and nylon lock nuts until machine is fully assembled. Step 2 Connect Frame Upright (#2) to the Cross Base (#1) using: • two M12*100 Button Head Cap Screw (#8) • two M12 Nylon Lock Nut (#11) •...

  • Page 8: Parts List

    Parts List XM-3151 Parts List Ref # Part # Description P00513 Cross Base XM-3151 P00511 Frame Upright XM-3151 P00313 Frame Base XM-3151 P00512 Weight Bar XM-3151 P00153 Foot Cap, Right 50.8 XM Series P00154 Foot Cap, Left 50.8 XM Series...

  • Page 9: Exploded View

    Exploded View...

  • Page 10: Warranty Information

    XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
