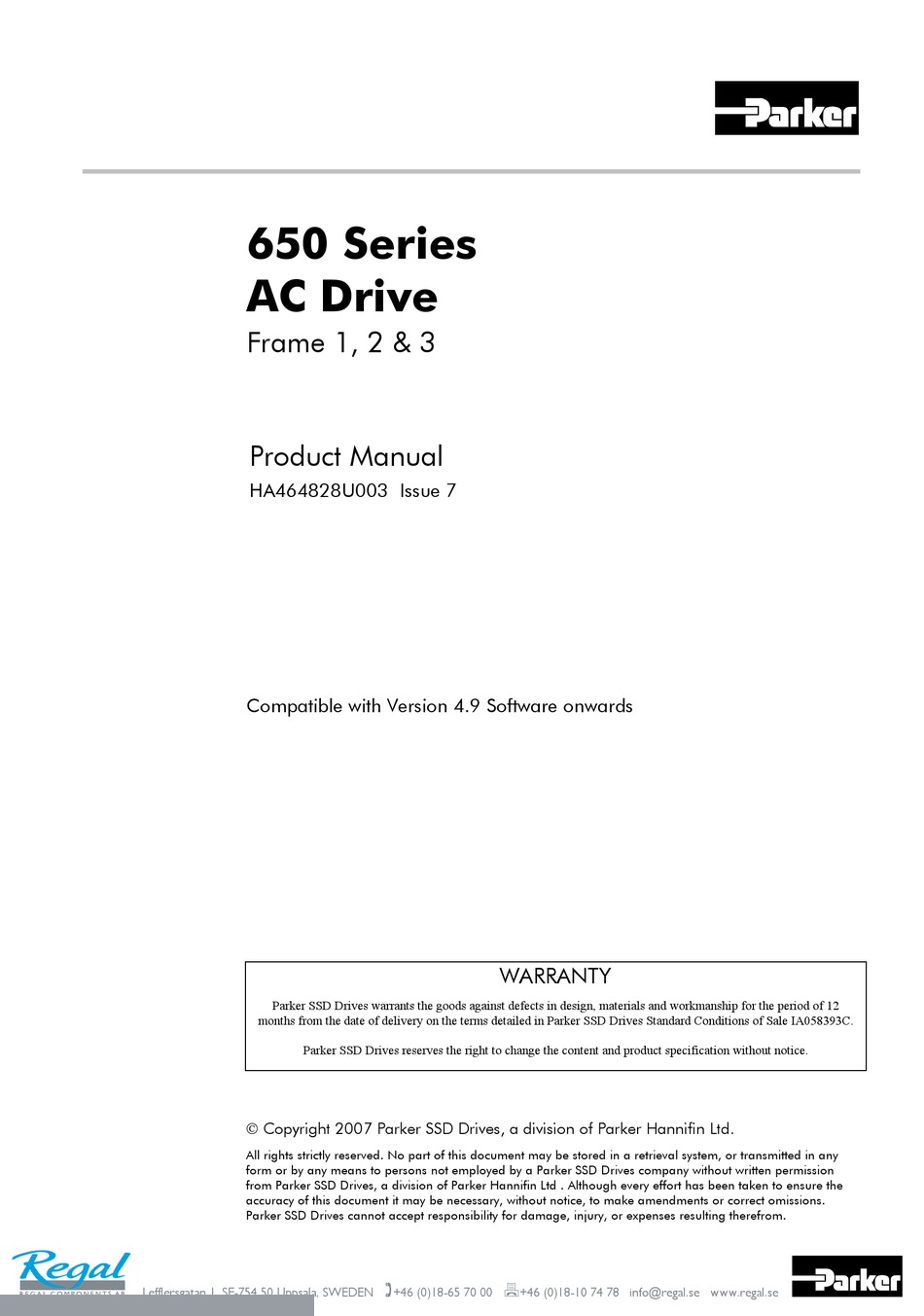

Parker 650 Series Product Manual

Frame 1, 2 & 3
Hide thumbs Also See for 650 Series:
Table of Contents

Advertisement

Quick Links

650 Series
AC Drive
Frame 1, 2 & 3
Product Manual
HA464828U003 Issue 7
Compatible with Version 4.9 Software onwards
Parker SSD Drives warrants the goods against defects in design, materials and workmanship for the period of 12
months from the date of delivery on the terms detailed in Parker SSD Drives Standard Conditions of Sale IA058393C.
Parker SSD Drives reserves the right to change the content and product specification without notice.
© Copyright 2007 Parker SSD Drives, a division of Parker Hannifin Ltd.
All rights strictly reserved. No part of this document may be stored in a retrieval system, or transmitted in any
form or by any means to persons not employed by a Parker SSD Drives company without written permission
from Parker SSD Drives, a division of Parker Hannifin Ltd . Although every effort has been taken to ensure the
accuracy of this document it may be necessary, without notice, to make amendments or correct omissions.
Parker SSD Drives cannot accept responsibility for damage, injury, or expenses resulting therefrom.
Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN
WARRANTY
+46 (0)18-65 70 00
+46 (0)18-10 74 78 info@regal.se www.regal.se

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 650 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Parker 650 Series

Summary of Contents for Parker 650 Series

  • Page 1 Parker SSD Drives company without written permission from Parker SSD Drives, a division of Parker Hannifin Ltd . Although every effort has been taken to ensure the accuracy of this document it may be necessary, without notice, to make amendments or correct omissions.
  • Page 2 Requirements IMPORTANT: Please read this information BEFORE installing the equipment. Intended Users This manual is to be made available to all persons who are required to install, configure or service equipment described herein, or any other associated operation. The information given is intended to highlight safety issues, EMC considerations, and to enable the user to obtain maximum benefit from the equipment.
  • Page 3 Hazards DANGER! - Ignoring the following may result in injury 1. This equipment can endanger life by exposure to 5. For measurements use only a meter to IEC 61010 (CAT rotating machinery and high voltages. III or higher). Always begin using the highest range. CAT I and CAT II meters must not be used on this 2.
  • Page 4 650 Quick Start Mount the drive vertically in a lockable cubicle. Is the drive to operate in Local (using the keypad) or Remote Control? If Remote Control, make Control Connections. Make Power Connections. Power-on and follow the Quick Set-Up procedure. Apply a small setpoint.

  • Page 5: Table Of Contents

    Contents Contents Page Chapter 1 G E T T I N G T A R T E D Introduction ....................1-1 Equipment Inspection ....................1-1 Storage and Packaging ...................1-1 About this Manual ..................1-1 Software Product Manual ..............1-1 • Chapter 2 A V E R V I E W O F T H E R I V E Component Identification ................
  • Page 6 E P A I R Routine Maintenance..................8-1 Repair ......................8-1 Saving Your Application Data ..................8-1 Returning the Unit to Parker SSD Drives..............8-1 Disposal .........................8-1 Chapter 9 T E C H N I C A L P E C I F I C A T I O N S Understanding the Product Code ................9-1...

  • Page 7: Etting

    ETTING TARTED Introduction The 650 Series AC Drive provides simple, compact, and low-cost speed control for 3-phase induction motors. It operates as an Open-loop Inverter (V/F Fluxing). This manual describes the low-power end of the 650 product range for the following motor...

  • Page 8: Rive

    Product rating label Terminal cover Motor thermistor terminals Power terminals RS232 port - P3 (optional) Motor cable screen clamp 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 9: Nstalling The

    Be aware that adjacent equipment may generate heat and also have clearance requirements. Provided the minimum clearance for ventilation is maintained, 650 drives may be mounted side-by-side. 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 10: Electrical Installation

    The drive is suitable for use with both earth referenced supplies (TN) and non- earth referenced supplies (IT) when fitted with an internal ac supply EMC filter. 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 11: Connection Diagram

    8 Re-fit the terminal cover. fitted with an internal ac supply EMC filter. IMPORTANT: Note that the 650 unit must be permanently earthed using two independent protective earth/ground incoming supply conductors. 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 12: Control Wiring Connections

    0 to 240Hz Reference Supply protective earth (PE). This terminal must be connected to a protective (earth) Terminal ground for permanent earthing. 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 13: Terminal Block Acceptance Sizes

    Insert a flat-bladed screwdriver, maximum blade size 3.5mm. The cage provides the correct force for a secure connection. IMPORTANT: DO NOT lever or turn the screwdriver. 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 14: Optional Equipment

    • the (optional) RS232 (P3) port located under the terminal cover • A standard P3 lead, Parker SSD Drives' Part Number CM057375U300, which is used to connect the Keypad to the drive. Two self-tapping screws are provided with the Keypad. Remove the protective film from the gasket.

  • Page 15: Fitting The Remote 6521/6901/6911 Keypad

    690+ products, may be remote mounted and connected to the 650V drive in the same way. 6901 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 16: Rs485/Rs232 Communication Module

    57.6kbaud 57.6kbaud 2: 1 master and 1 slave Maximum Number of 32 including slaves and masters Units only 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 17 Application" - SET::SERL Menu, parameters SE01 to SE08. For Tag number information refer to the 650 Software Product Manual, available on the Parker SSD Drives website: www.SSDdrives.com. Note: This Option can only be used on drives using software version 4.1 or higher.

  • Page 18: Line Choke

    650 Frame 2, 3-phase, 400V, 0.37kW/0.5Hp 4.88 110 69 2.1/ * dimension is dependent of the air gap 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 19: Perating The

    Note: If during the start-up routine the display shows either an alarm (indicated by the letter “A”) or a flashing Warning message, A typical alarm refer to Chapter 7: “Trips and Fault Finding”. 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 20: Local Control Operation

    The drive's default parameters will operate effectively under most circumstances, however you may wish to refer to Chapter 6 to tune the drive to your system. 650 Series AC Drive  ...

  • Page 21: He Eypad

    Navigation – Press and hold to toggle between Local and Stop Remote Control modes (refer to page 5.4) Trip Reset – Resets trip condition allowing drive to resume operation 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00...

  • Page 22: Display Indications

    Vac (rms) x √2 = dc link Volts DC LINK VOLTS (when motor stopped) MOTOR CURRENT The current load value in Amps 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 23: The Menu System

    It can also be displayed by pressing the E key for 2 seconds when at the top of the MMI tree, Menu Level 1. SERIAL MENU MISCELLANEOUS SETUP MENU 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00...

  • Page 24: How To Change A Parameter Value

    REMOTE Hold this key down until the display spells Release the key to display LOCAL the Local Setpoint 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 25: Password Protection

    (SET::SETP::ST99) and press the key. This toggles full or partial menu detail. The default setting of 0 provides partial menu detail. Set the parameter to 1 for full menu detail. 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 26: Rogramming

    The time taken for the 650 output frequency to 0.0 to 3000.0s product ramp down from MAX SPEED to zero code dependent 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 27 11 is changed from LINEAR LAW to FAN Drives' manuals. LAW, 12 is set to 1 (NORMAL DUTY) 12 can be changed independently 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 28 This parameter represents an overall scaling factor -3.0000 to 3.0000 1.0000 which is applied after the PID positive and negative limit clamps 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 29 0= FALSE ABSOLUTE (not absolute) 100% 1= TRUE (absolute) CLAMP OUTPUT AOUT 1 VALUE -300.0 to 300.0% 0.0% 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 30 DISPLAY Disables the display (keypad) trip LOOP (KEYPAD) DC LINK RIPPLE Disables the DC link ripple trip LOOP 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 31 MODE follow a reference: Proportional : minimum limit, 1=LINEAR (used by Linear : between minimum and maximum. the 601 product) 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 32 DETAILED MENUS Selects Full menu detail when TRUE. The additional 0=FALSE parameters in the Full menus are indicated in this 1=TRUE table by 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 33: Configuring Terminal 10 (Digital Input/Output)

    501) This is used to adjust the basic response of the closed loop control system. The PI error is multiplied by the Proportional Gain to produce an output. 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 34: Auto Restart

    (5 minutes or 4 x AUTO RESTART DELAY, whichever is the longer); or after a successful manual or remote trip reset; or by removing the Run signal (Terminal 7, DIN1). Refer to Chapter 7: "Trips and Fault Finding" - Hexadecimal Representation of Trips. 650 Series AC Drive  ...

  • Page 35: Skip Frequencies

    Skip band Skip Frequency Setpoint Drive Frequency Frequency 2 Setpoint Frequency 1 Drive Frequency Frequency 1 Frequency 2 Setpoint 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 36: Minimum Speed Mode

    Function Block 50Hz Operation 60Hz Operation BASE FREQUENCY MOTOR DATA 1159 50Hz 60Hz MAX SPEED REFERENCE 50Hz 60Hz 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 37: Power Dependent Parameters

    10.0 s 10.0 s 10.0 s DECEL TIME REFERENCE RAMP 10.0 s 10.0 s 10.0 s 10.0 s 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 38: Rips And

    DECEL TIME time too short The brake resistor is open circuit UNDERVOLTAGE DC link low trip: Supply is too low/power down 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 39 Prolonged operation of the motor at low speed without • forced cooling • Break in motor thermistor connection 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 40 Error Configuration Data Press the key to accept the default configuration. If Error persistent, return unit to factory 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 41: Hexadecimal Representation Of Trips

    , can be disabled using the keypads in the TRIPS menu. Other trips, as indicated, can be disabled over the Comms. 6511 6901 6521 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00...

  • Page 42: Fault Finding

    Motor runs and stops Motor becomes jammed Stop the drive and clear the jam Open circuit speed reference Check terminal potentiometer 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 43: Aintenance And

    Repair There are no user-serviceable components. IMPORTANT: MAKE NO ATTEMPT TO REPAIR THE UNIT - RETURN IT TO PARKER SSD DRIVES. Saving Your Application Data In the event of a repair, application data will be saved whenever possible. However, we advise you to make a note of your application settings before returning the unit.

  • Page 44: S P E C I F I C A T I O N S

    Class A - 230V product, 2.2 to 4.0kW Class B - 230V product, 0.25 to 1.5kW Two digits specifying the livery: 00 = Standard Parker SSD Drives Livery 05 = Distributor Livery (01-04, 06-99 – Defined customer liveries) Characters speciifying the use of the Keypad:...

  • Page 45: Catalog Number (North America)

    One character specifying the use of the Internal RFI Filter: 0 = Not fitted F = Internal Supply Filter fitted: Class A - 400V product Class B - 230V product 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00...

  • Page 46: Environmental Details

    380-460V 3φ product -10000A User Relay Terminals RL1A, RL1B. Maximum Voltage 250Vac Maximum Current 4A resistive load Sample Interval 10ms 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 47: Electrical Ratings

    12.0 7.5/10 23.6 16.0 * The Frame 3, 2.2kW drive is capable of operating on a 1-phase or 3-phase supply. 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 48: Analog Inputs/Outputs

    Both ends Drive end only Connection 300 metres Output Choke maximum * Maximum motor cable length under any circumstances 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 49: Internal Dynamic Braking Circuit

    (where fitted) allow easy connection to an external resistor. These resistors should be mounted on a heatsink (back panel) and covered to prevent injury from burning. Recommended Brake Resistors The following brake resistors are avialable from Parker SSD Drives: Brake Resistor Value : Frame 2 : 200Ω, 100W - CZ467714;...

  • Page 50: Supply Harmonic Analysis (230V Filtered)

    RMS Current (A) 10.3 Total RMS Current (A) 10.9 12.5 THD (V) % 0.3559 0.0972 0.5426 0.5733 0.6277 0.7055 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 51: Supply Harmonic Analysis (400V Filtered)

    Total RMS Current (A) 12.0 15.8 20.8 THD (V) % 0.1561 0.2158 0.2776 0.3859 0.4393 0.5745 0.6994 0.8111 0.9899 1.2110 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 52: Supply Harmonic Analysis (230V Unfiltered)

    RMS Current (A) Total RMS Current (A) 11.7 15.3 THD (V) % 0.5633 0.8016 1.0340 1.0944 1.4611 1.7778 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 53: Supply Harmonic Analysis (400V Unfiltered)

    Total RMS Current (A) 12.4 16.0 20.6 THD (V) % 0.1634 0.2209 0.2817 0.3569 0.4444 0.5886 0.7107 0.8896 1.0127 1.2138 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 54: Ertification For The

    Listed (JDRX) renewable cartridge fuses, Class H, are installed upstream of the drive. Motor Base Frequency The motor base frequency rating is 240Hz maximum. Field Wiring Temperature Rating Use 75°C Copper conductors only. 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00...
  • Page 55 Input Current @ 10kA Supply Fuse Rating (A) (kW/hp) 10 x 38mm 3.0/4 11.1 4.0/5 13.9 5.5/7.5 18.0 7.5/10 23.6 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...

  • Page 56: European Directives And The Ce Mark

    European Directives and the CE Mark CE Marking for Low Voltage Directive When installed in accordance with this manual, the 650 Series AC Drive is CE marked by Parker SSD Drives in accordance with the low voltage directive (S.I. No. 3260 implements this LVD directive into UK law).

  • Page 57: Certificates

    2004/108/EC 2006/95/EC Directive when the low voltage We Parker SSD Drives, address as below, We Parker SSD Drives, address as below, the unit is used directive for declare under our sole responsibility that the declare under our sole responsibility that the...
  • Page 58 2004/108/EC 2006/95/EC Directive when the low voltage We Parker SSD Drives, address as below, We Parker SSD Drives, address as below, the unit is used directive for declare under our sole responsibility that the declare under our sole responsibility that the...

  • Page 59: Erial

    Connection to the P3 Port IMPORTANT: The drive MUST be earthed. Failure to do so could damage your communications ports. The port is an un-isolated RS232, 19200 Baud. Contact Parker SSD Drives for further information. The P3 port is located under the terminal cover and is used only by the remote-mounted RS232 Keypad.

  • Page 60: Pplications

    Chapter 1 "Programming Your Application". Key to Application Diagrams normally open contact (relay) normally open push-button 2-position switch normally closed push-button 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 61 12-2 Applications Application 1 : Basic Speed Control (default) 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 62 Setpoint default source = 4-20mA RL1A HEALTH i.e. 0V = not healthy User Relay DOUT3 RELAY SOURCE RL1B 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 63 12-4 Applications Application 2 : Auto/Manual Control 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 64 Setpoint = 4-20mA RL1A HEALTH i.e. 0V = not healthy User Relay DOUT3 (relay) RELAY SOURCE RL1B 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 65 12-6 Applications Application 3 : Preset Speeds 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 66 HEALTH i.e. 0V = not healthy DOUT3 (relay) RELAY SOURCE User Relay RL1B Preset Speed Truth Table DIN4/DOUT2 DIN3 DIN2 Preset 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 67 12-8 Applications Application 4 : Raise/Lower Trim 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 68 Not Used AIN1 Not Used RL1A DOUT3 (relay) RELAY SOURCE HEALTH i.e. 0V = not healthy User Relay RL1B 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 69 12-10 Applications Application 5 : PID 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
  • Page 70 = 4-20mA RL1A DOUT3 (relay) RELAY SOURCE HEALTH i.e. 0V = not healthy User Relay RL1B 650 Series AC Drive   Lefflersgatan 1, SE-754 50 Uppsala, SWEDEN +46 (0)18-65 70 00 +46 (0)18-10 74 78 info@regal.se www.regal.se...
